The Automatic Oil Filter box packing and Labeling Line (Model: ES-MY-ZHJ-01) is a professional integrated automated packaging system independently developed for oil filter manufacturing industries. Serving as a high-performance automotive oil filter labelling and packaging machine, this all-in-one automation equipment combines carton packaging and automatic labeling functions into one compact production line. Tailored for standardized oil filters with the dimension of 70 × 70 × 75 mm, the Automatic Oil Filter box packing and Labeling Line realizes unmanned continuous operation from carton feeding to finished product output. Equipped with high-performance servo motors and durable pneumatic components, the equipment ensures stable long-term operation, effectively solving the problems of high labor cost, low packaging efficiency and uneven labeling quality in traditional manual packaging processes. It is an ideal automated packaging solution for medium and large-scale oil filter production factories.

Youtube video :

Product Specifications

Below are the detailed technical parameters of the Automatic Oil Filter box packing and Labeling Line for your production reference:

Product Advantages

Compared with single packaging equipment and manual operation, the Automatic Oil Filter box packing and Labeling Line has obvious competitive advantages in industrial production:

Integrated One-piece Production: As a multifunctional Automatic car oil filter packing machine, the Automatic Oil Filter box packing and Labeling Line integrates oil filter boxing and box labeling procedures. There is no need for manual transfer between processes, realizing one-stop automatic production and greatly simplifying the production process.

Intelligent Missing Detection System: Built-in high-sensitivity sensors monitor the interior of cartons in real time. Once an empty box without an oil filter is detected, the machine will automatically stop and send an alarm to avoid unqualified products from flowing into the market.

Ultra-high Labeling Accuracy: This labeling equipment of the production line achieves ±1 mm labeling accuracy and ±0.5 mm stop accuracy. The labels are flat and neatly pasted without deviation, meeting high-standard packaging requirements.

Adjustable Efficient Production: The stable hourly output reaches 600-800 pieces. The running speed of the Automatic Oil Filter box packing and Labeling Line can be adjusted freely according to production schedules to adapt to different production volume demands.

Labor-saving & Compact Design: Only one worker is required to complete auxiliary carton feeding work. The compact machine structure covers a small area, which saves factory space and reduces labor input costs.

Product Details

As a practical car oil filter labeling and box packing machine, the Automatic Oil Filter box packing and Labeling Line adopts a streamlined assembly line design with smooth and orderly operation steps. The complete working flow is as follows:

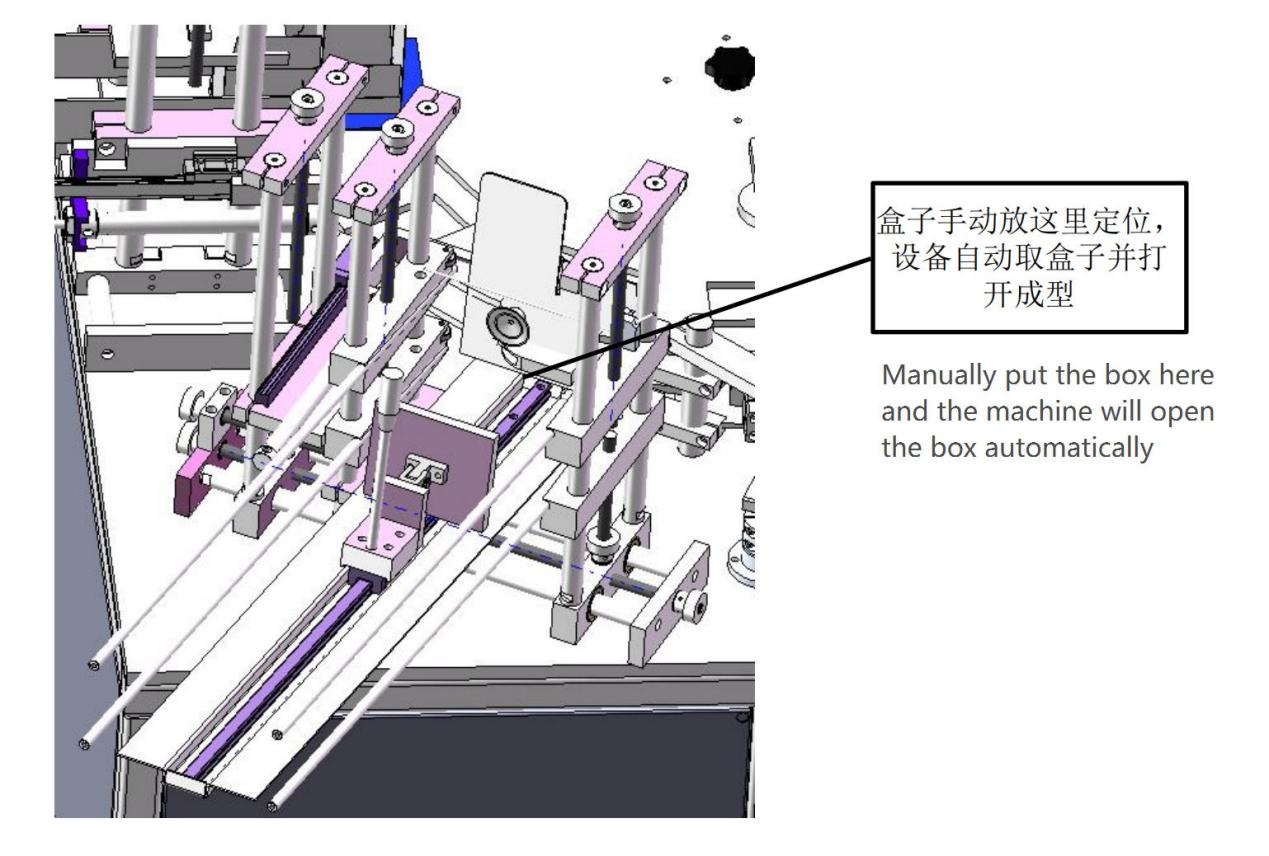

1. Manual Box Loading & Automatic Opening: Workers manually place folded cartons at the feeding station. The equipment automatically grabs and unfolds the cartons to complete box shaping, realizing standardized box opening.

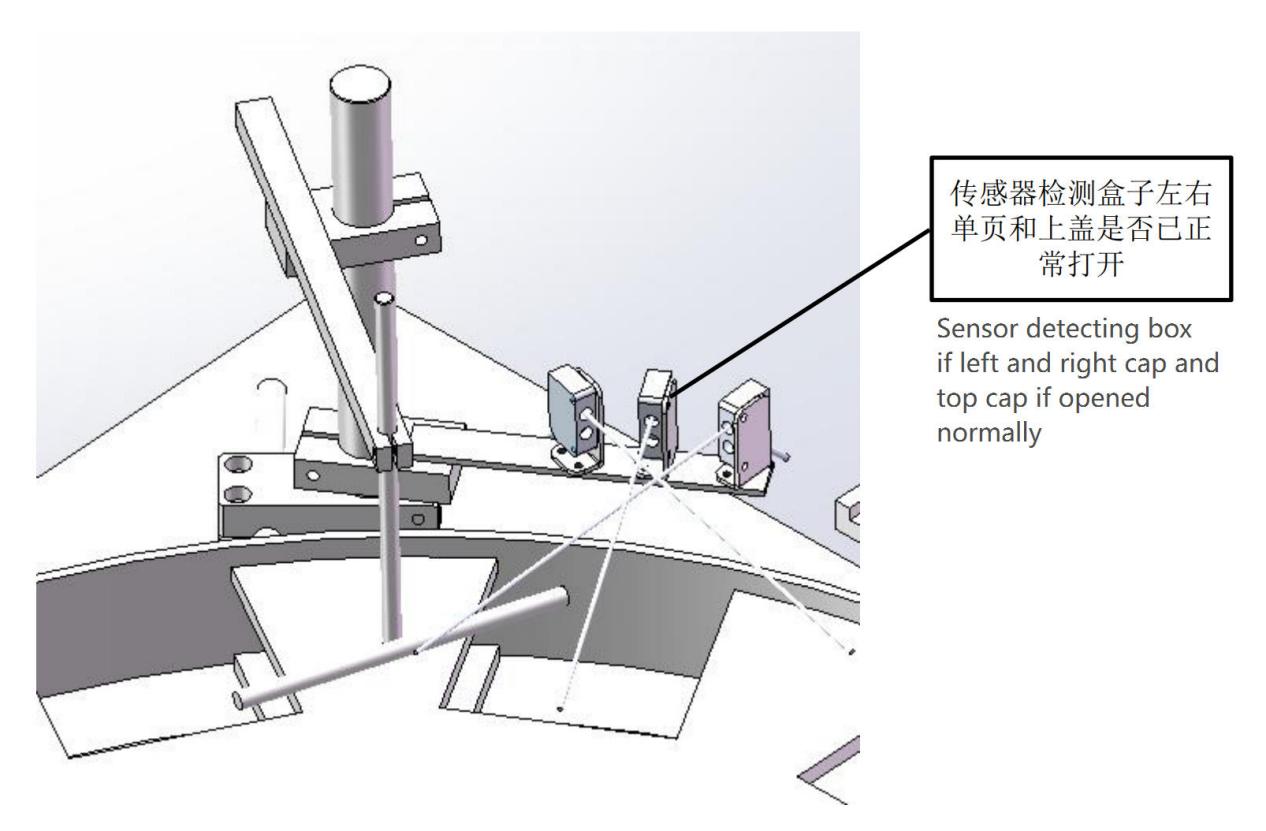

2. Box Flap Detection: High-precision sensors detect the opening status of the left, right and top flaps of the carton to prevent jamming and product damage during subsequent feeding.

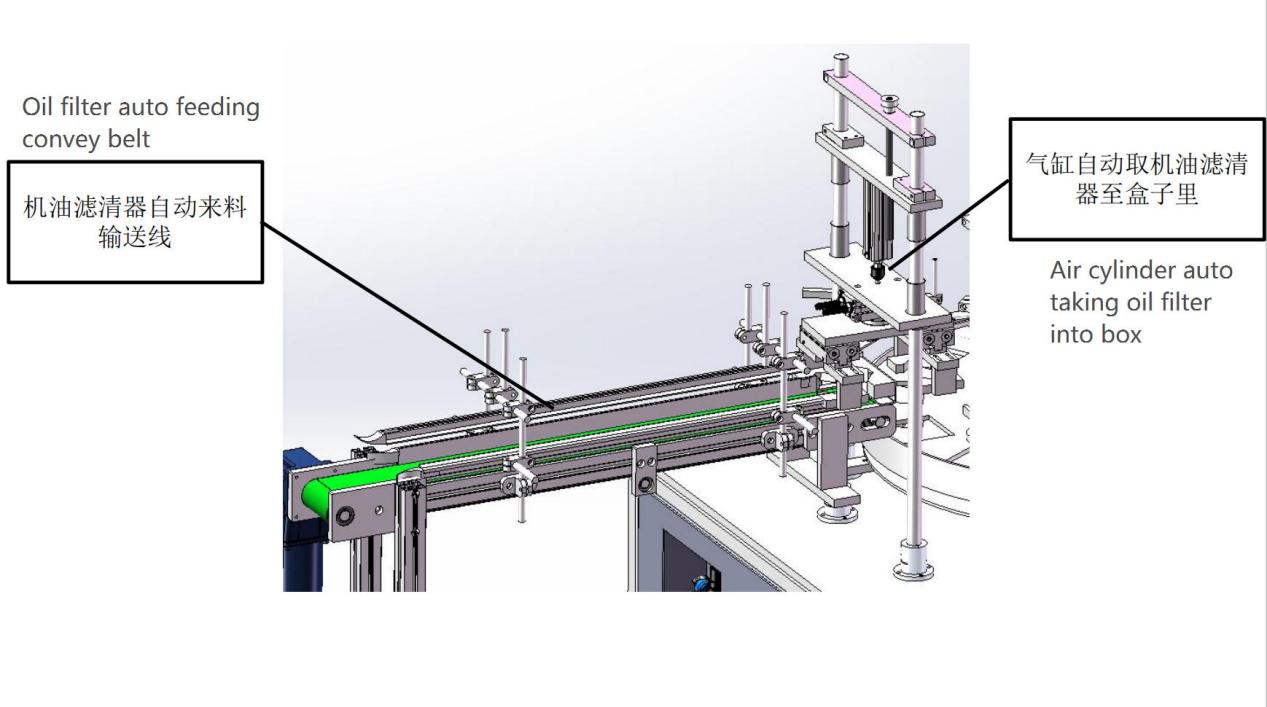

3. Automatic Oil Filter Feeding & Insertion: The conveyor belt automatically transports oil filters, and the pneumatic manipulator accurately grabs and puts the oil filters into the shaped cartons.

4. Quality Inspection & Alarm Protection: The detection sensor checks whether each carton is equipped with an oil filter. Empty boxes will trigger an automatic shutdown and alarm function to ensure 100% product qualification rate.

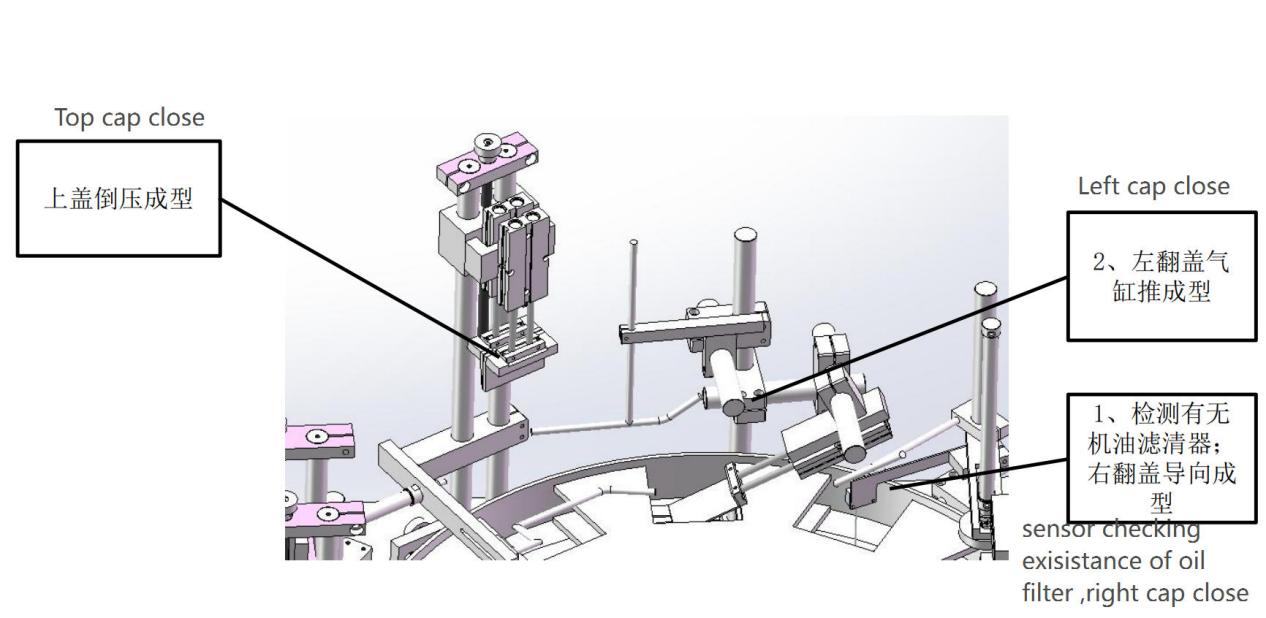

5. Automatic Box Sealing: The machine closes the right flap, left flap and top cover of the carton in sequence to complete the fully sealed packaging of the product.

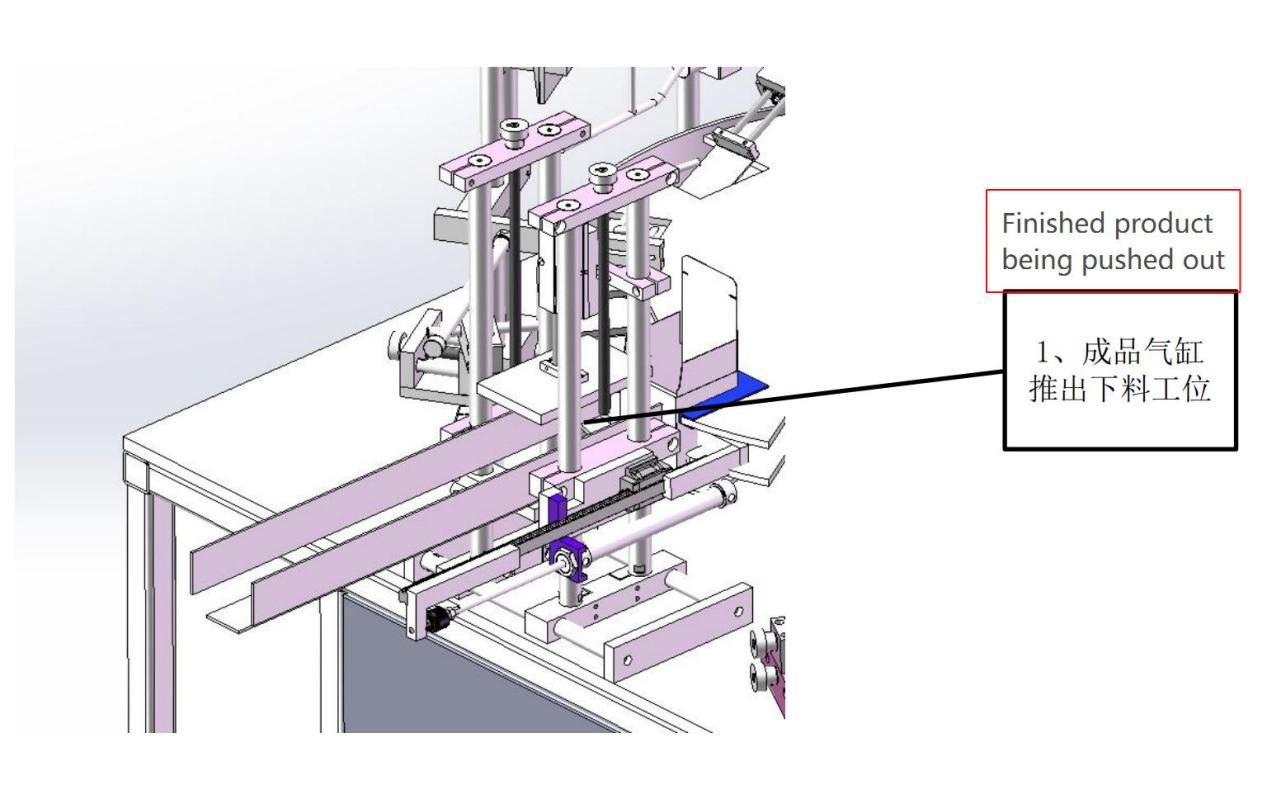

6. Finished Product Discharge: The sealed cartons are automatically pushed out to the labeling station by the cylinder to realize seamless connection of processes.

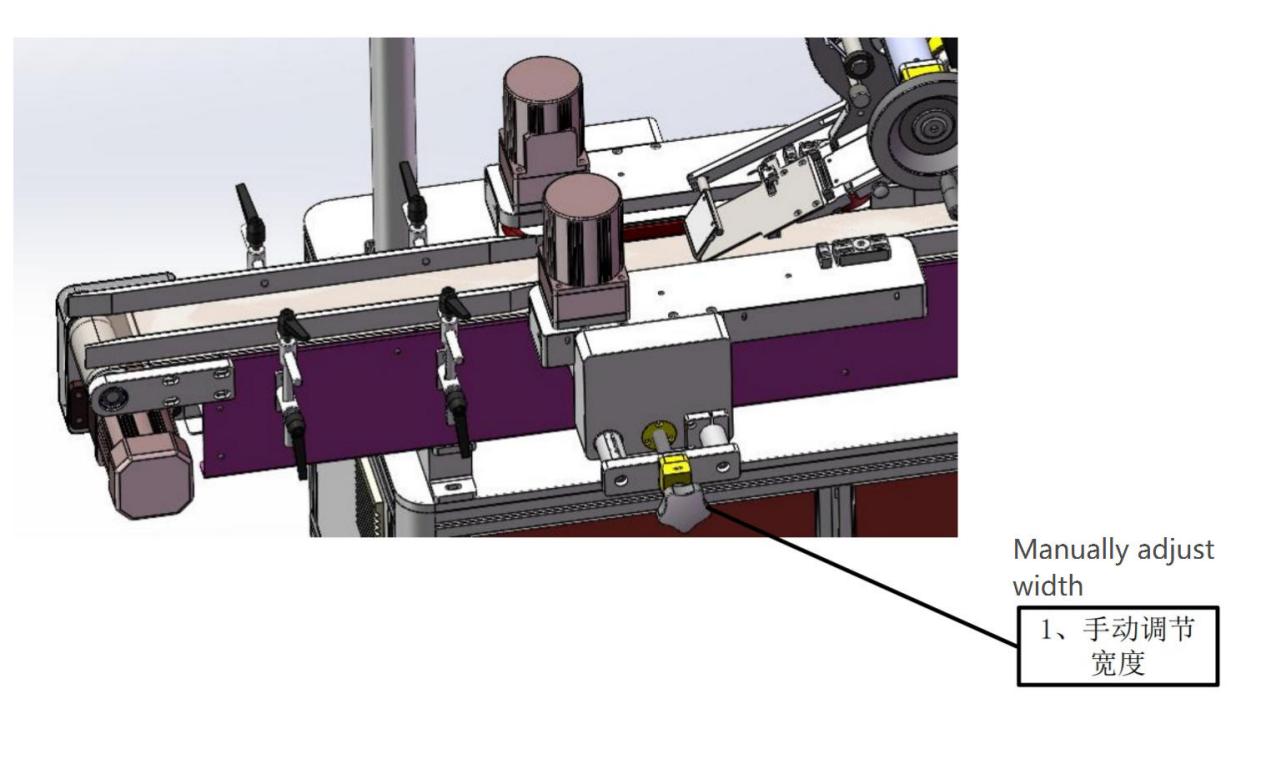

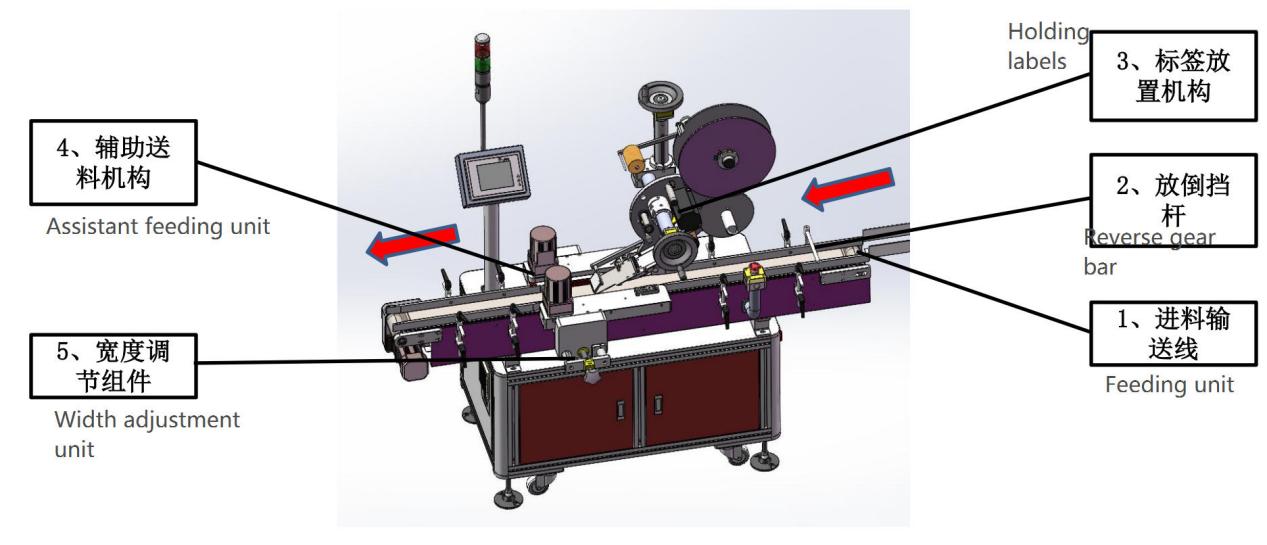

7. Intelligent Automatic Labeling: The labeling unit is equipped with a label winding frame, feeding tensioning device and bottom film recovery structure. It supports manual width adjustment to adapt to different carton sizes, and automatically completes labeling and cutting.

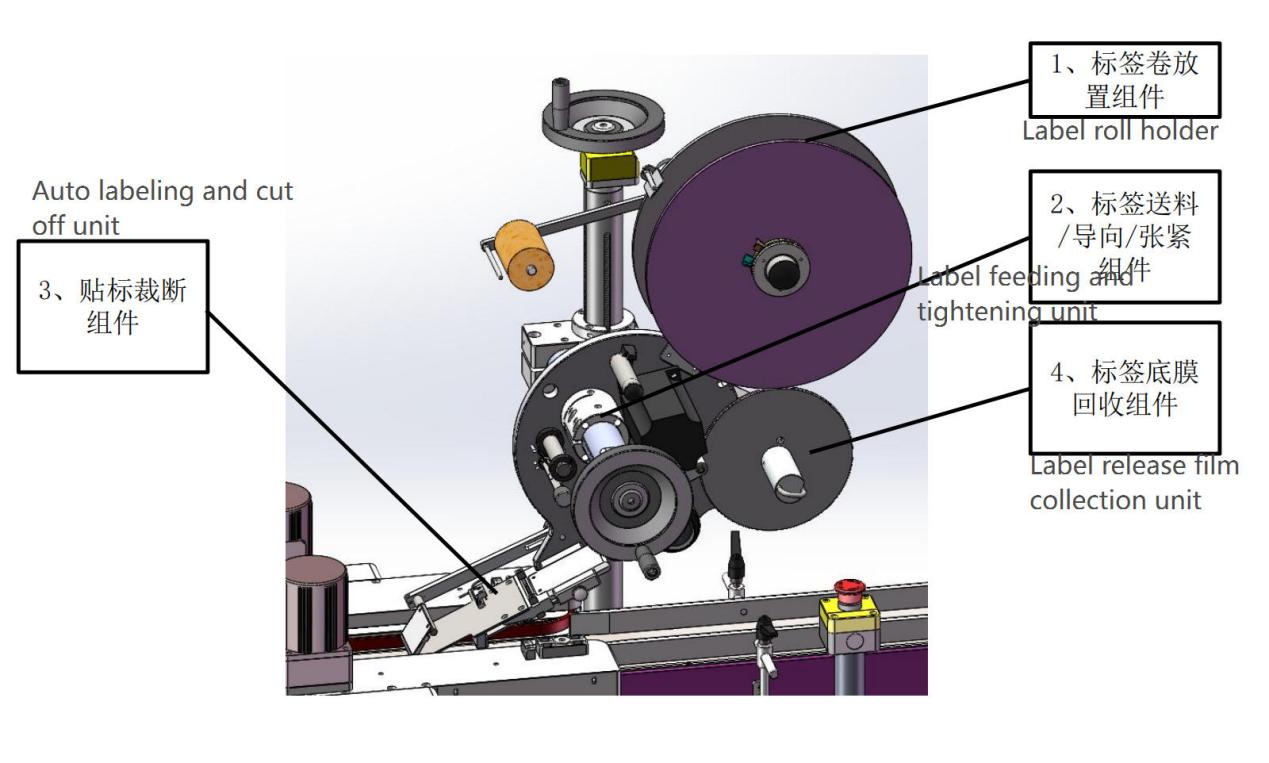

8, Labeling unit , the labeling unit consists of label release film collection unit to collect label release film and label holder to hold label rolls , automatic stick label units and cut off label after sticking onto the box

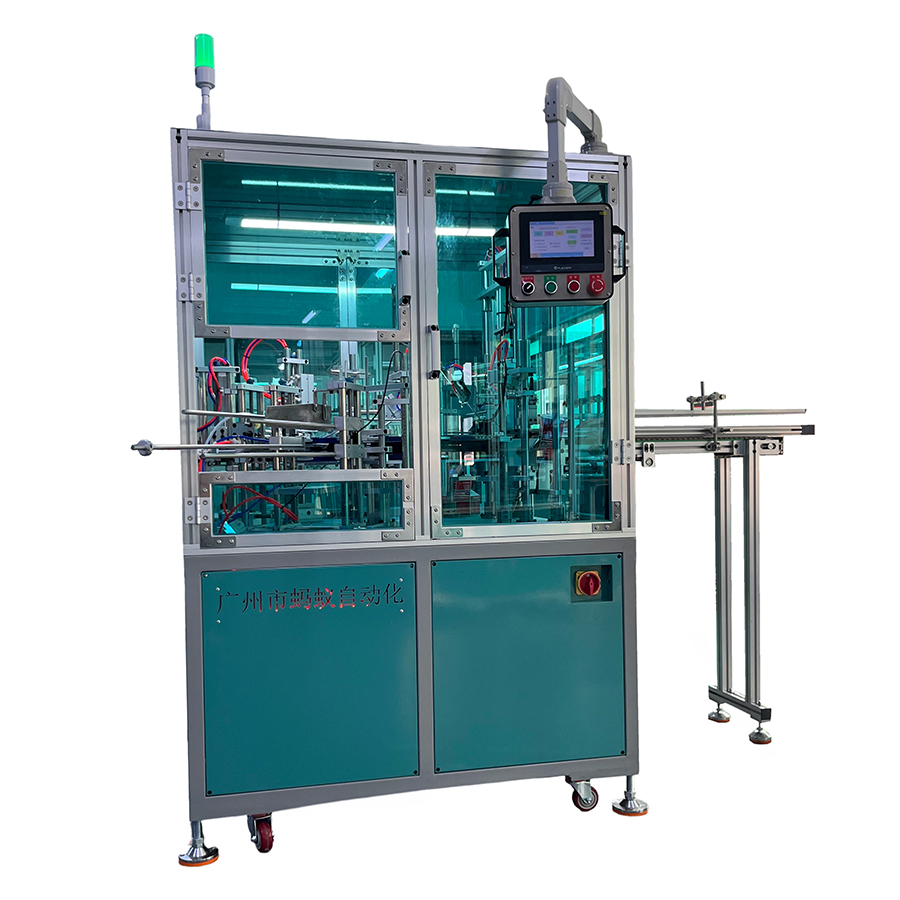

Front view

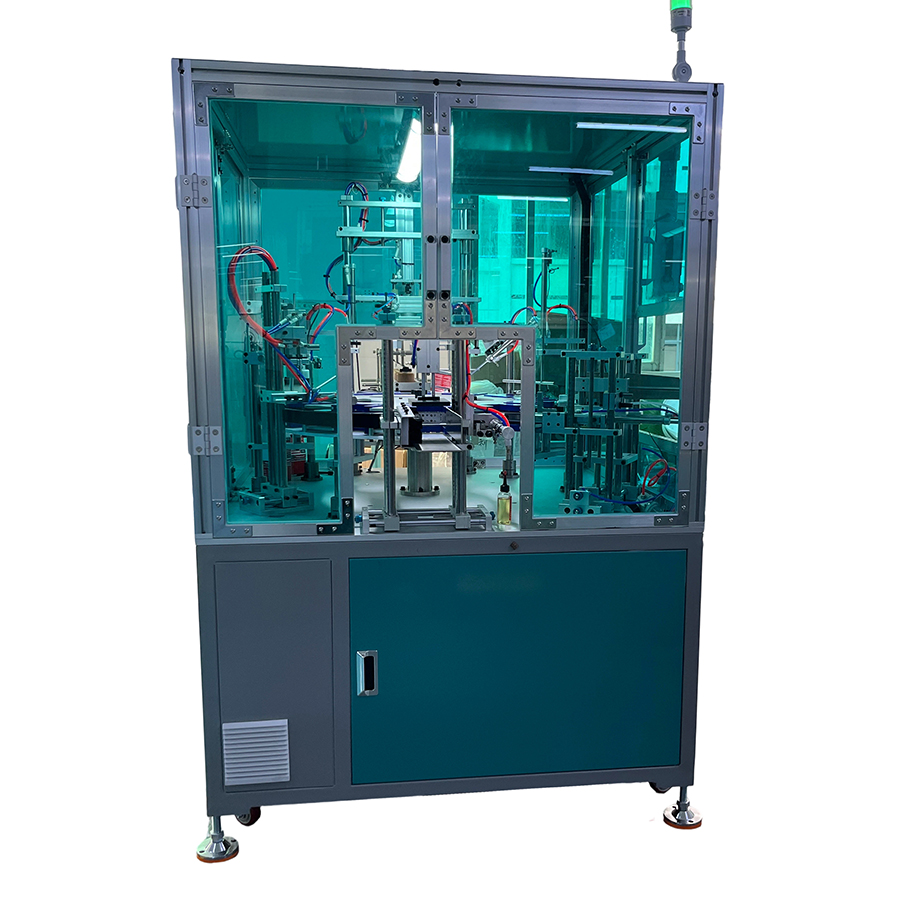

Side view

Side view

Application Scenarios

The Automatic Oil Filter box packing and Labeling Line is specially designed for mass production and packaging of automotive oil filters. This automotive oil filter labelling and packaging machine is widely applicable to medium and large auto parts manufacturing factories, filter production enterprises and other processing manufacturers. With stable performance, simple operation and low maintenance cost, this automated production line is the best packaging automation equipment for oil filter manufacturers to upgrade production lines and improve product competitiveness.
