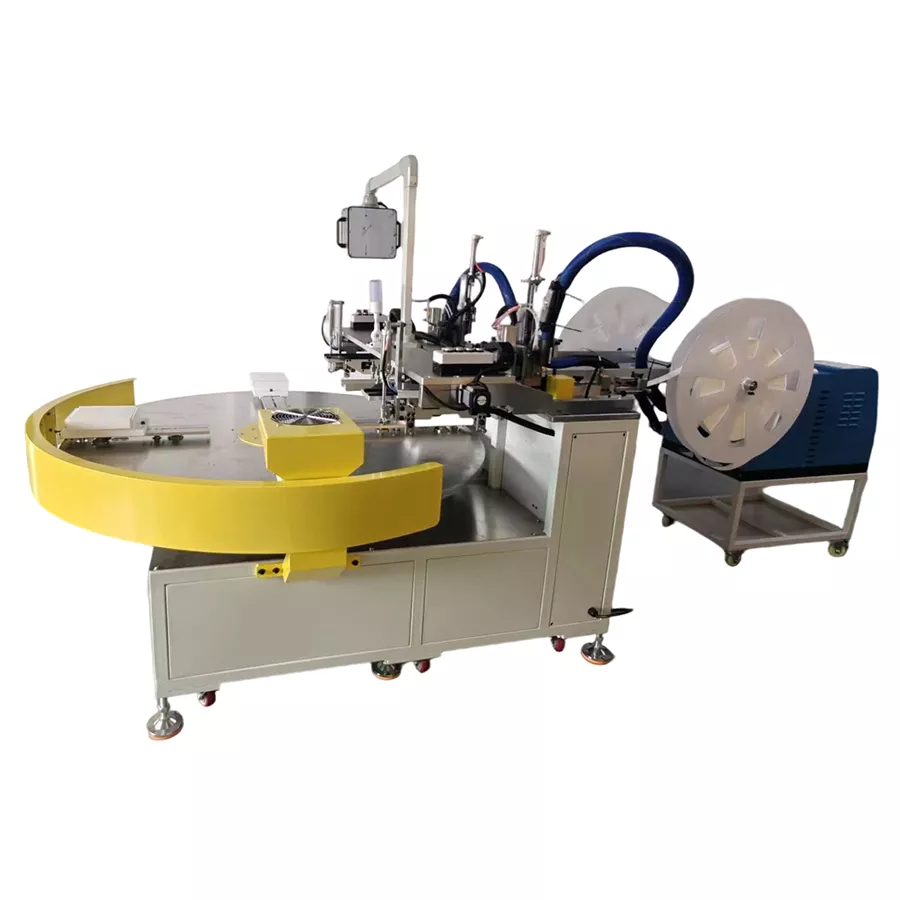

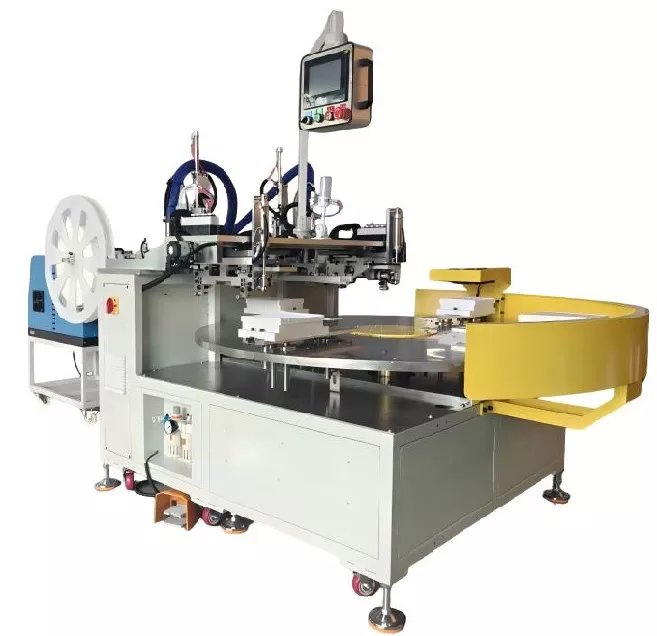

Car air conditioning filter double-side Edge bonding machine MY-LW-05

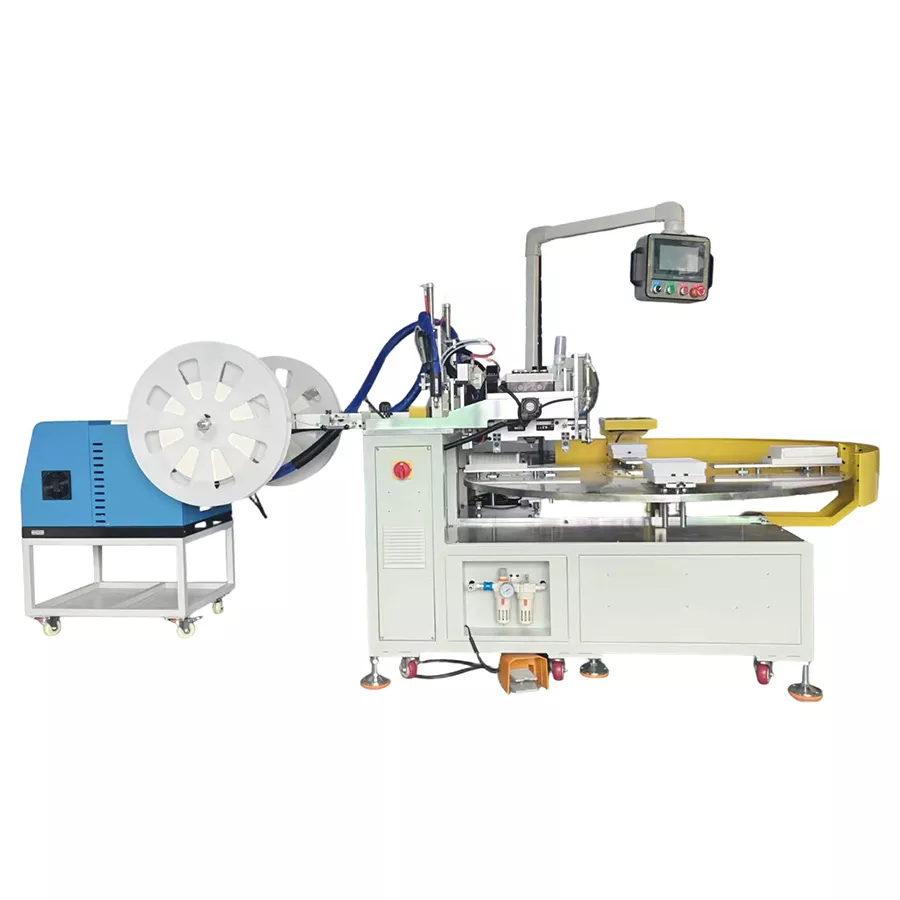

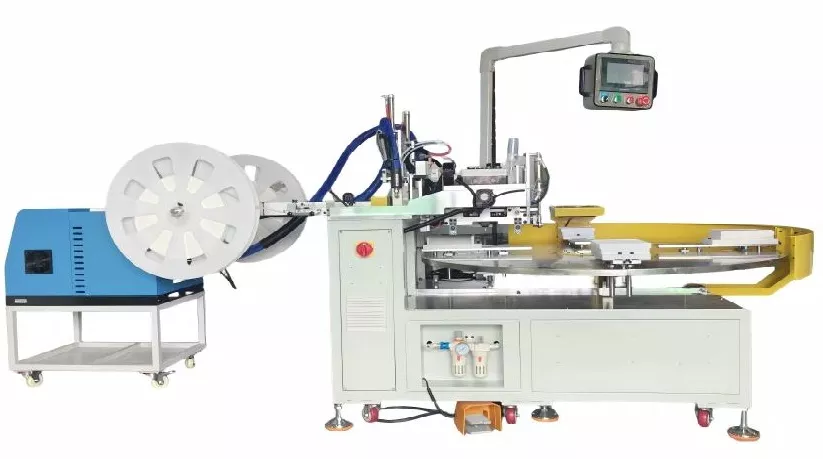

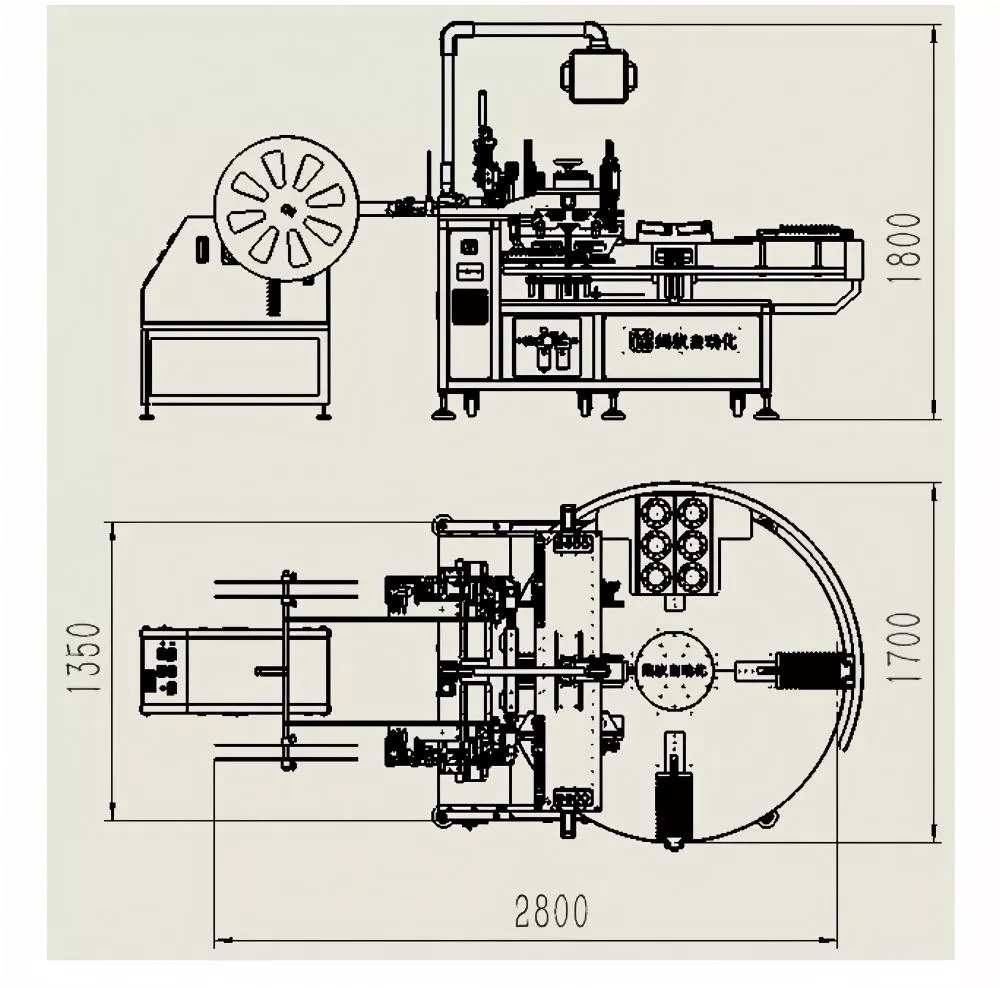

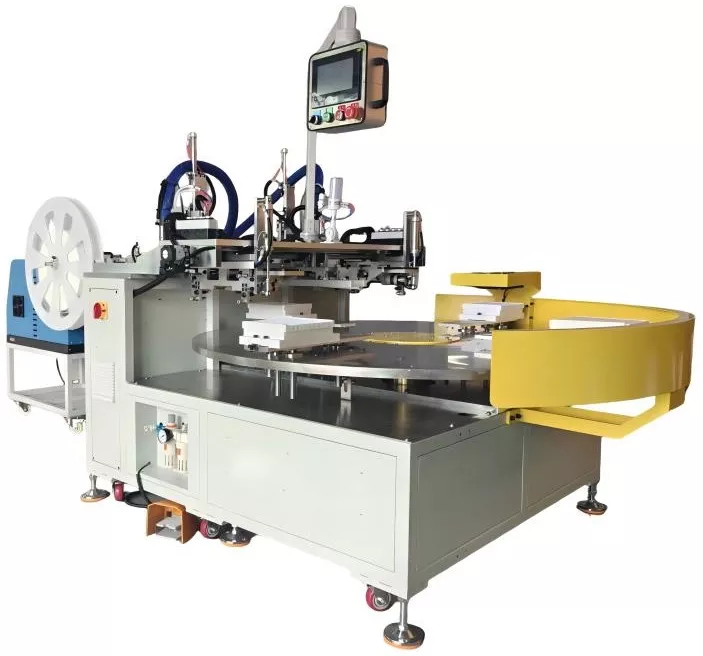

The Car air conditioning filter double-side Edge bonding machine MY-LW-05 is a fully automatic machine designed for efficient and precise edge bonding of car air conditioning filters. It integrates automatic feeding, cutting, gluing, double-sided edge sealing, and cooling  into one streamlined process.

Featuring four workstations and a PLC-controlled system for accurate edge length control (±0.25mm), this machine eliminates the need for secondary trimming—saving material, labor, and handling costs.

It offers precise, clean edge bonding with no secondary trimming required

With an operating cycle of just 8–10 seconds per piece, the MY-LW-05 delivers high-speed production and consistent quality. It supports filter sizes ranging from 150–400mm (L), 150–300mm (W), and 10–60mm (H) and handles materials such as non-woven fabric and carbon fiber reinforced fabric.

Built with a durable frame and precision components, the machine delivers long-term stability and reliability. It includes an integrated glue machine, hose, and glue gun, along with four custom aluminum alloy or 3D-printed fixtures designed to hold the folded filter securely during edge application.

The best advantage of this car air conditioning filter double-side Edge bonding machine is that it maintains high precision of bonding strip length tolerance ±0.25mm, and ensuring every filter meets strict dimensional requirements. The machine’s four synchronized workstations allow for longer cold-cutting times, resulting in cleaner edges and superior bonding quality.

Product Advantage

Advantages of the Double-Sided Edge Bonding Machine:

1. No need for secondary edge trimming (saves material for 4 corners, 1 person's labor, 1 front corner bonding machine, and stacking and handling costs).
2. Controllable edge strip length (the length input on the PLC is the exact length, within ±0.25mm).
3. Four workstations, longer product cold-cutting time, and higher quality.
4. Stable equipment and high speed (one product every 8-10 seconds).
5. Automatic feeding + cutting + gluing + bonding of double-sided air conditioning filters + baking and curing in one integrated process.

Product Details

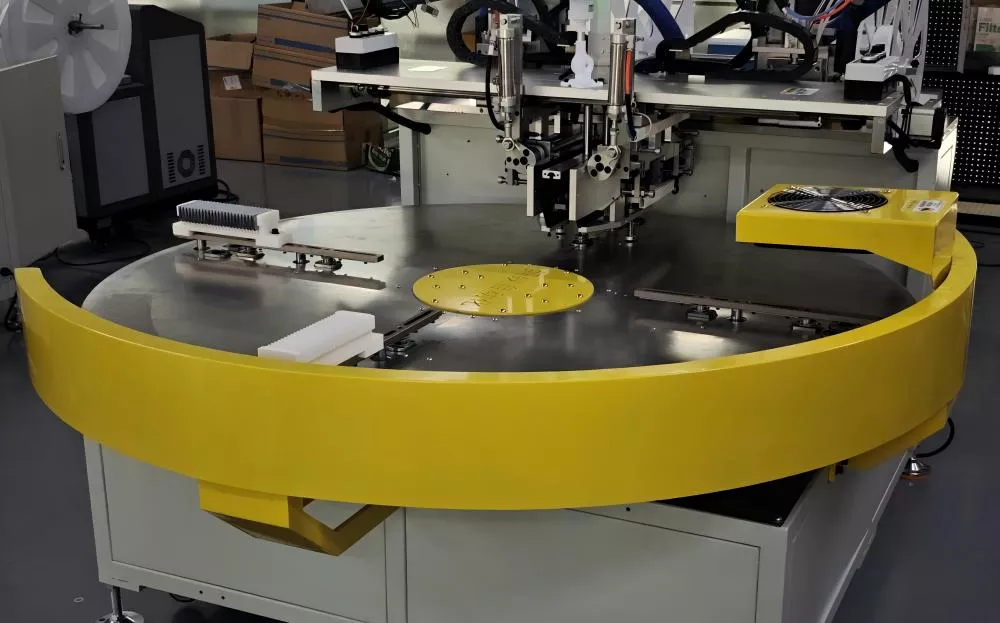

1. Four working molds.

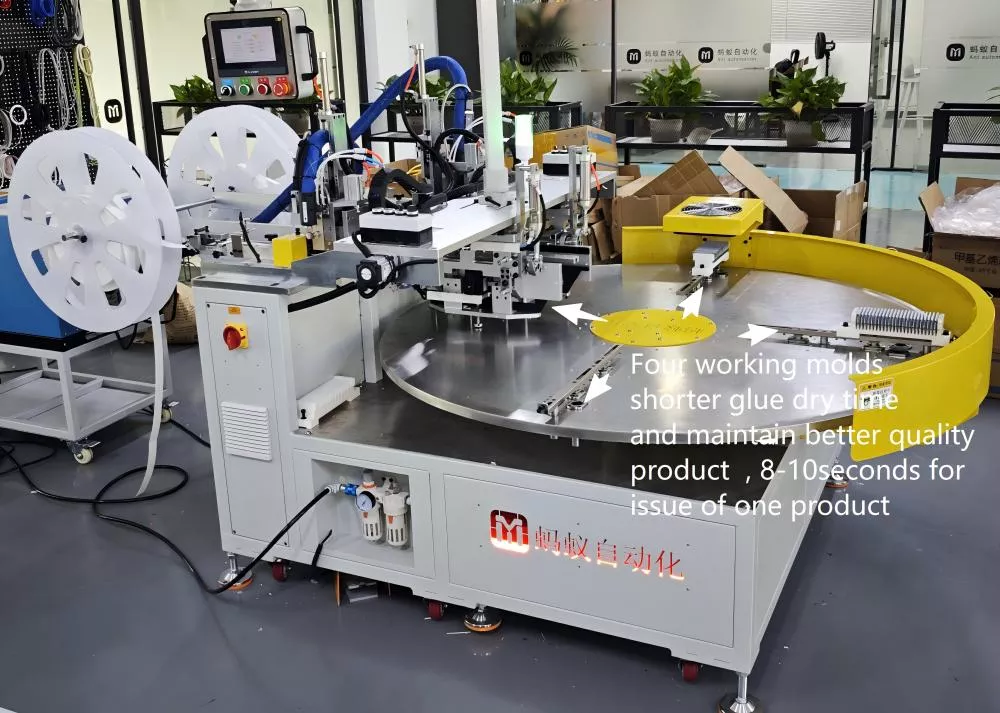

This cabin filter edge glue bonding machine applies with four working molds, which ensures longer glue dry time and better quality product,8-10 seconds for one product

four molds  rotate to bonding after gluing the air filter double edge .

2, Bonding edge unit

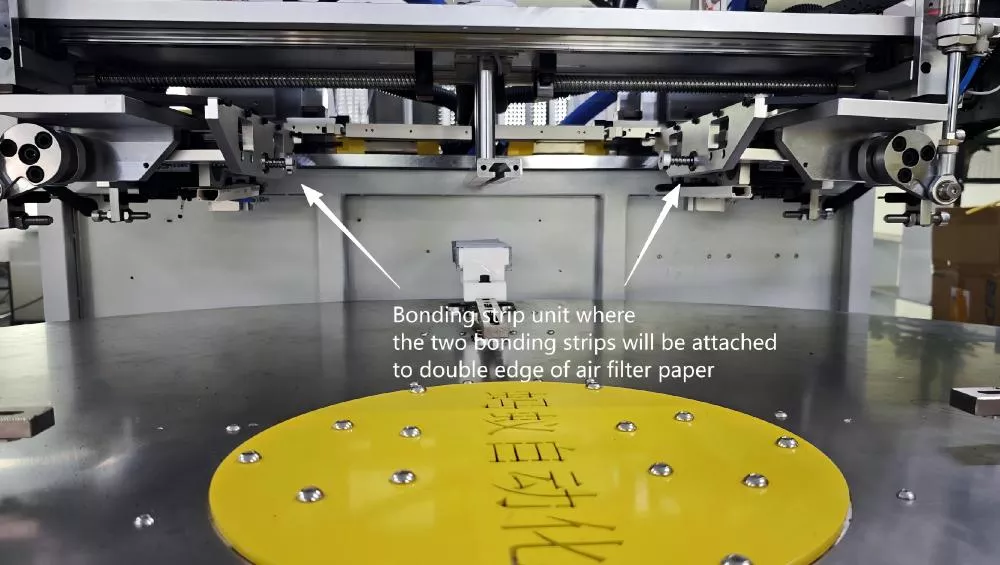

The bonding strip will be held by the bonding unit and attached to both sides of the air filter paper for the gluing strip with the air filter edges.

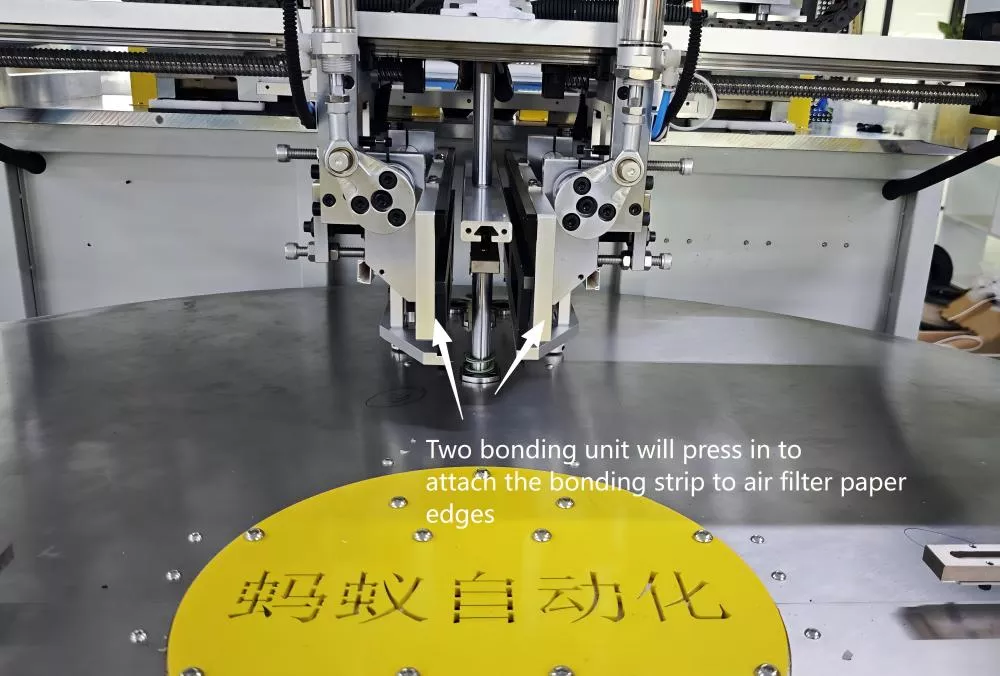

two bonding unit will press in to attach the bonding strip to air filter edges

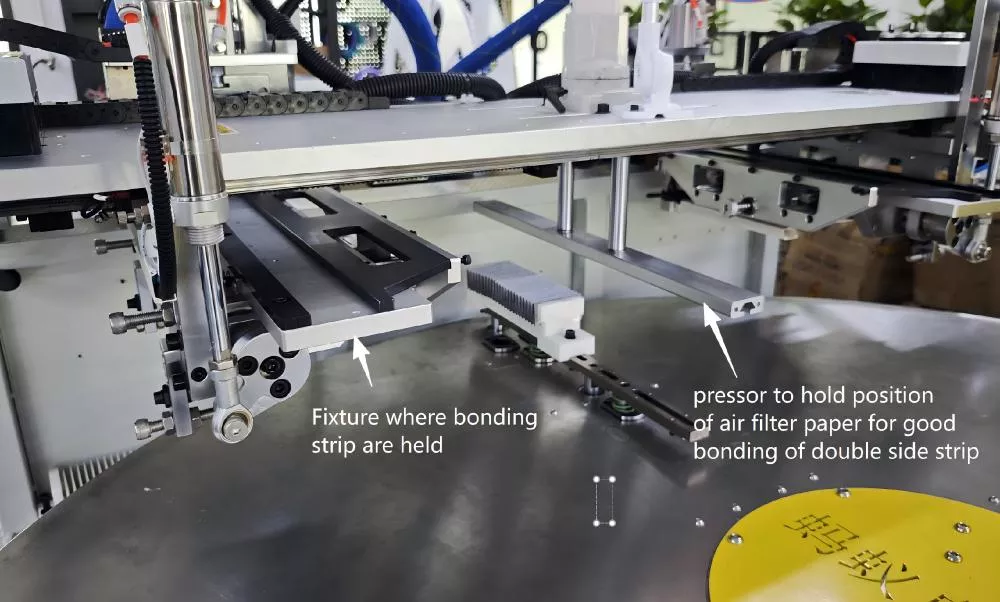

The pressor will press down to hold position of air filter paper for good bonding of strip with air filter edges .

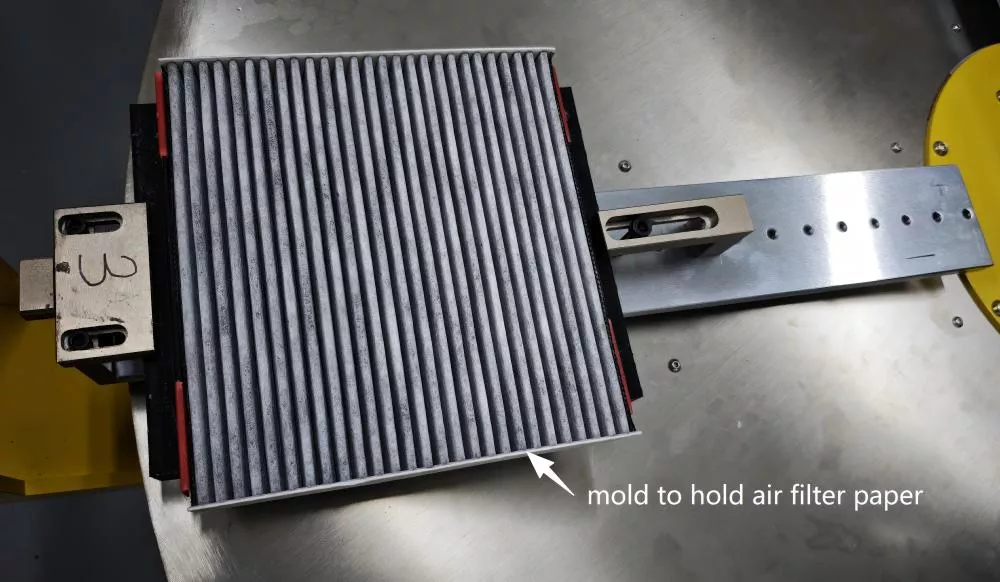

3. Mold to hold the air filter paper and determine the air filter line distance. Customized molds are available based on customer demand.

4, Cutting knife & glue coating knife

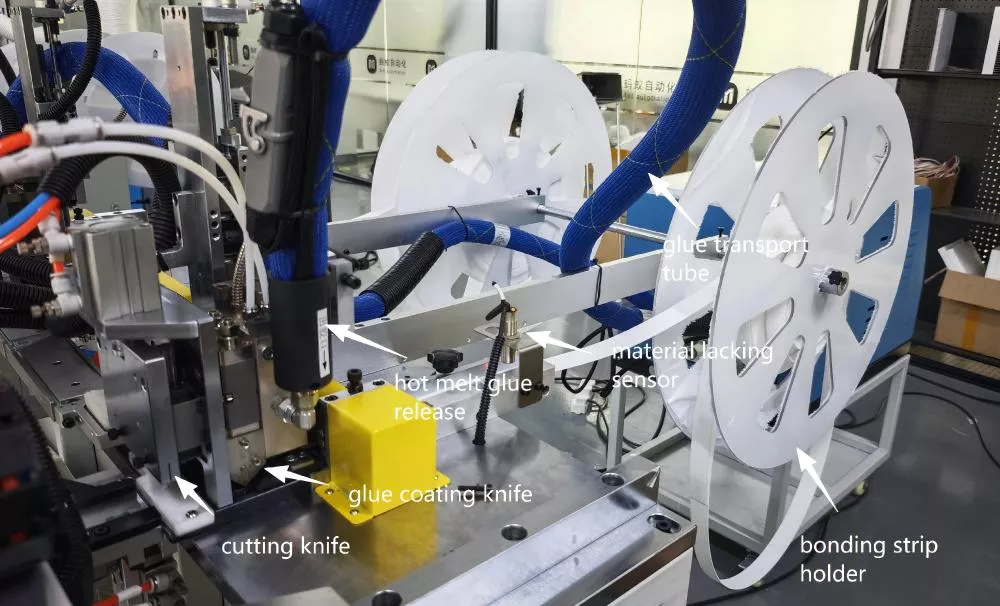

The cutting knife offers a precise cutting length tolerance  of  +-0.25MM  and the coating knife will have precision control of glue release and coating, and an even amount of hot melt glue on the bonding strips

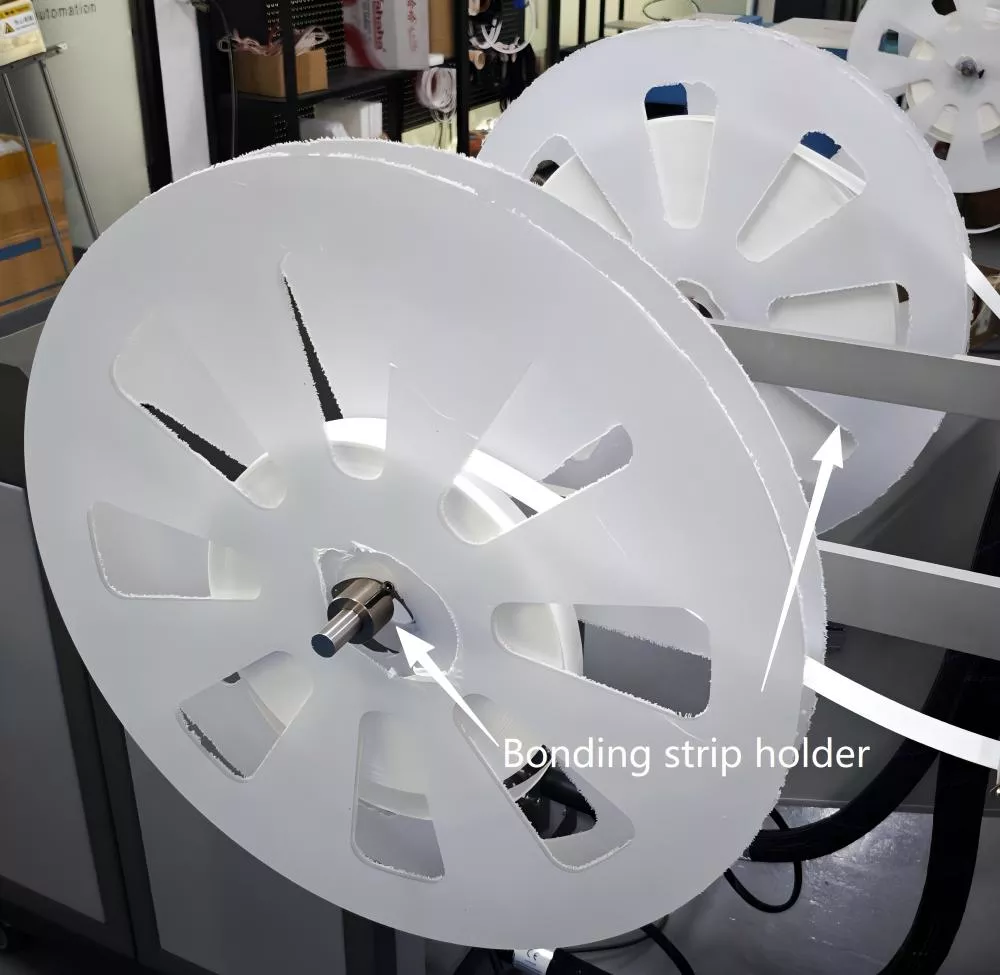

5, Feeding system, Two bonding strip holders ensuring feeding two pieces of bonding strips from both sides and ensuring a smooth feeding process.

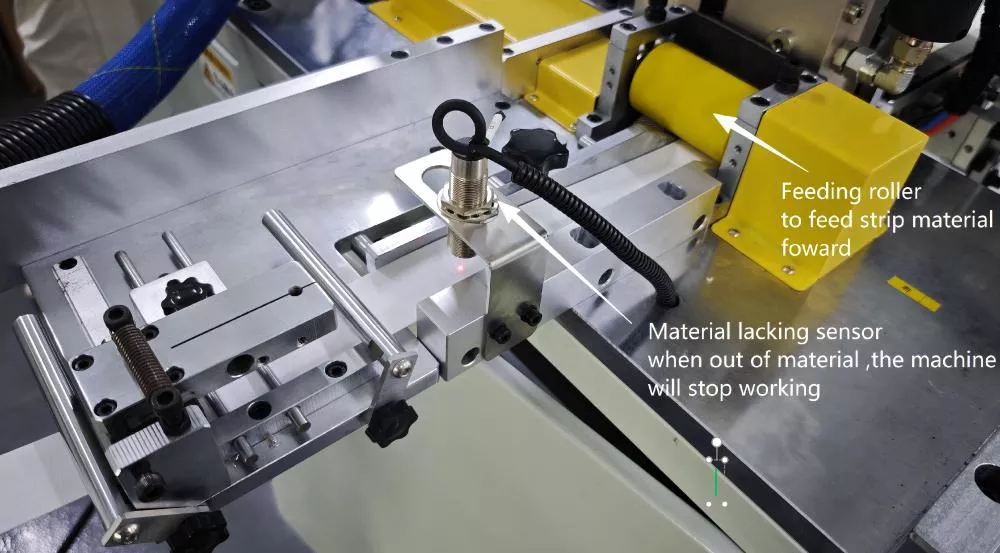

The material lacking sensor can sense material , if material runs out , the machine will stop working and signal alarms.

The feeding rollers will control precision feeding of bonding strip and cut to precise length  and hot melt glue will be distributed evenly on the bonding strip .

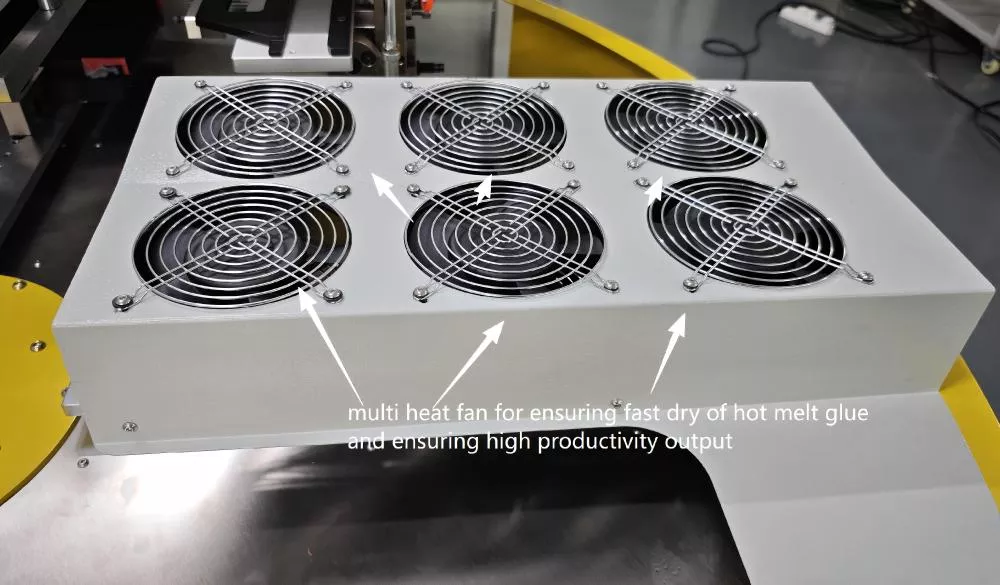

6, Multi-heat dispersing fans, the Auto air filter adhesive bonding machine applies with multi-heat dispersing fans to cool the hot melt glue fast, dry, and ensures good quality of cabin air filter with shorter production cycle time.

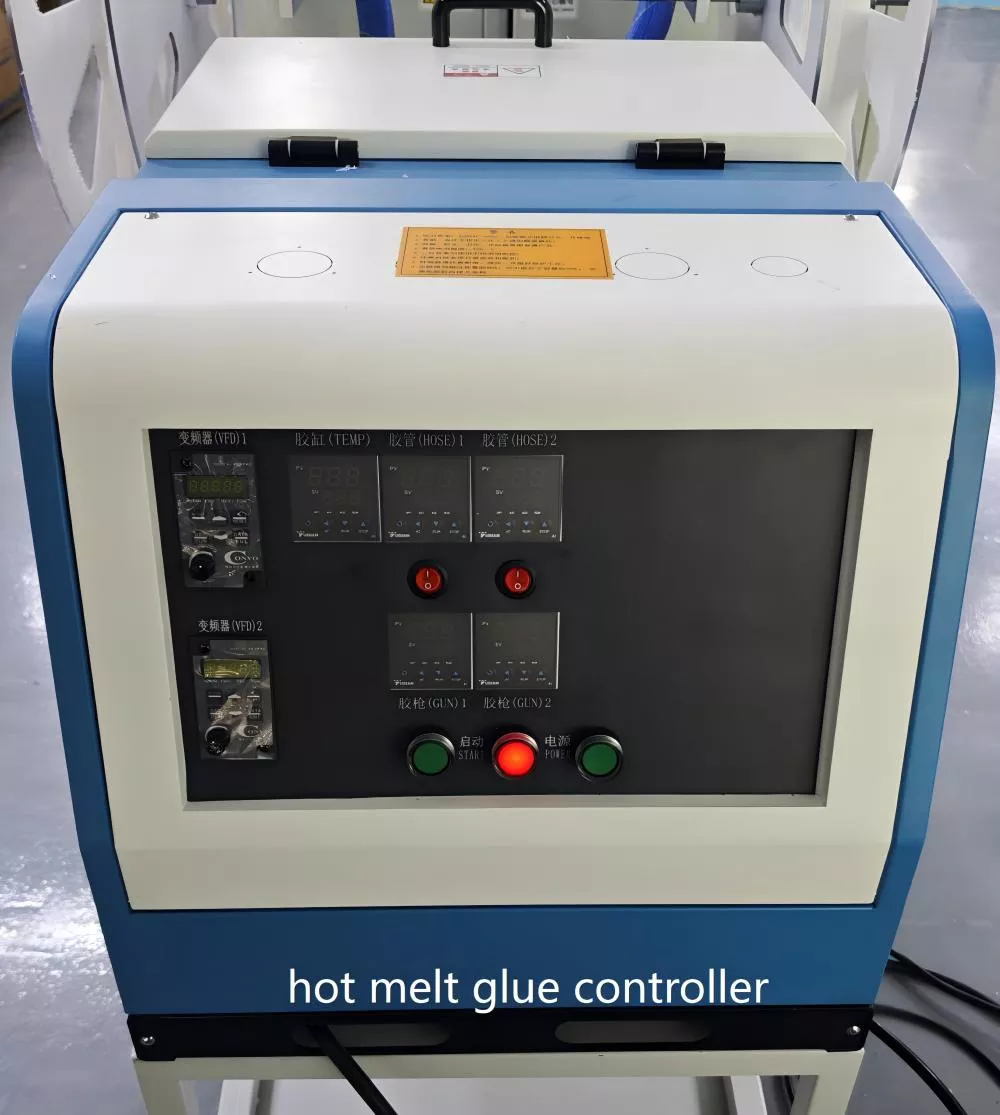

7, Hot melt glue controller ensuring stable output of hot melt glue

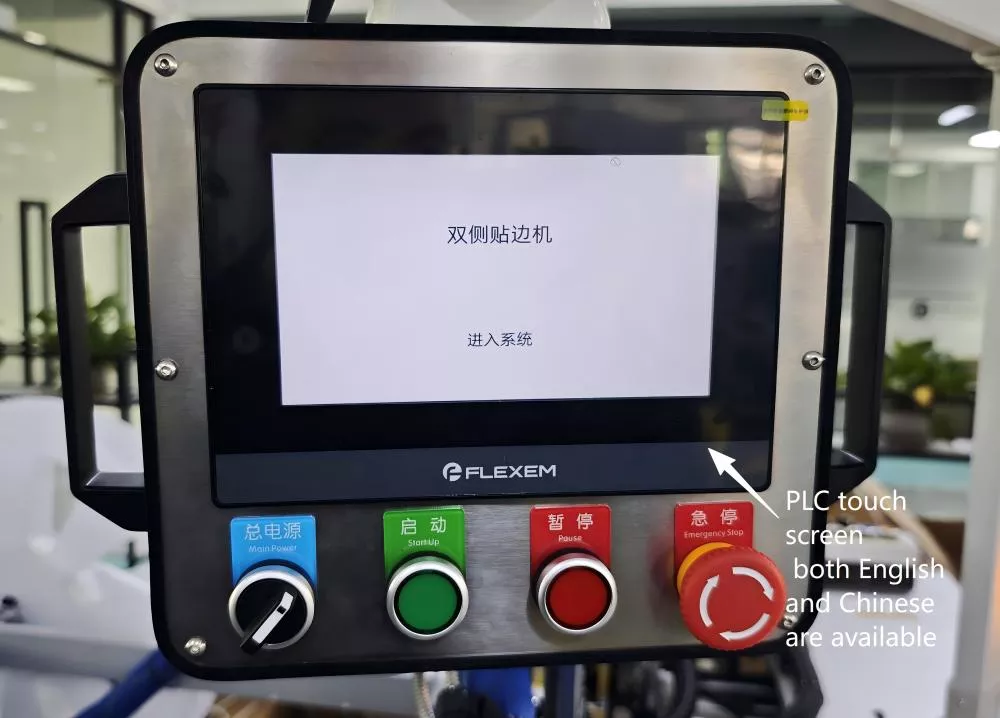

8, PLC touch screen. The car cabin air filter gluing machine is equipped with a PLC  touch screen, and customers can set different cutting lengths of the bonding strip, bonding unit holding time, product quantity, and machine speed based on production requirements, etc.
