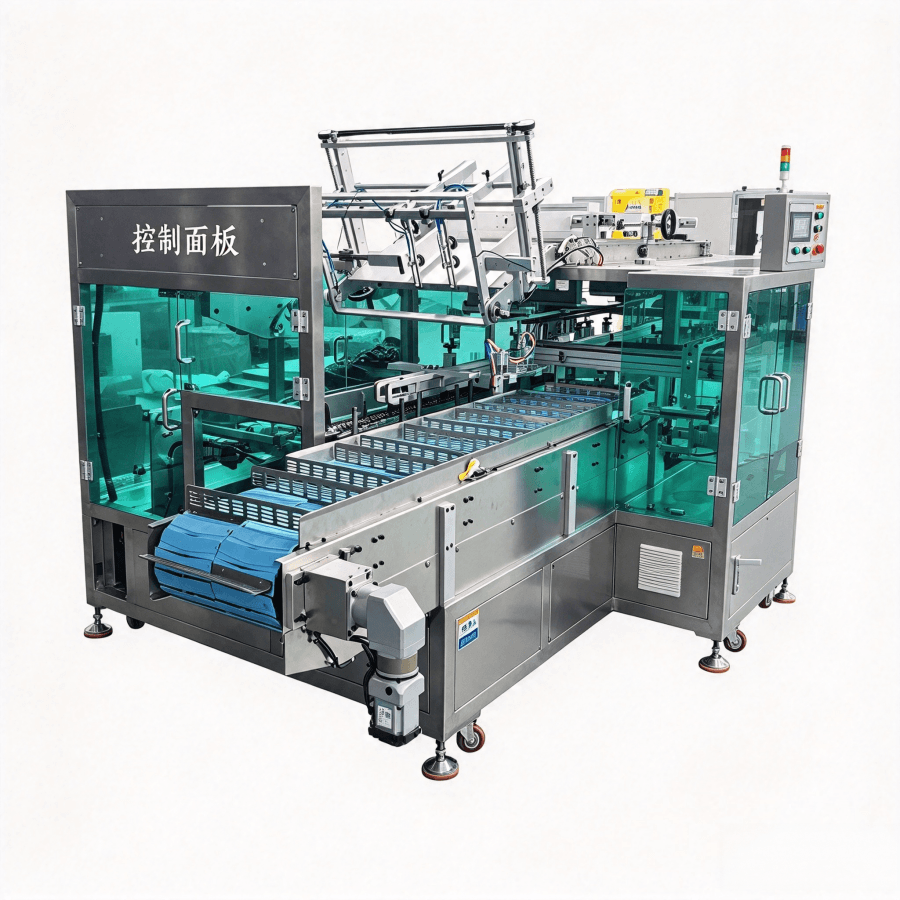

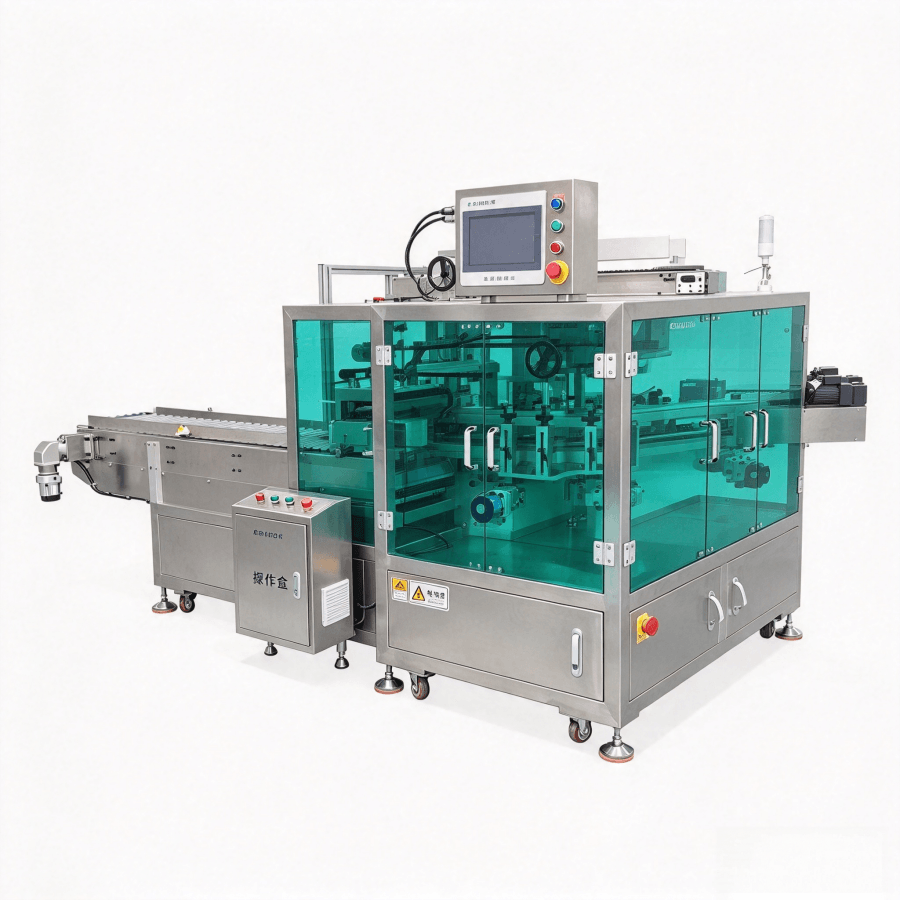

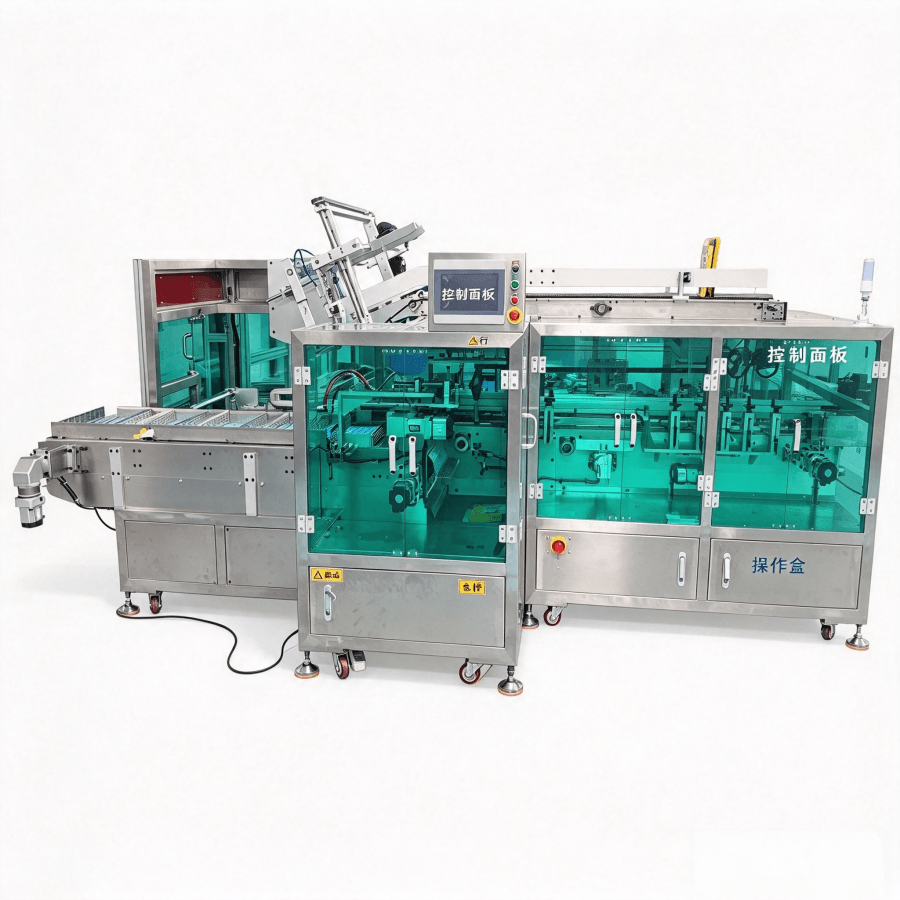

Car Air Filter Automatic Box Packing Machine

Automatic Packing Solution for Car Air Filters

The Car Air Filter Automatic Box Packing Machine is an automated packaging solution designed to pack car air filters into pre-formed carton boxes. It integrates air filter conveying, carton box loading, positioning, product insertion, carton ear folding, and finished product discharge into one automatic packing process.

This automatic car air filter packing machine helps manufacturers reduce repetitive manual packing operations and improve production efficiency. The operator mainly needs to load the carton boxes and car air filters, while the machine automatically completes the remaining packing process.

YOUTUBE VIDEO

With a cycle time of approximately 6–8 seconds per piece, the machine can achieve a production capacity of up to 6,000 pieces per day based on 10 hours of operation.

For manufacturers looking for a reliable car air filter box packing machine, this system provides an integrated solution for automatically placing air filters into cartons and completing the final box folding process.

Automatic Air Filter Carton Packing Machine Advantages

1，Automatic Carton Packing

The machine automatically places the car air filter into the carton and completes the main carton packing operations. Workers mainly need to load the carton boxes and air filters. Air filter conveying, carton conveying, carton positioning, product insertion, carton top cover folding, and finished product discharge are integrated into one automatic system.

2, High productivity of 6–8 Seconds per Piece

The equipment cycle time is approximately 6–8 seconds per piece, making it suitable for continuous production requirements.

Based on 10 hours of operation, the stated production capacity can reach approximately 6,000 pieces per day.

3,Wide application with Adjustable Fixtures for Different Sizes car air filters

The machine can accommodate different car air filter and carton box sizes by adjusting the corresponding fixtures.

This provides greater flexibility for manufacturers handling multiple air filter specifications.

Technical Specifications

Car Air Filter and Carton Size Range

The Car Air Filter Automatic Box Packing Machine can accommodate carton boxes within the following size range:

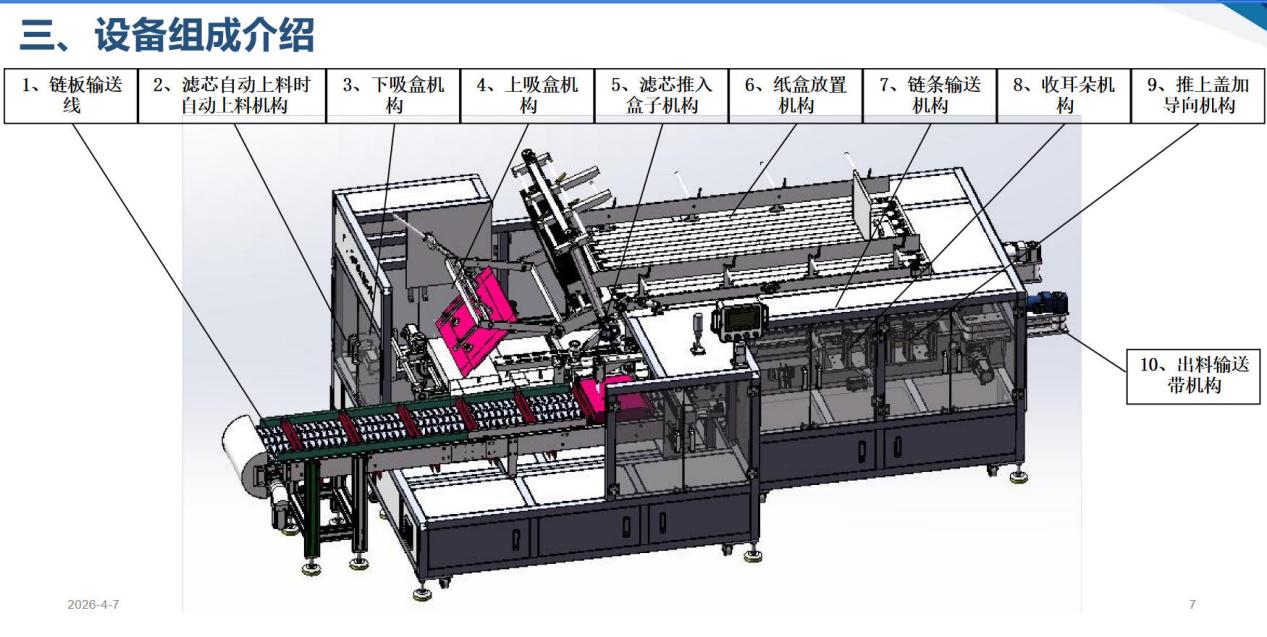

Car Air Filter Box Packing Machine Working Process

The car air filter box packing machine uses conveyor systems and adjustable fixtures to transfer both the air filters and carton boxes into the correct packing position.

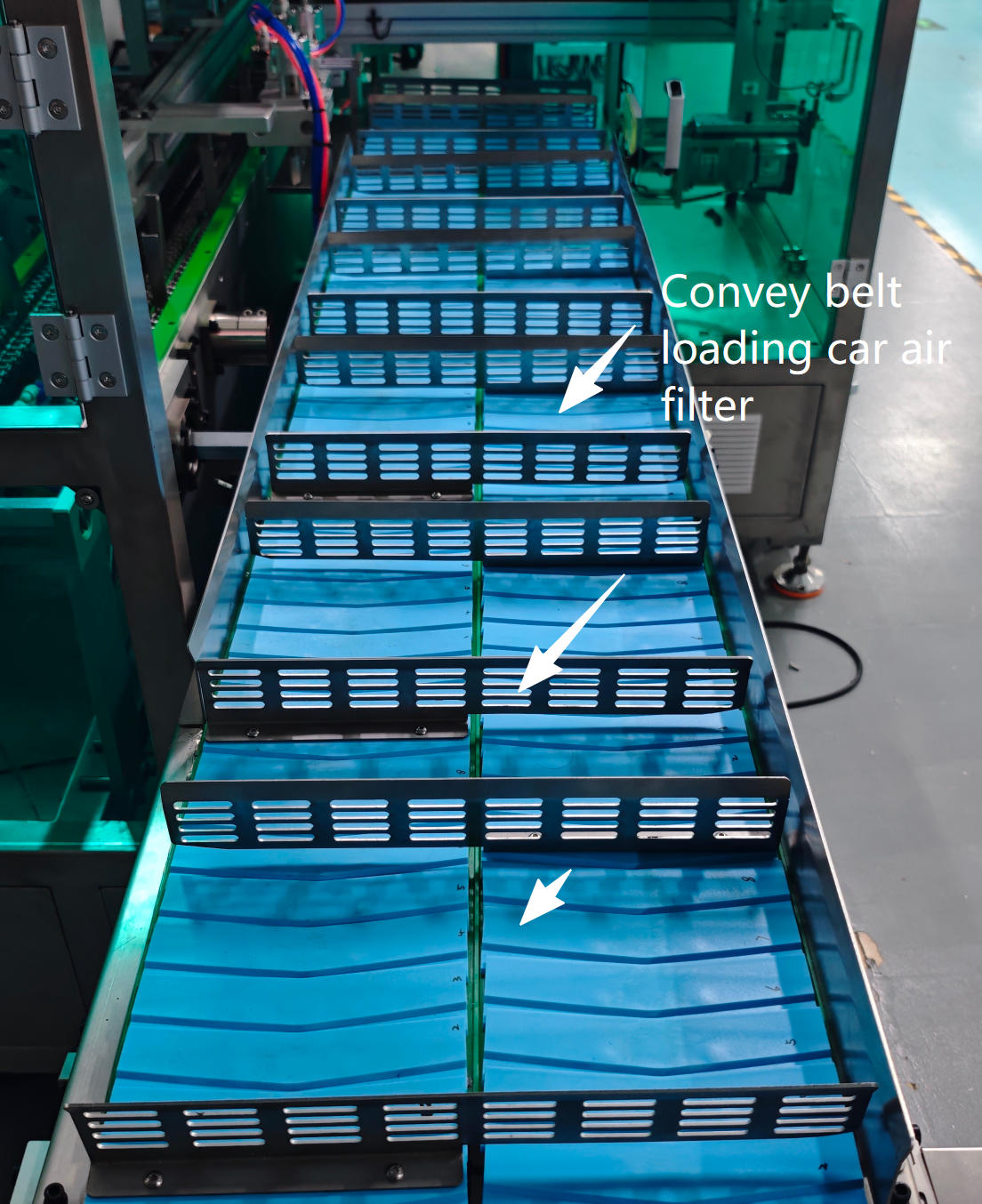

1. Car Air Filter Loading

Car air filters are loaded onto the conveyor system. Each fixture holds one air filter and transfers it to the designated packing position.

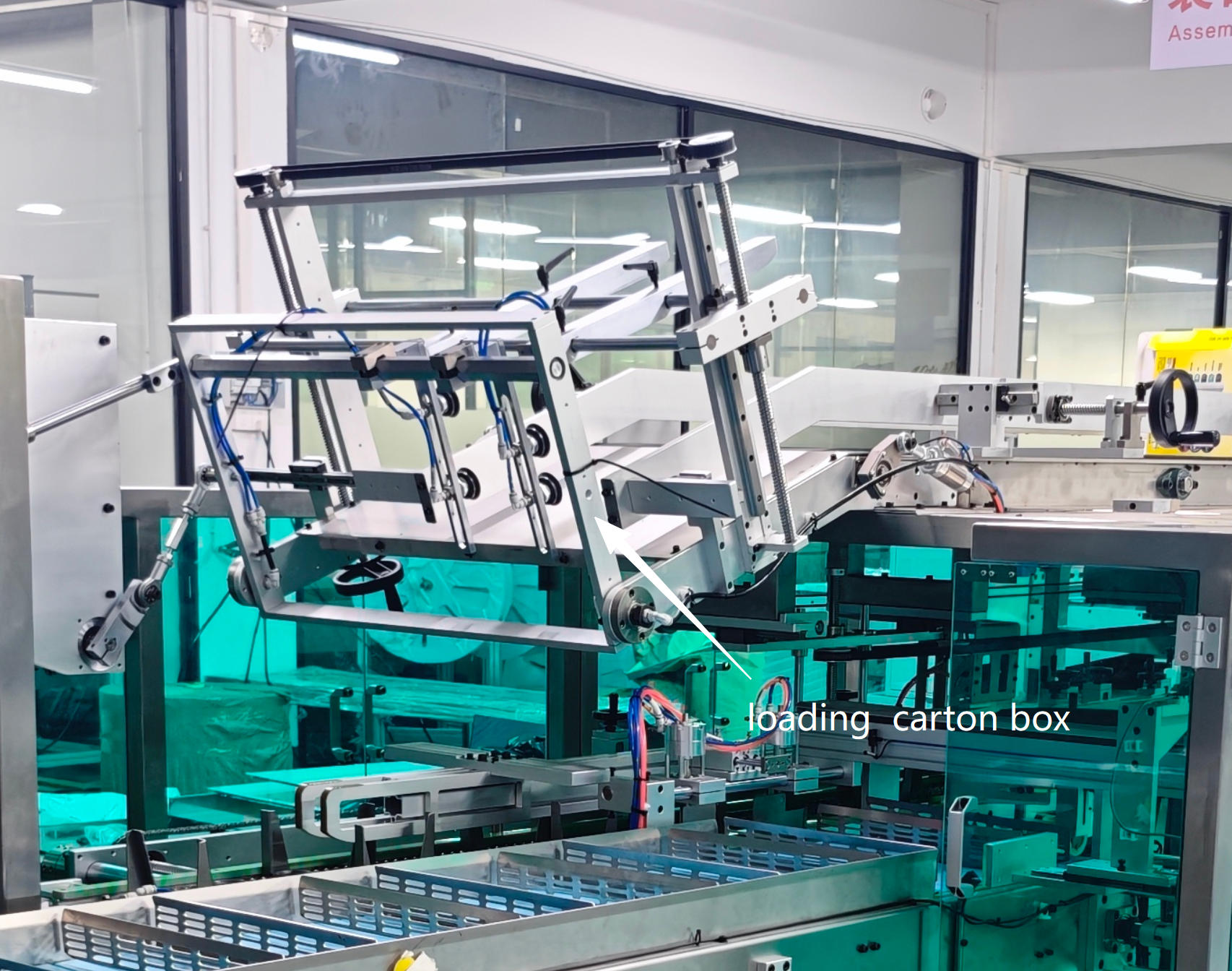

2. Carton Box Loading

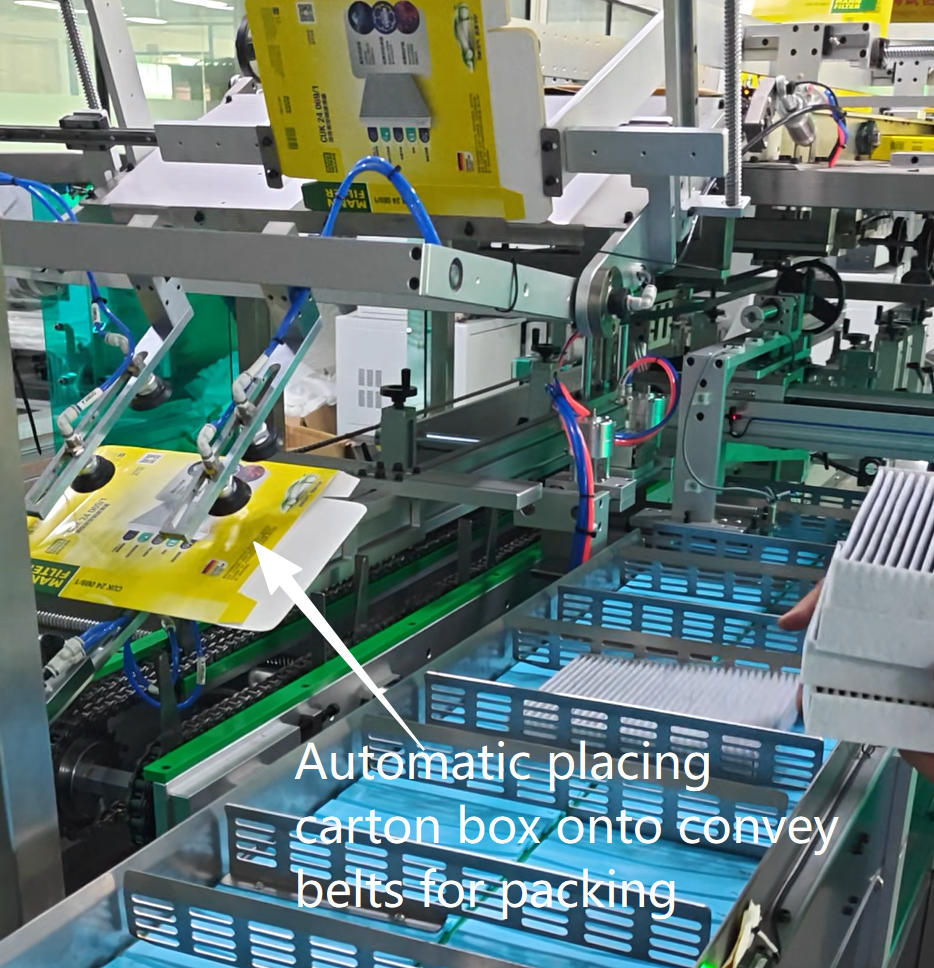

Carton boxes are loaded into the machine. The automatic loading system places the carton boxes onto the conveyor for subsequent packing.

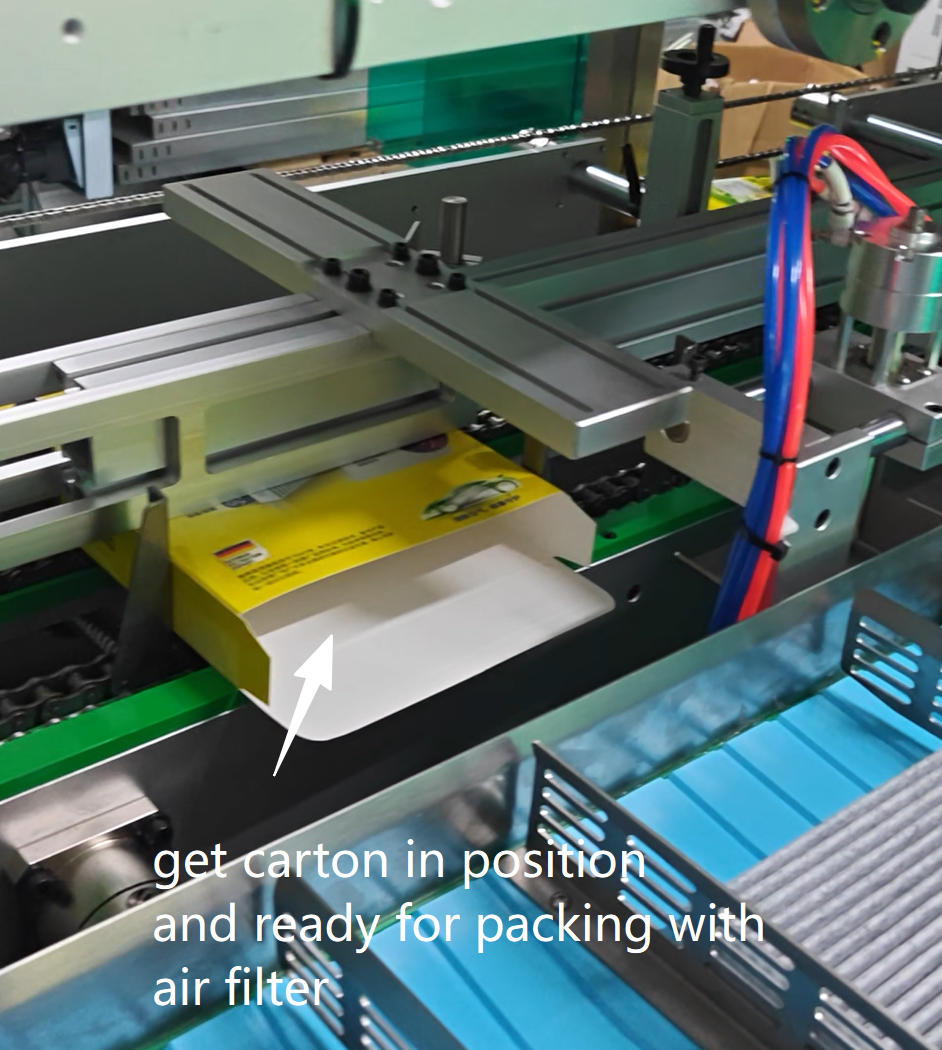

3. Carton Box Positioning

The carton box is transferred to the correct position and prepared for automatic air filter insertion.

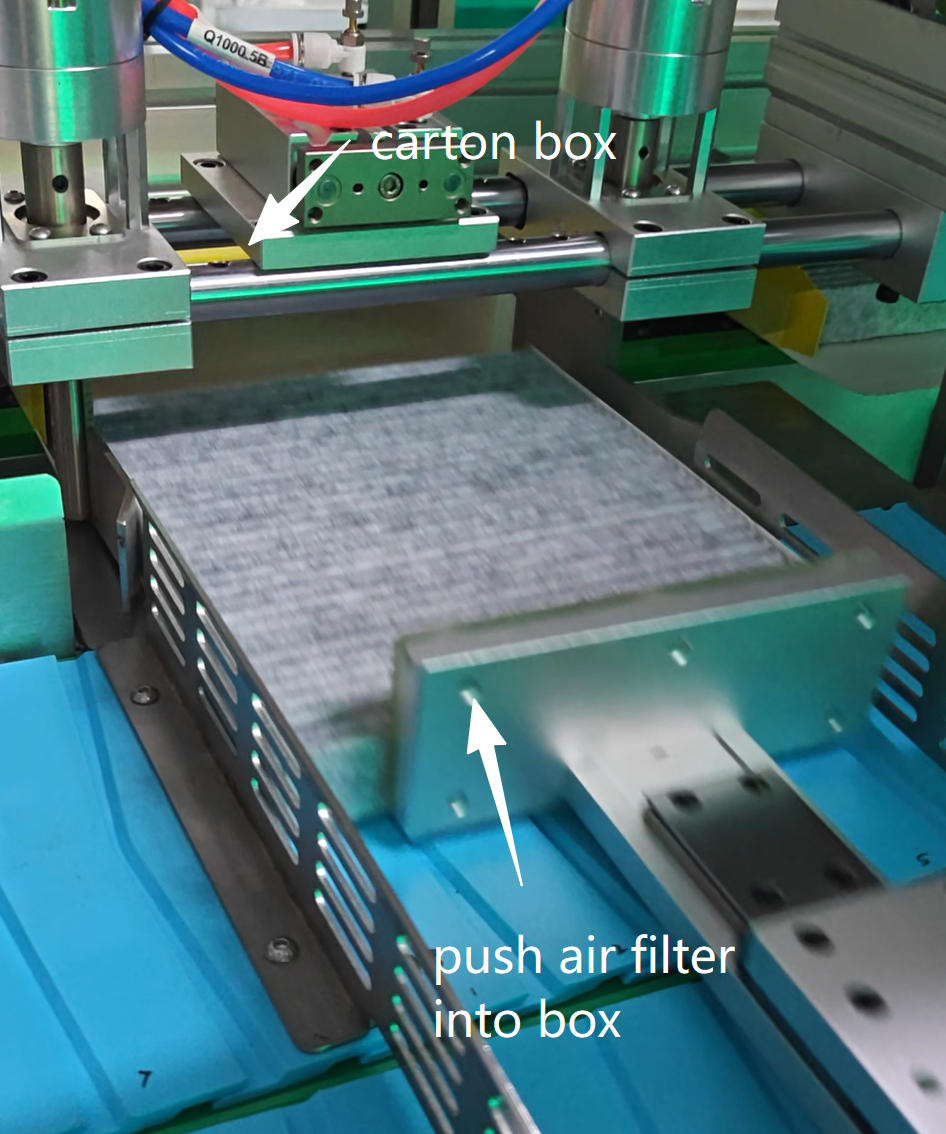

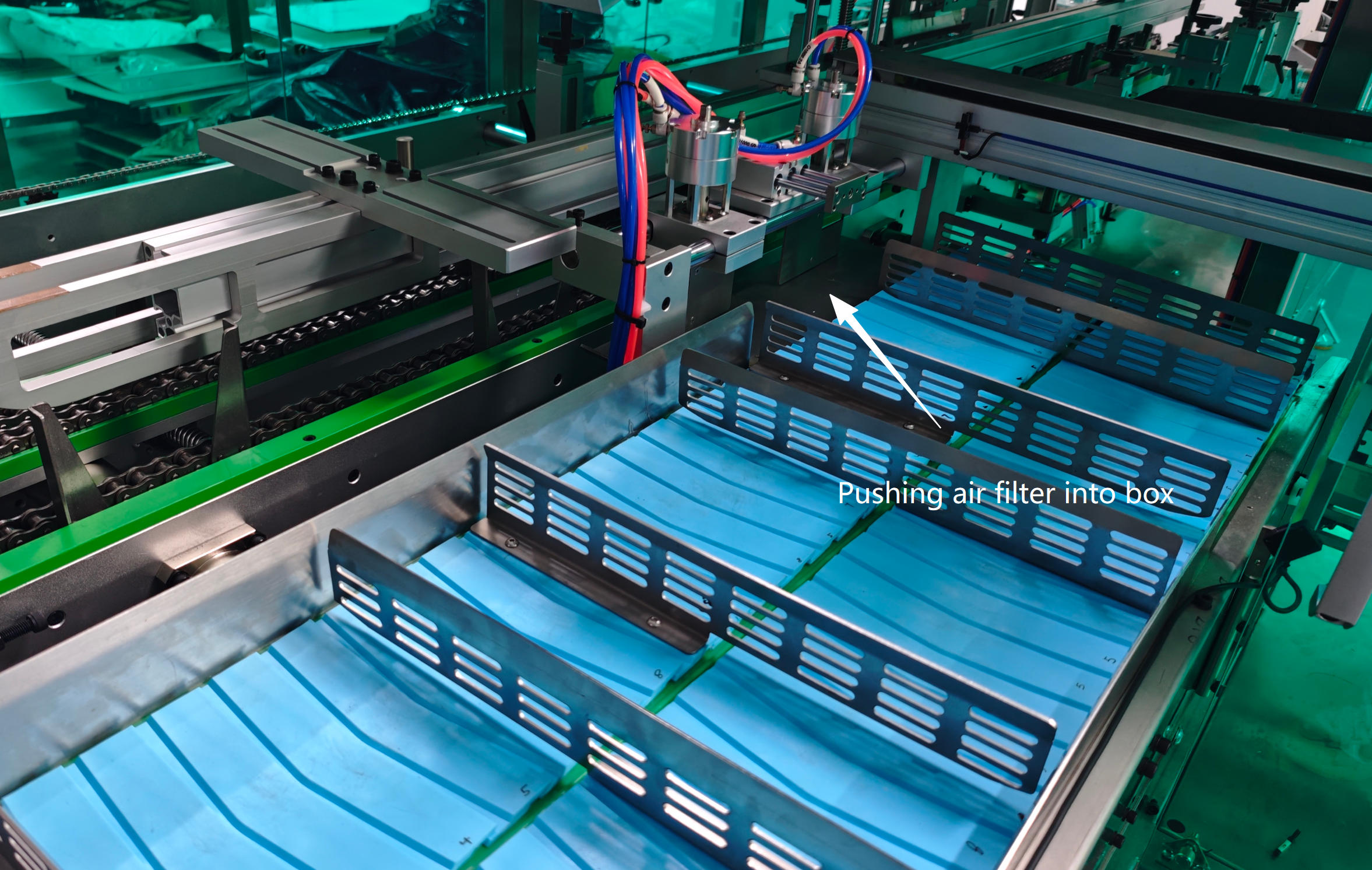

4. Automatic Air Filter Insertion

The machine automatically pushes the car air filter into the positioned carton box, reducing the need for manual product insertion.

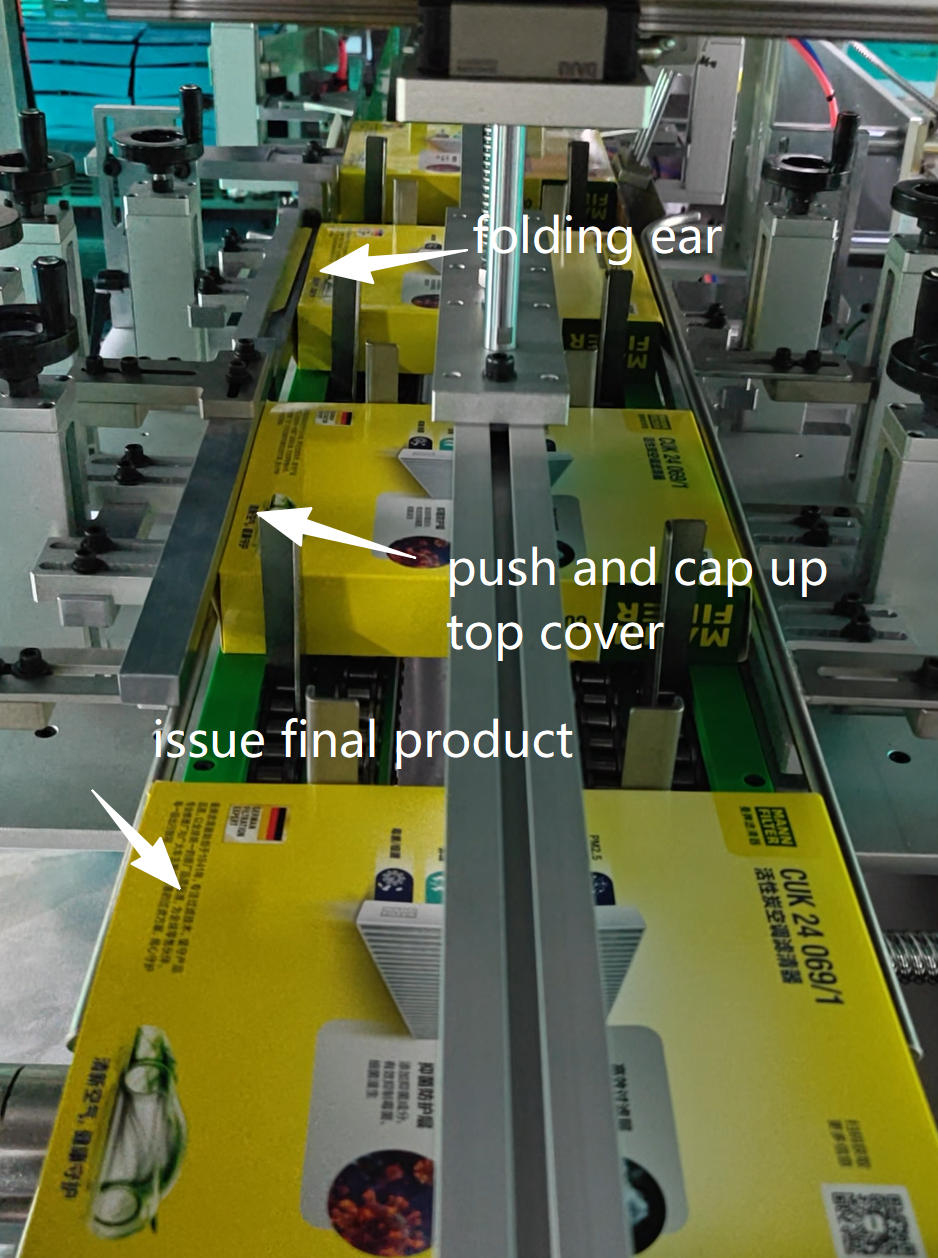

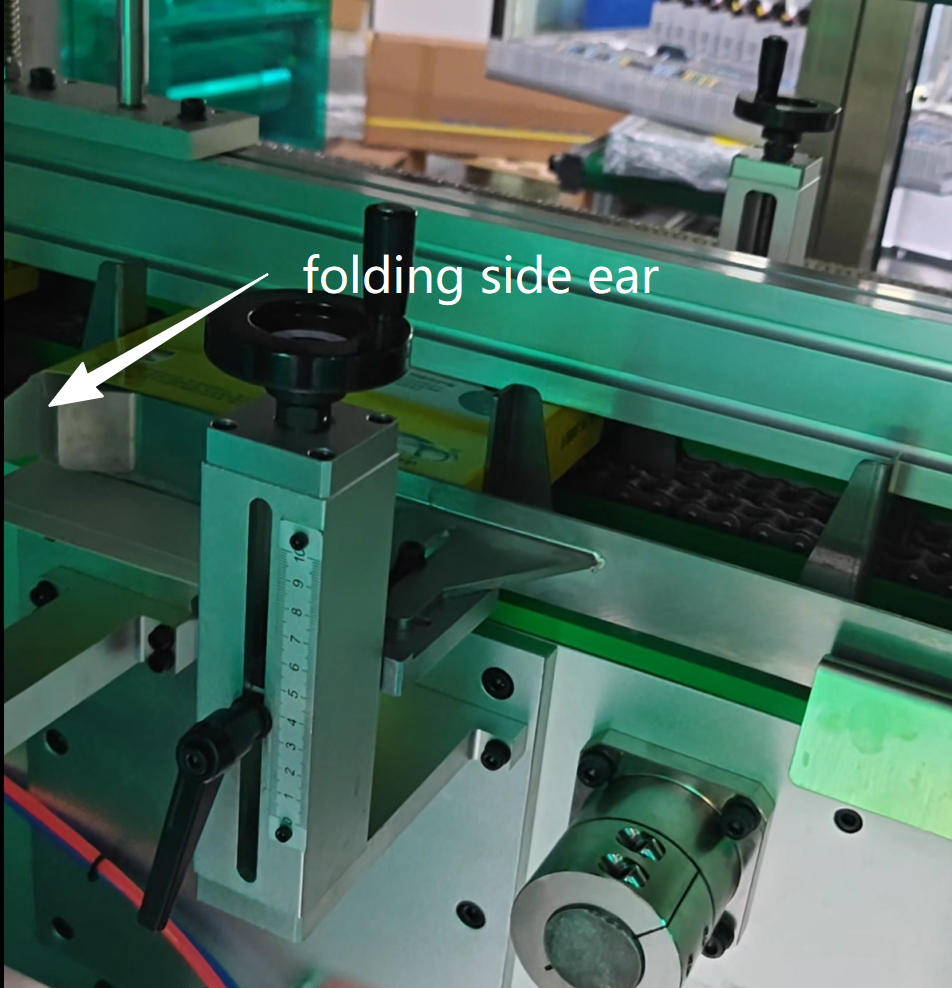

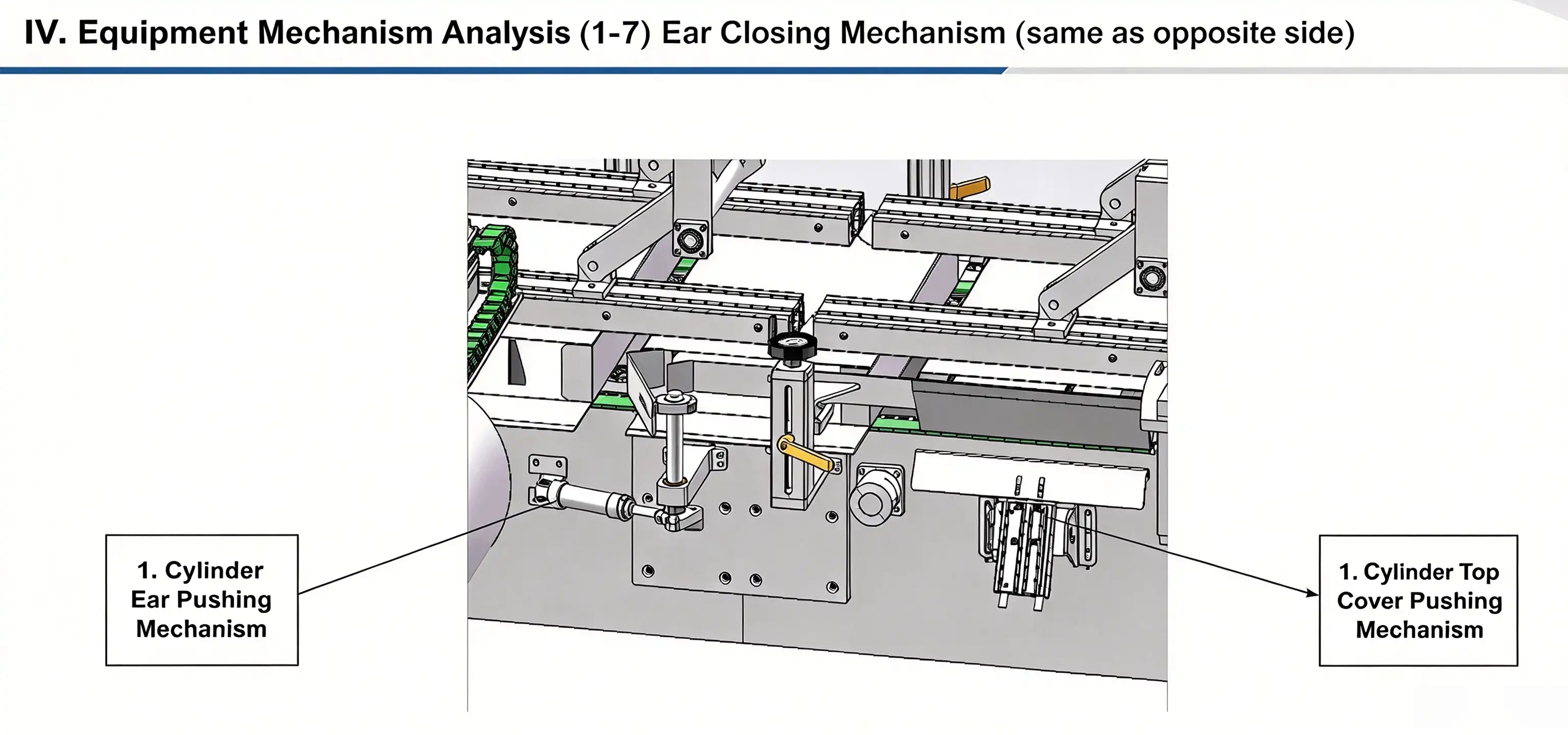

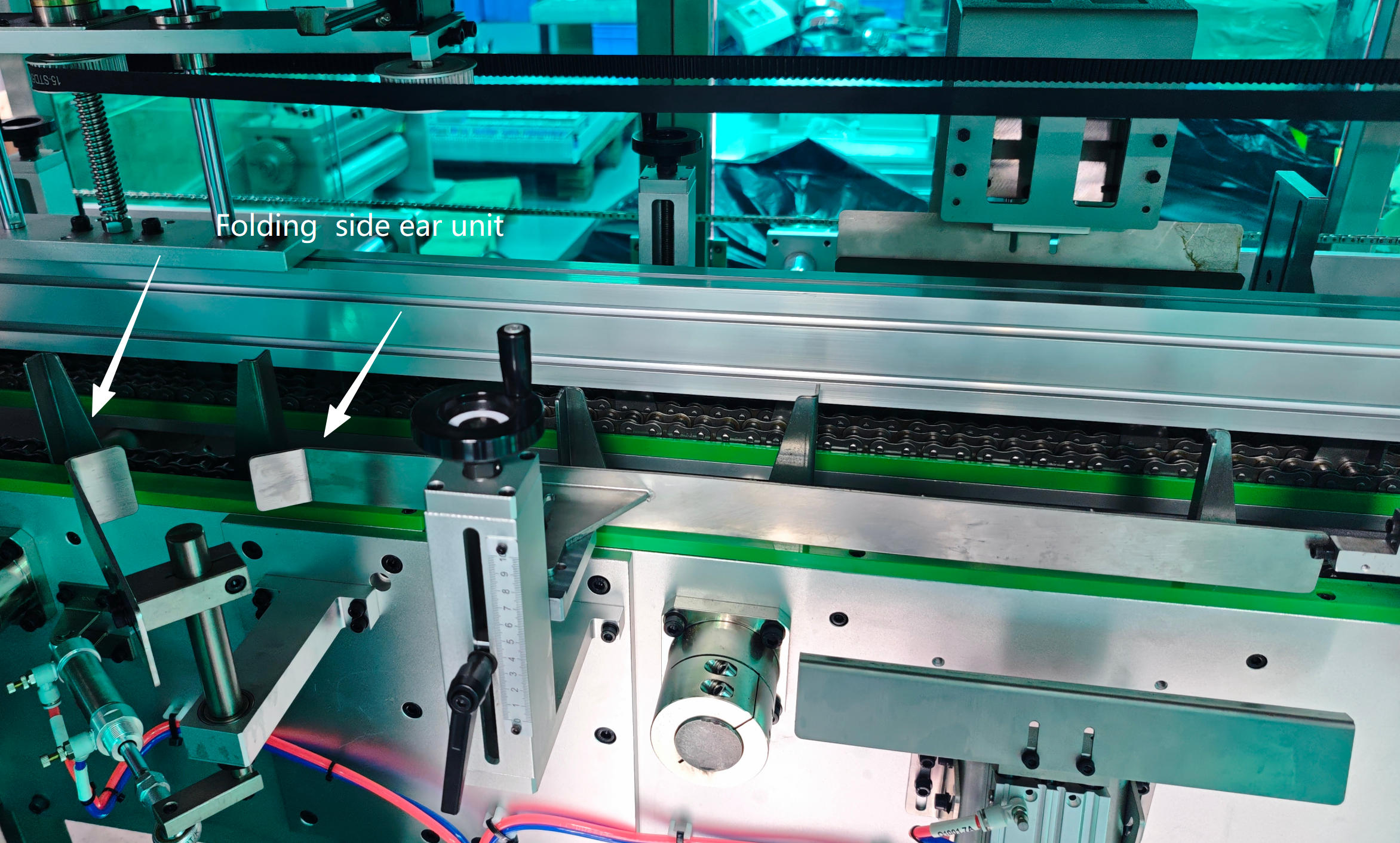

5. Carton Ear Folding

After the air filter has been inserted, the folding unit automatically folds the carton box ears inward to complete the packing operation.

6. Finished Product Discharge

The completed carton containing the car air filter is automatically discharged from the machine for the next production or handling process.

Frequently Asked Questions

1. What is a Car Air Filter Automatic Box Packing Machine?

It is an automatic packaging machine designed to pack car air filters into carton boxes. The system integrates carton loading, positioning, air filter insertion, carton ear folding, and finished product discharge.

2. What is the difference between an automatic car air filter packing machine and a manual packing process?

The automatic machine performs the main repetitive packing operations automatically, including carton positioning, air filter insertion, and carton ear folding, while reducing the amount of manual packing work required.

3. Can this car air filter box packing machine handle different air filter sizes?

Yes. The machine can accommodate different car air filter and carton box sizes by adjusting the corresponding fixtures, within the applicable equipment range.

4. How fast does the machine pack one car air filter?

The equipment cycle time is approximately 6–8 seconds per piece.

5. What is the daily production capacity?

The stated production capacity is up to approximately 6,000 pieces per day based on 10 hours of operation.

6. What carton sizes can the automatic air filter carton packing machine handle?

The minimum formed box size is 220 × 120 × 25 mm, and the maximum formed box size is 510 × 300 × 80 mm.

7. Does the machine automatically put the air filter into the carton?

Yes. After the carton is positioned, the machine automatically pushes the car air filter into the carton box.

8. Does the machine automatically fold the carton box?

Yes. The carton ear folding unit automatically folds the box ears inward to complete the packing process.

9. How many operators are required?

The specified operator requirement is one person for carton box loading.

10. What are the electrical and air requirements?

The machine requires 220 V, 50–60 Hz electrical power, with approximately 6.5 kW total power. The required air pressure is ≥ 0.5 MPa.

Why Use a Car Air Filter Box Packing Machine?

For high-volume automotive filter production, manual packing requires workers to repeatedly position cartons, place air filters into boxes, and fold carton ears.

A car air filter box packing machine integrates these operations into an automated process.

The machine transfers the air filter and carton through the packing system, positions the carton, inserts the air filter, folds the carton ears, and outputs the finished packed product.

This approach helps manufacturers reduce repetitive manual handling while creating a more consistent carton packing workflow.

Get an Automatic Car Air Filter Packing Solution

Looking for an  automatic air filter carton packing machine for your production line?

Send us your car air filter dimensions, carton box dimensions, required production capacity, and packaging requirements.

Our team can evaluate your product and carton specifications and recommend a suitable automatic packing configuration.

Contact us today to discuss your car air filter automatic packing requirements.
