Product Introduction

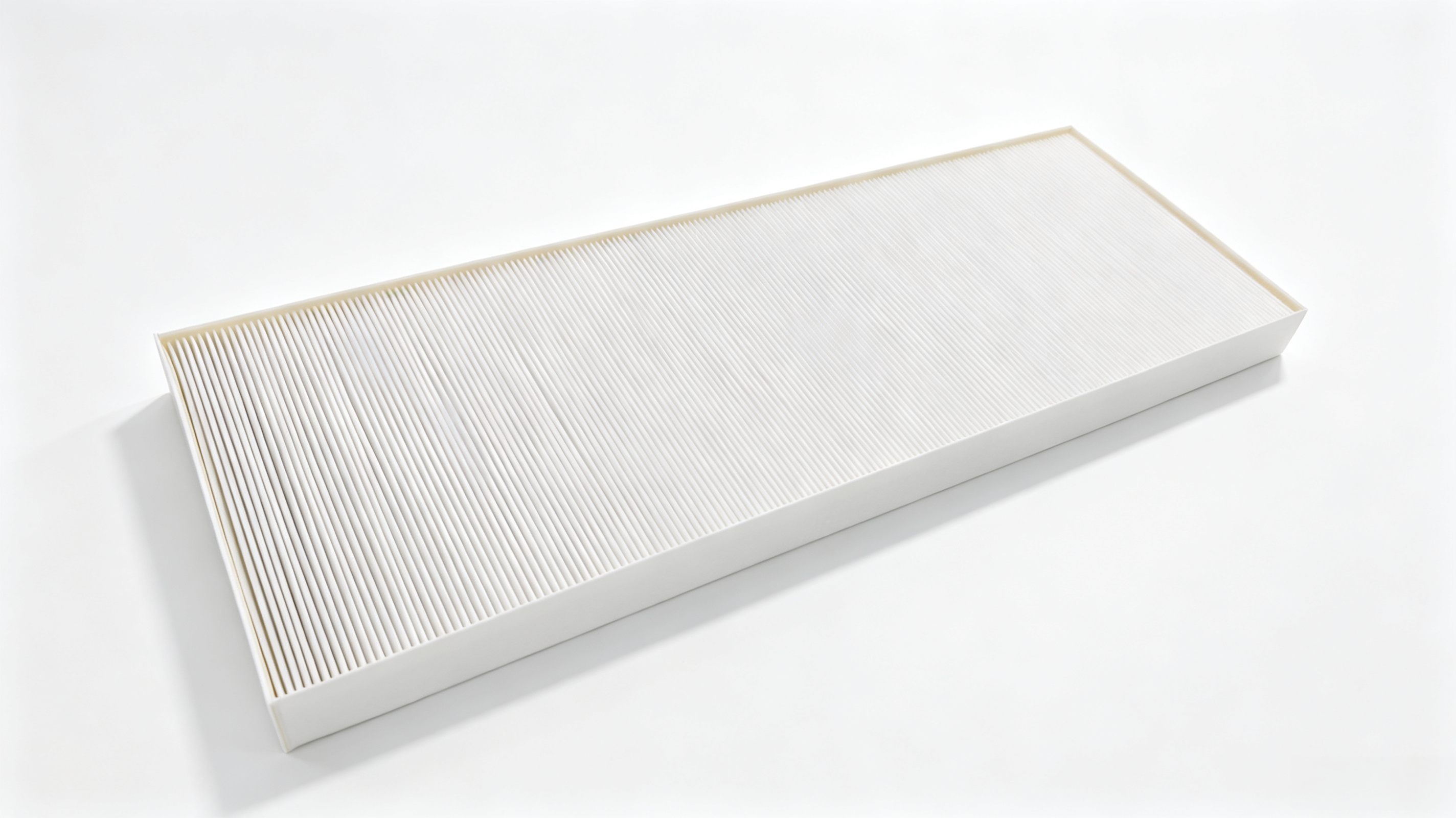

This Fully Automatic Automotive Cabin Air Filter Production Line integrate whole processing to make a four side strip bonded car air filter from a pleated paper . With the booming global automobile market, demand for automotive cabin air filters keeps rising year by year. Most traditional filter production relies on separated semi-automatic filter making machines with manual operation, which leads to high labor cost, inconsistent product quality, potential safety hazards and high omission rate in manual inspection.

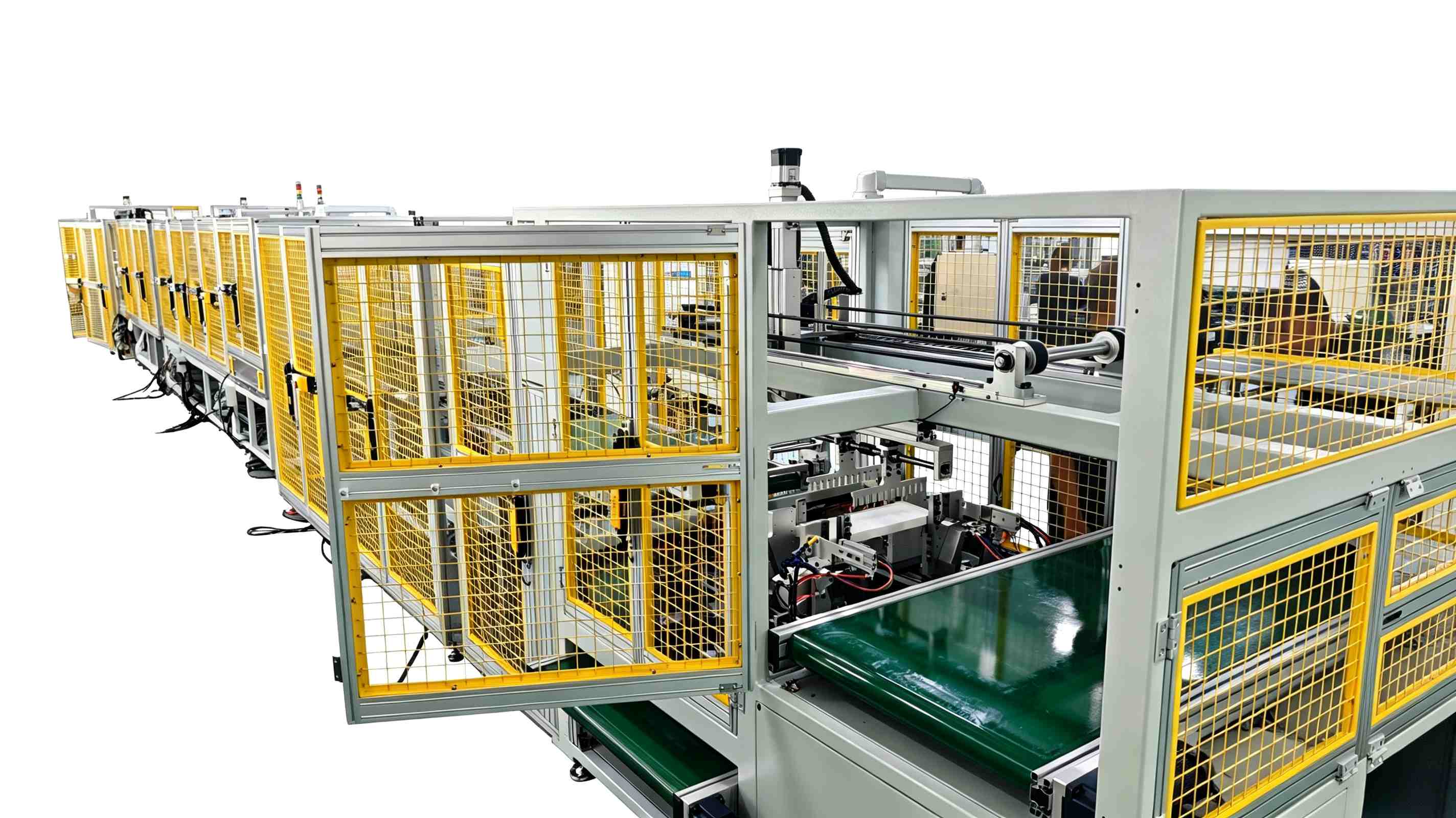

Today we introduce our 38-meter fully integrated automatic production line for car cabin air filters — a complete auto cabin filter manufacturing line covering raw filter paper unwinding, precision pleating forming, four-side hot melt bonding, fixed-length cutting, edge trimming, AI visual inspection and defective product automatic sorting. As a full automatic car air filter pleating bonding line, no manual transfer is needed during the whole production, which can produce standard cabin air filters in one stop, ideal for filter manufacturers to cut cost, boost efficiency and support OEM, bulk export orders.

YOUTUBE VIDEO

1. Core Advantages of This Automotive Cabin Air Filter Production Equipment

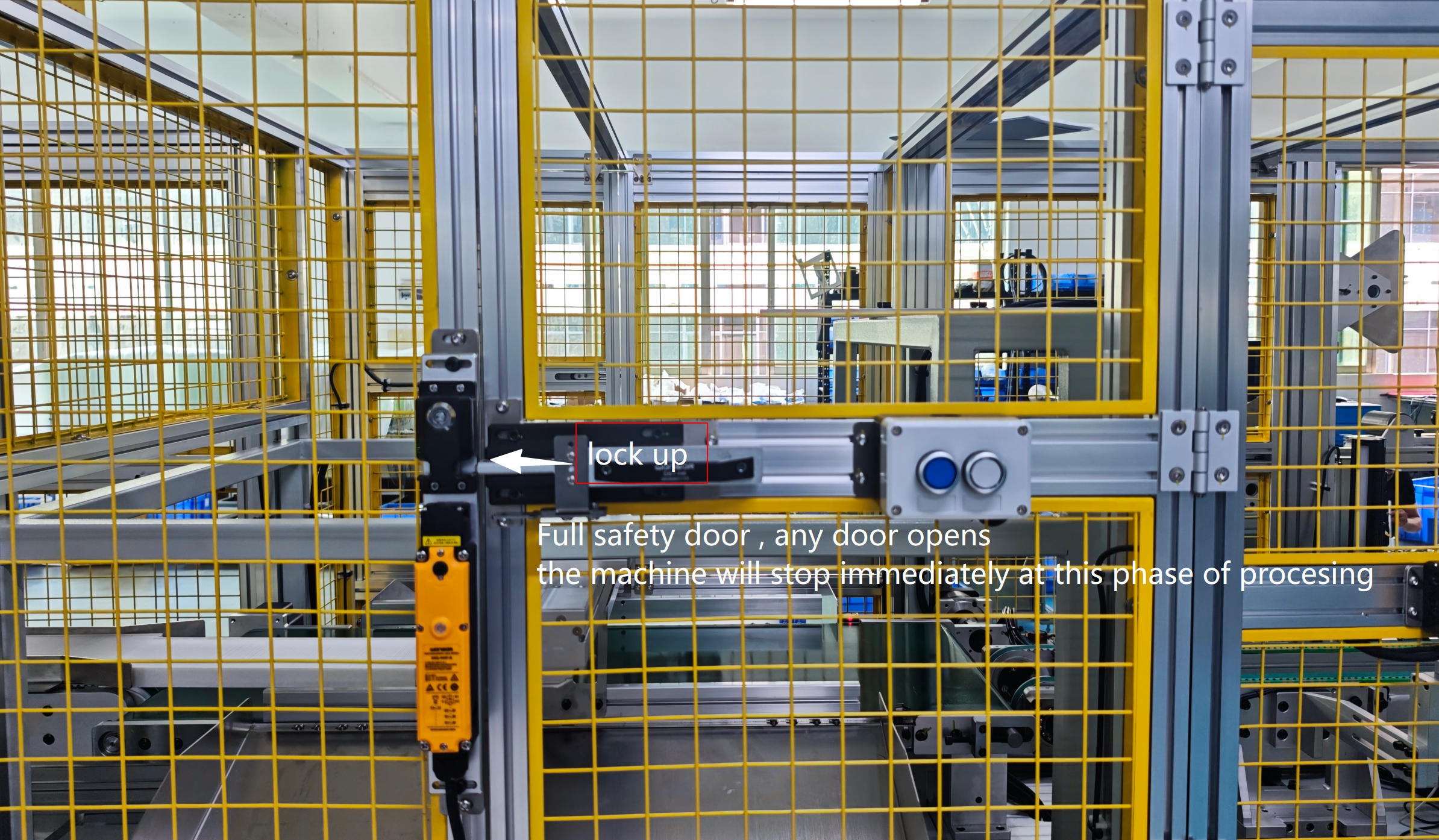

1.1 Full Safety Enclosure with Dual Safety Lock System (High Safety Auto Air Filter Fabrication Line)

The entire unmanned car cabin filter assembly line is equipped with yellow mesh safety guards, combined with mechanical & electronic safety interlock locks. Once any safety door is opened, the whole machine will stop immediately to avoid cutting or transmission injury, fully meeting international industrial safety standards and CE certification requirements.

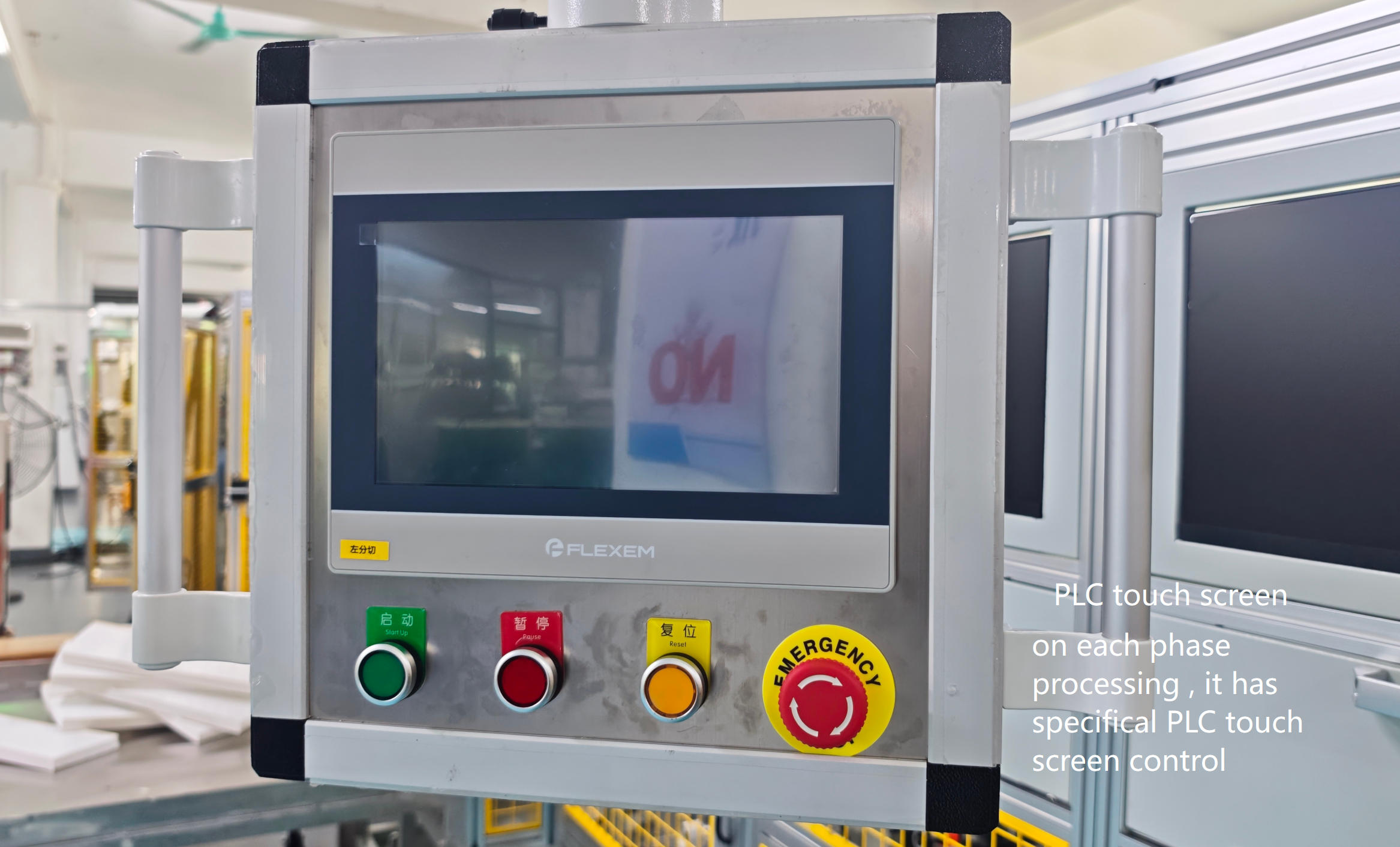

1.2 Independent PLC Touch Screen for Each Processing Station

This PLC control auto air filter manufacturing equipment is divided into multiple independent processing stations, each equipped with independent FLEXEM PLC touch panel, with physical buttons for start, pause, reset and emergency stop.

• Separate debugging without shutting down the whole integrated cabin air filter production equipment

• Independent parameter setting for pleat spacing, hot melt glue volume and cutting length

• Fast fault location, less downtime and easy operation for new workers
•

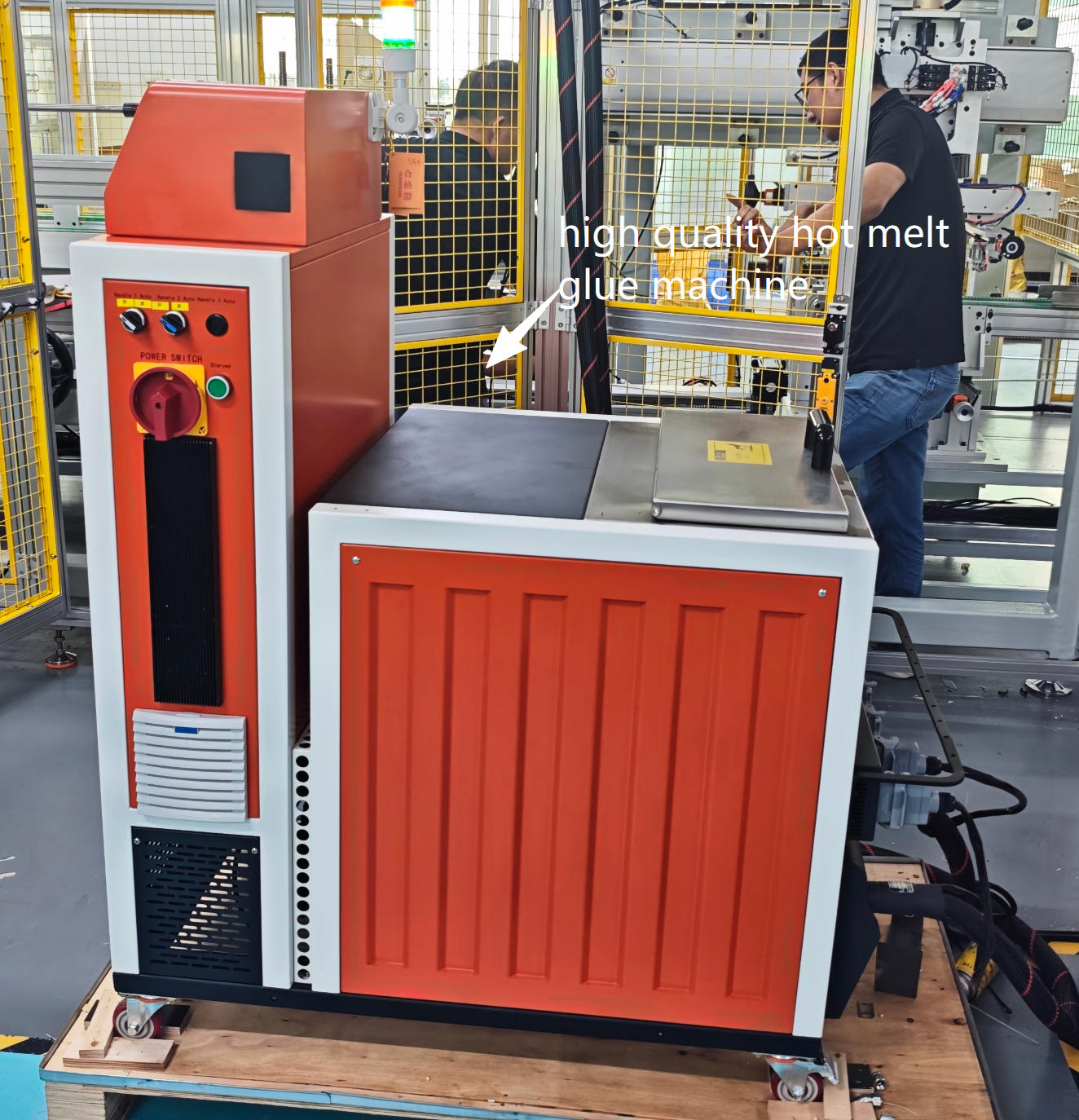

1.3 High-Stability Hot Melt Glue Machine for Filter Bonding

This hot melt bonding car filter making production line is matched with custom integrated hot melt glue unit with constant temperature & pressure control. Stable glue output ensures tight edge bonding, no glue shortage, overflow or delamination, maintaining good sealing performance of air filters.

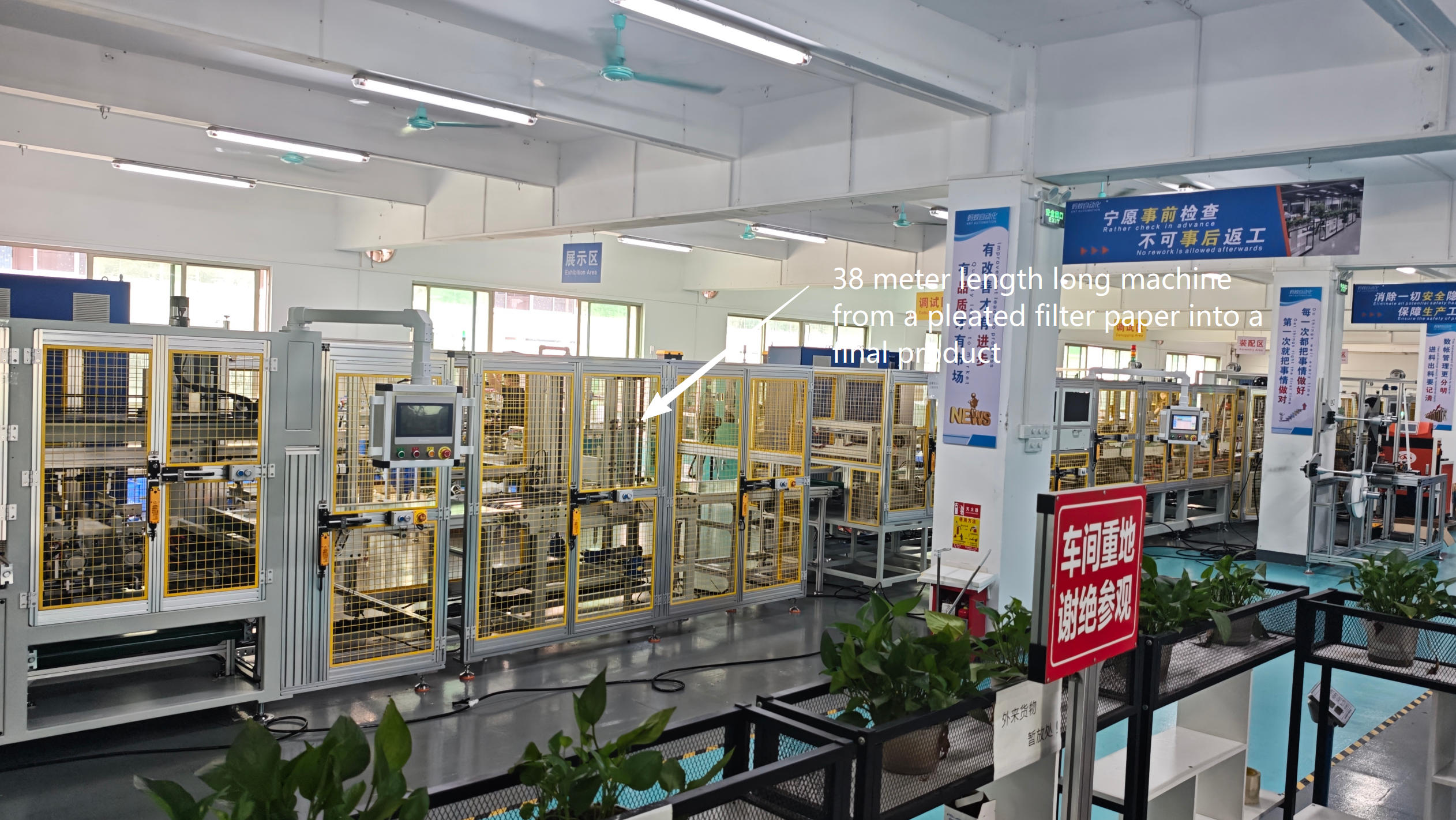

1.4 38m Long Integrated machine with full procesing Raw Material to Finished Product Directly

Our standard fully automatic automotive cabin air filter production line reaches 38 meters long, realizing complete continuous production without separate machine transfer, saving workshop space and handling labor for mass production.

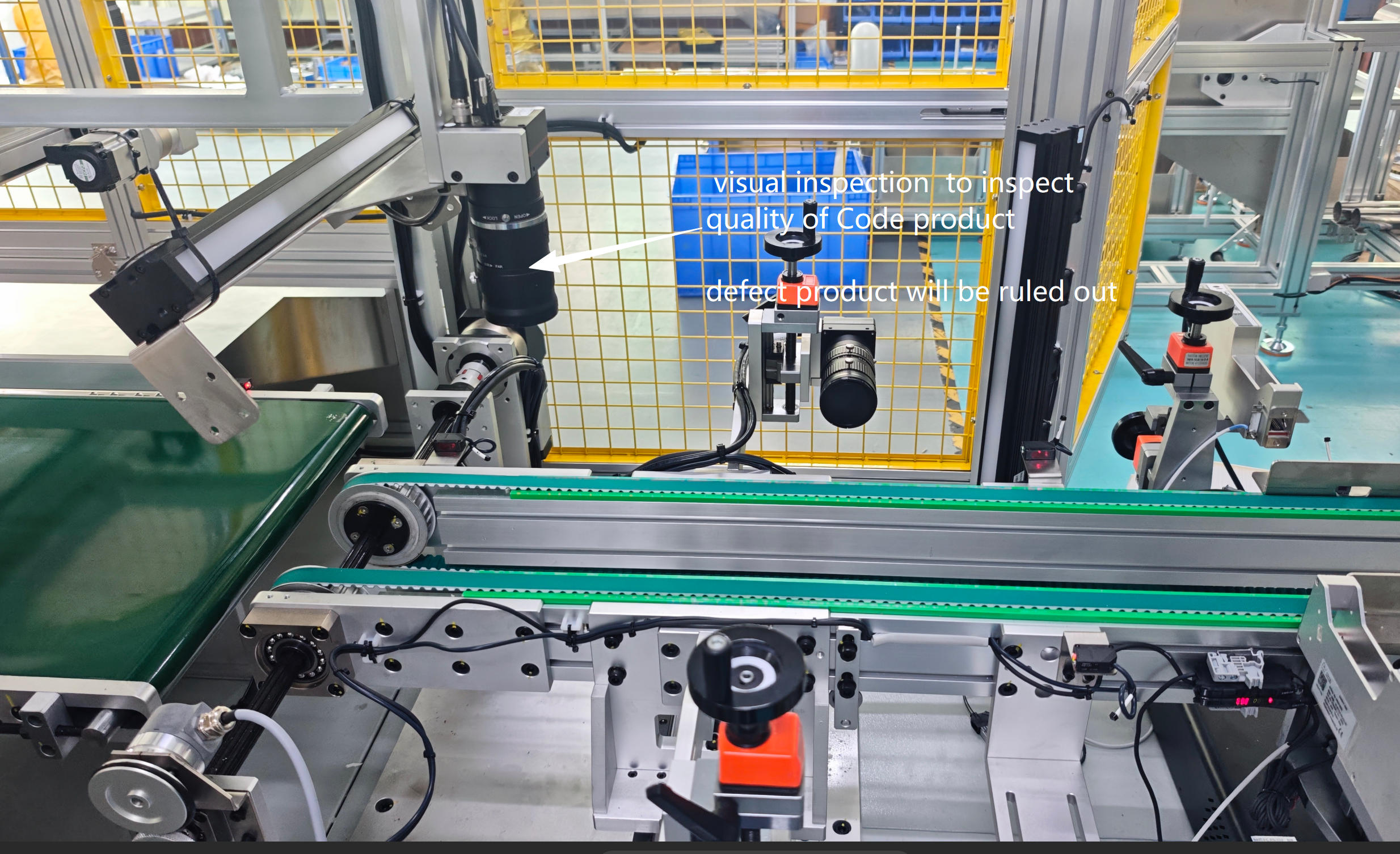

1.5 AI Visual Inspection & Automatic Defect Rejection

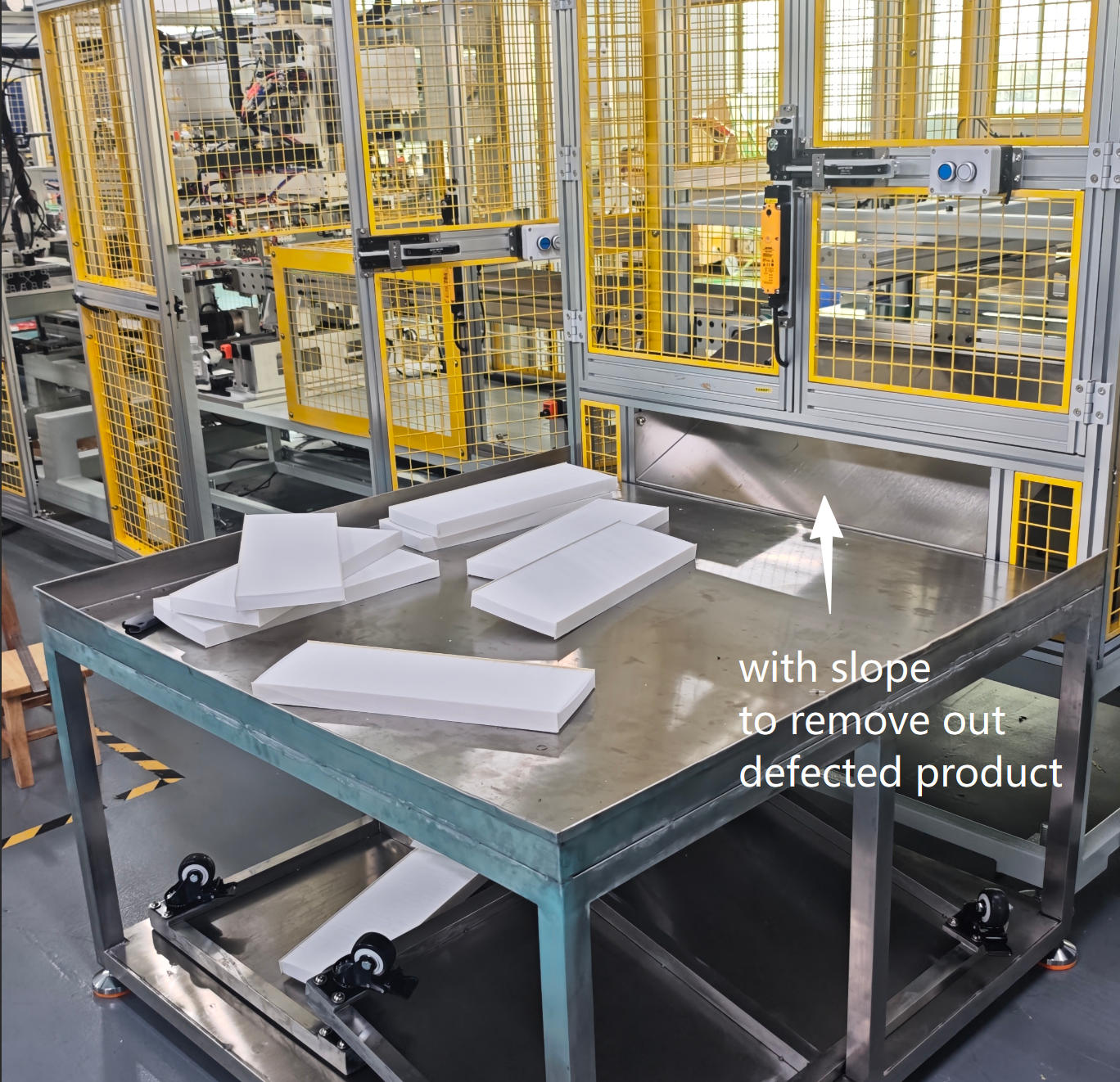

As a vision inspection cabin filter automated production line, industrial cameras are installed online to detect defects like uneven pleats, bad bonding, wrong dimension and glue leakage. Defective filters will slide down through a slope platform for collection automatically, guarantee consistent high quality of finished goods.

2. Complete Automatic Production Workflow of Auto Cabin Filter Manufacturing Line

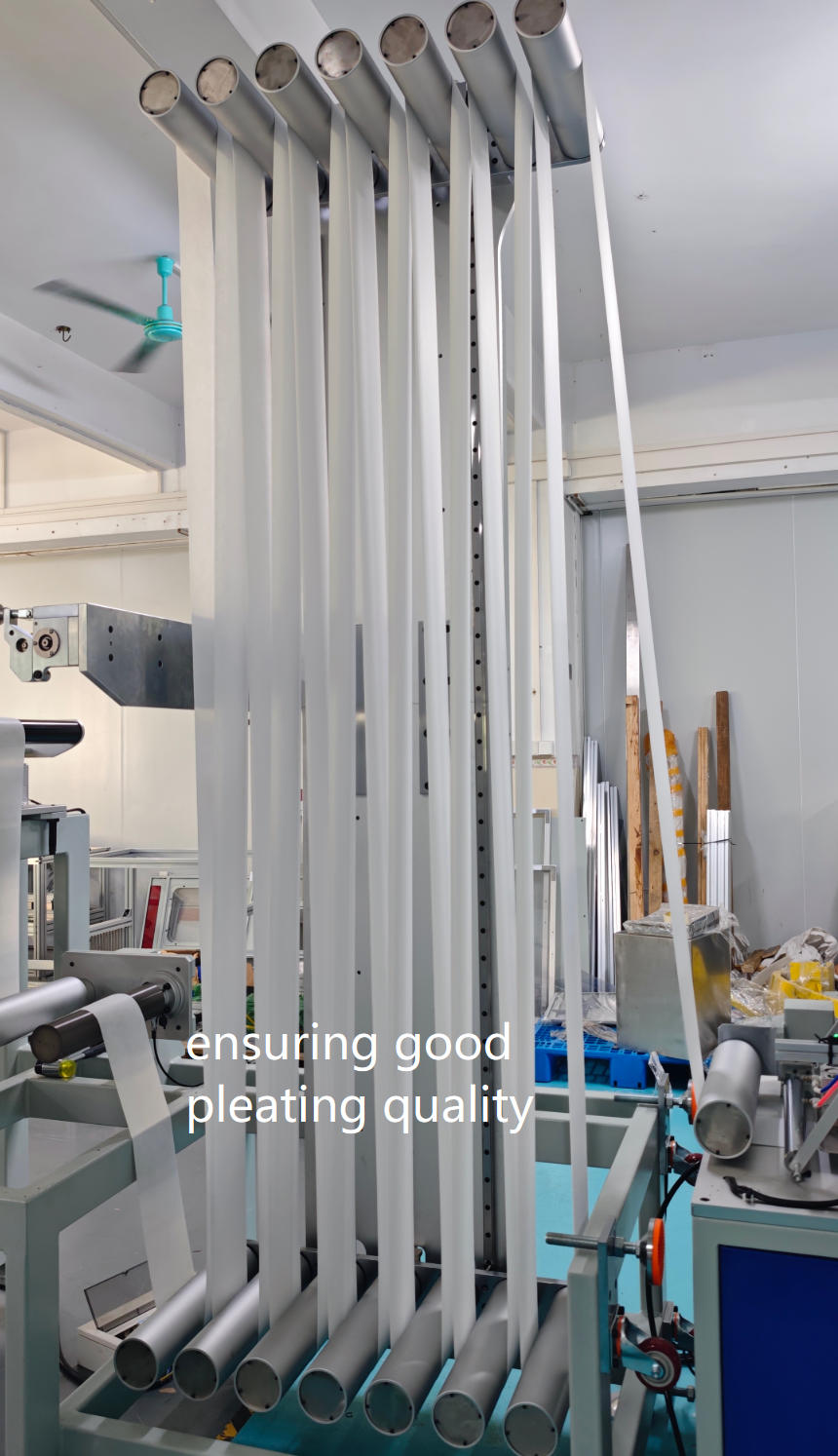

2.1 Filter Paper Unwinding & Flattening

Multi-group parallel rollers deliver filter paper evenly to avoid stretching or skew, lay a solid foundation for uniform pleating on this full automatic car air filter pleating bonding line.

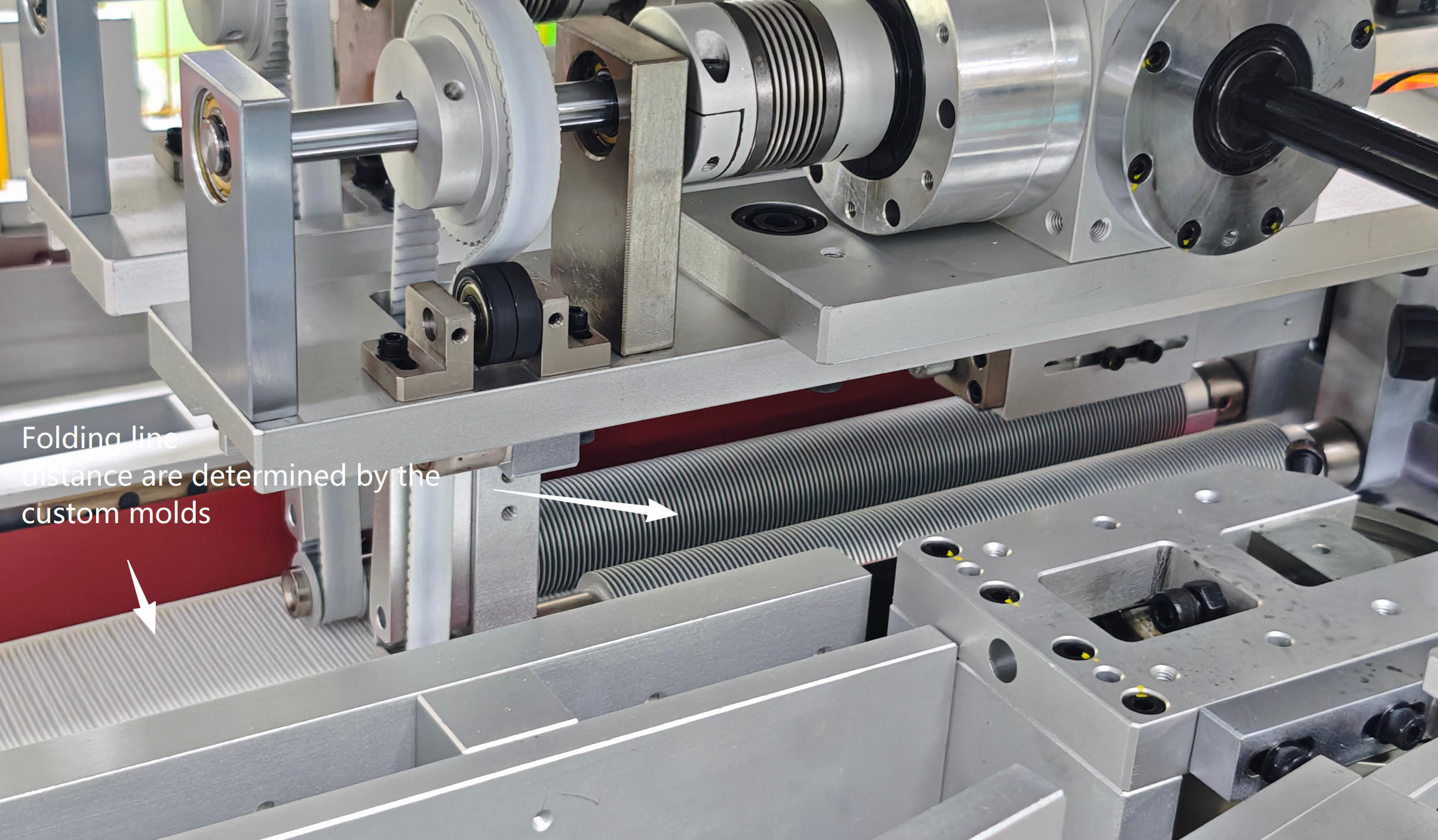

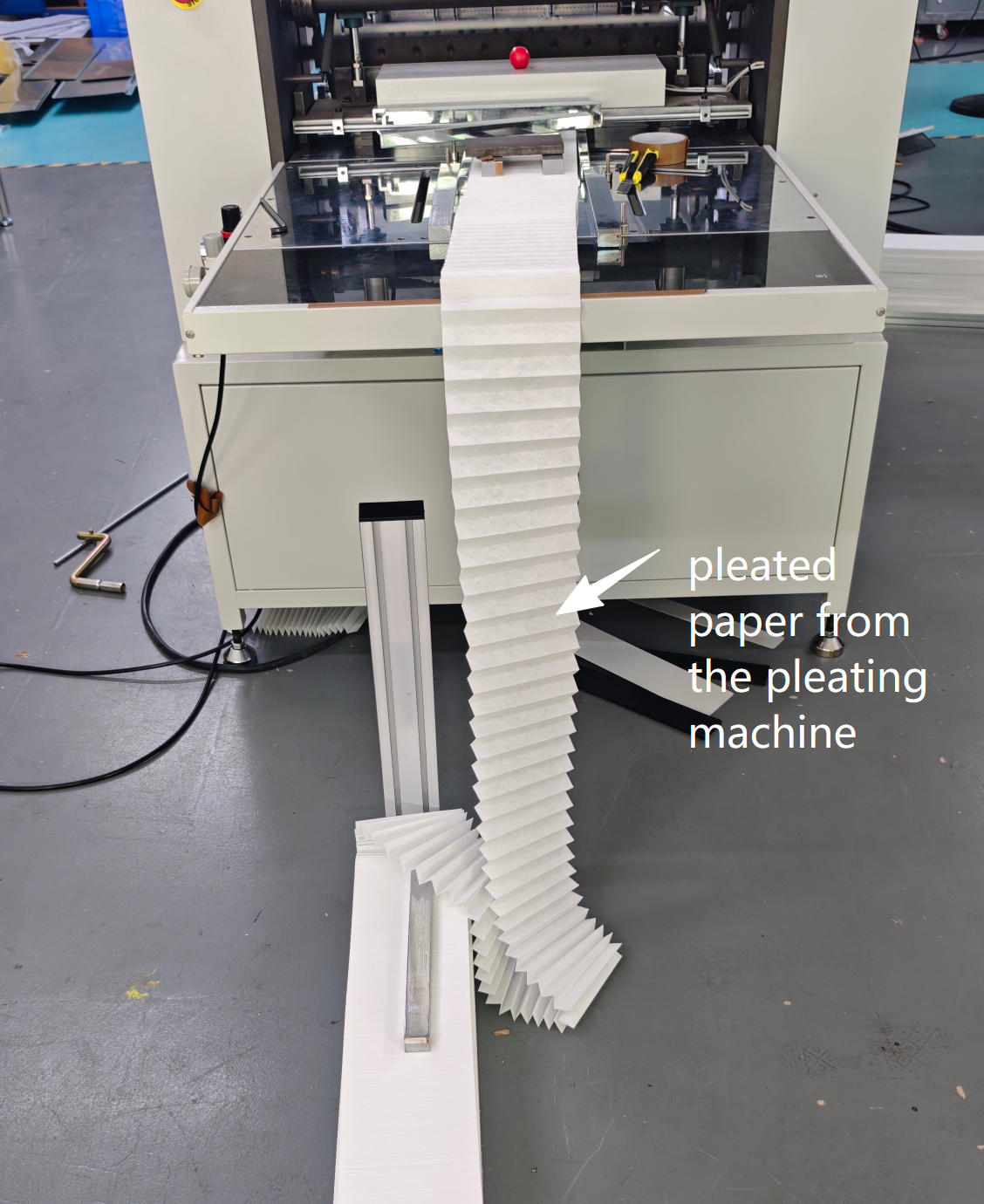

2.2 Precise Pleating with Custom Molds

Replaceable custom molds fix consistent pleat distance, servo feeding rollers ensure unified pleat height to maximize filter area, fit multi-spec automotive cabin filter flexible production.

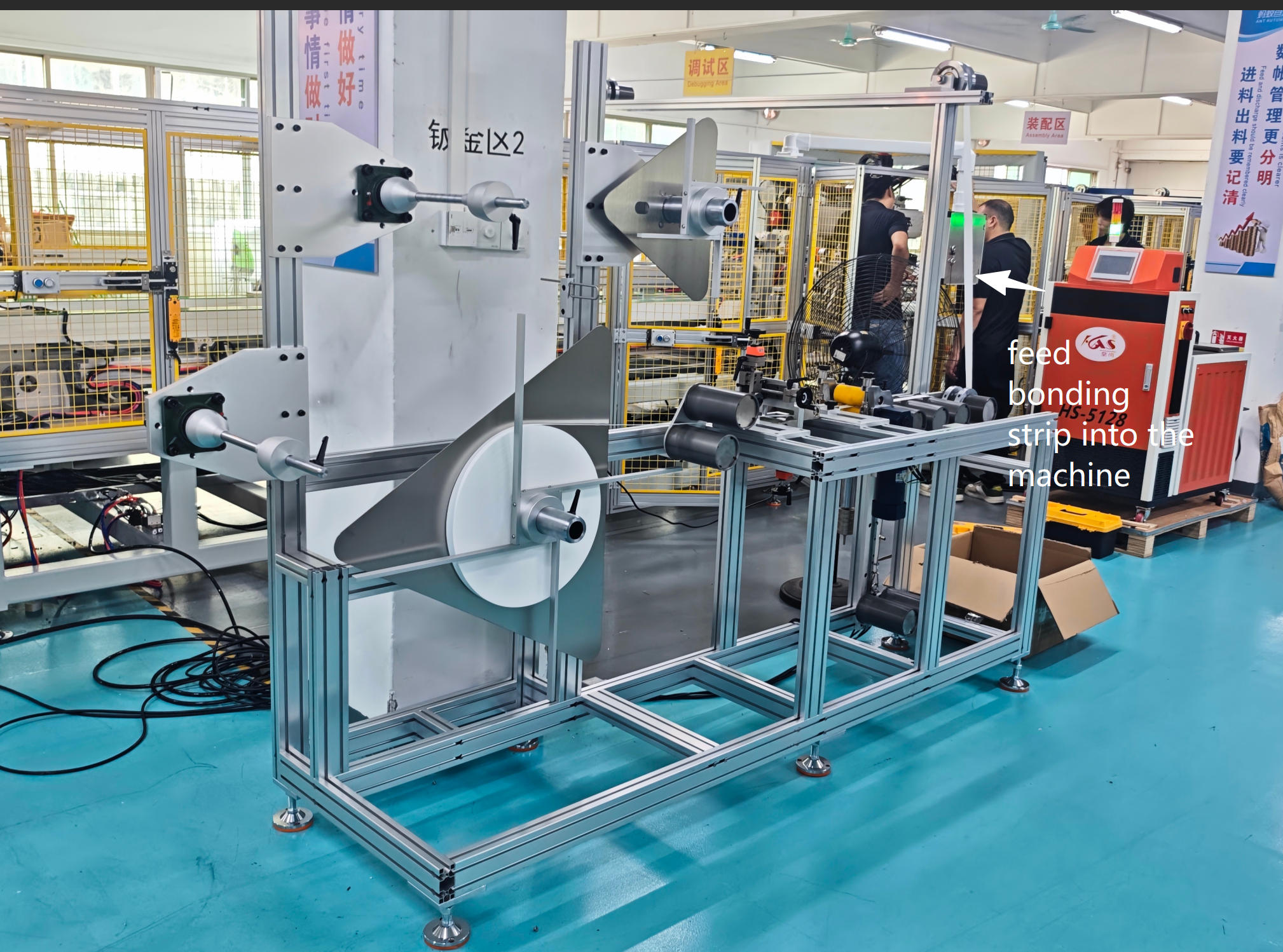

2.3 Automatic Bonding Strip Feeding on Both Sides

Two independent strip holders feed adhesive strips synchronously, finish two-side hot melt bonding of pleated filter paper on this auto filter mass production equipment.

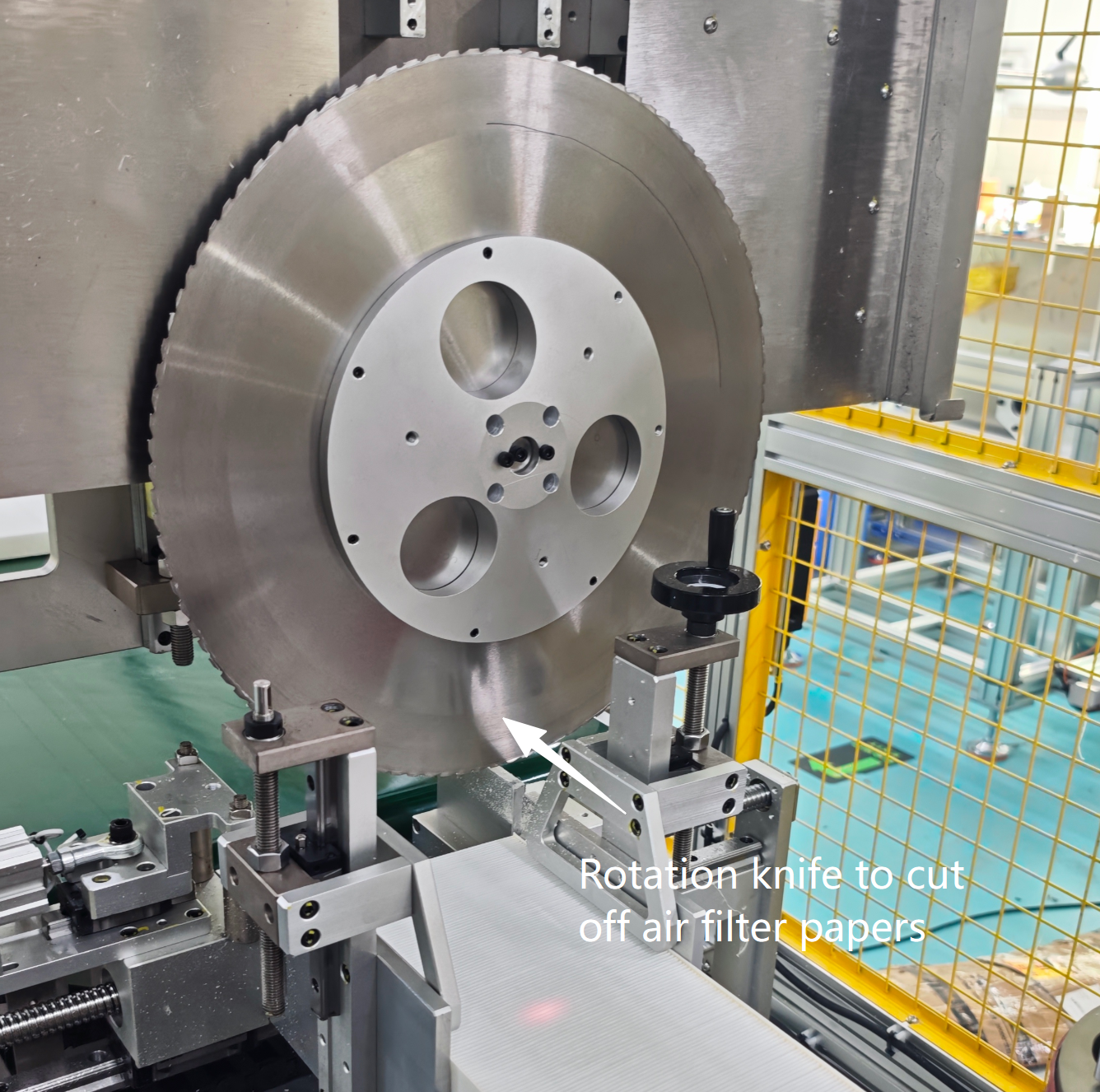

2.4 Hard Alloy Rotary Cutter for Fixed-Length Cutting

Large rotary saw cuts bonded filter blanks with smooth edges and tiny dimensional tolerance, supporting fast switching of different filter sizes for passenger cars, EVs and commercial vehicles.

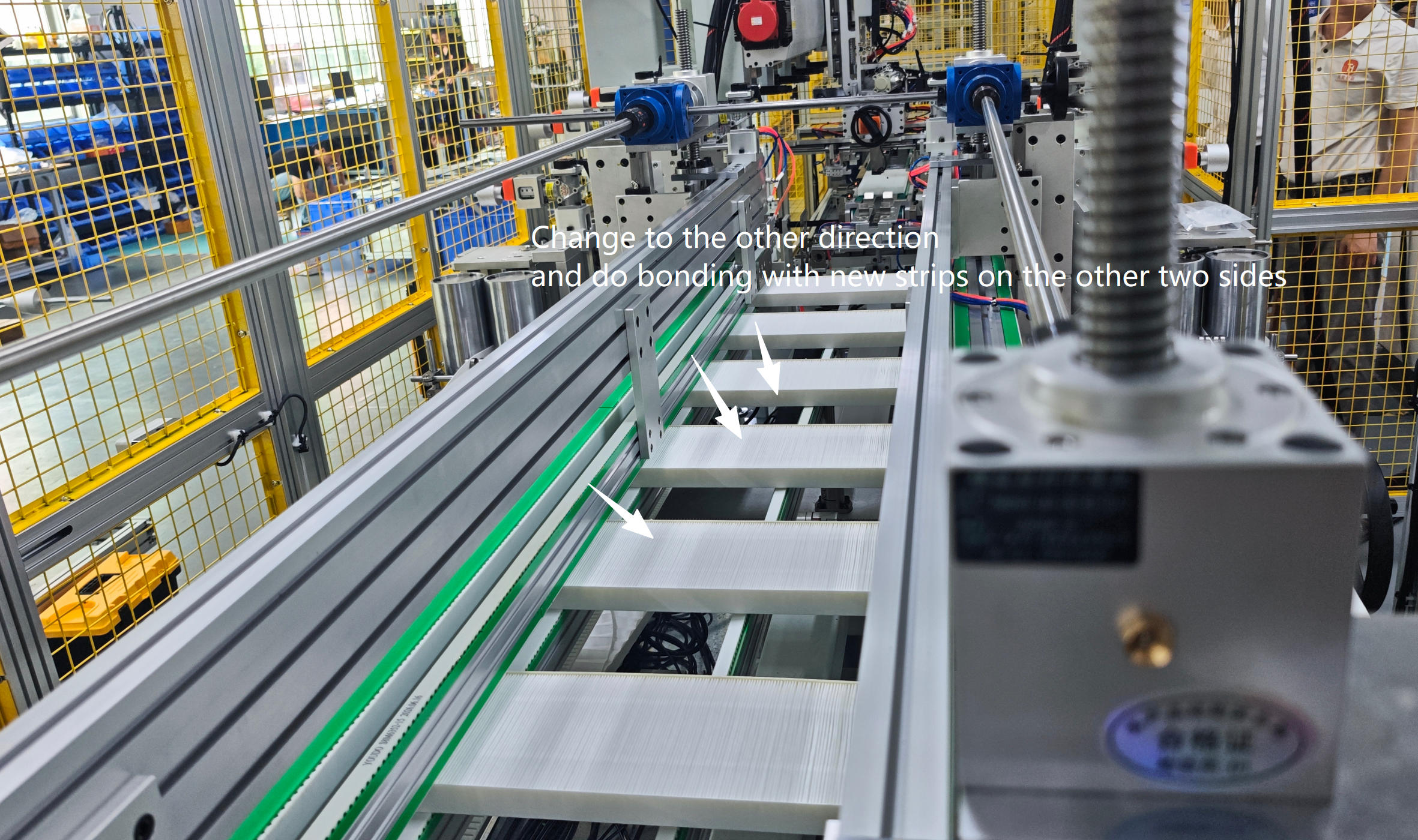

2.5 Automatic Workpiece Turning & The Other Two-Side Bonding

Conveyor belt turns filter blanks automatically to complete the remaining two-side sealing, realizing full four-edge bonding without manual flipping.

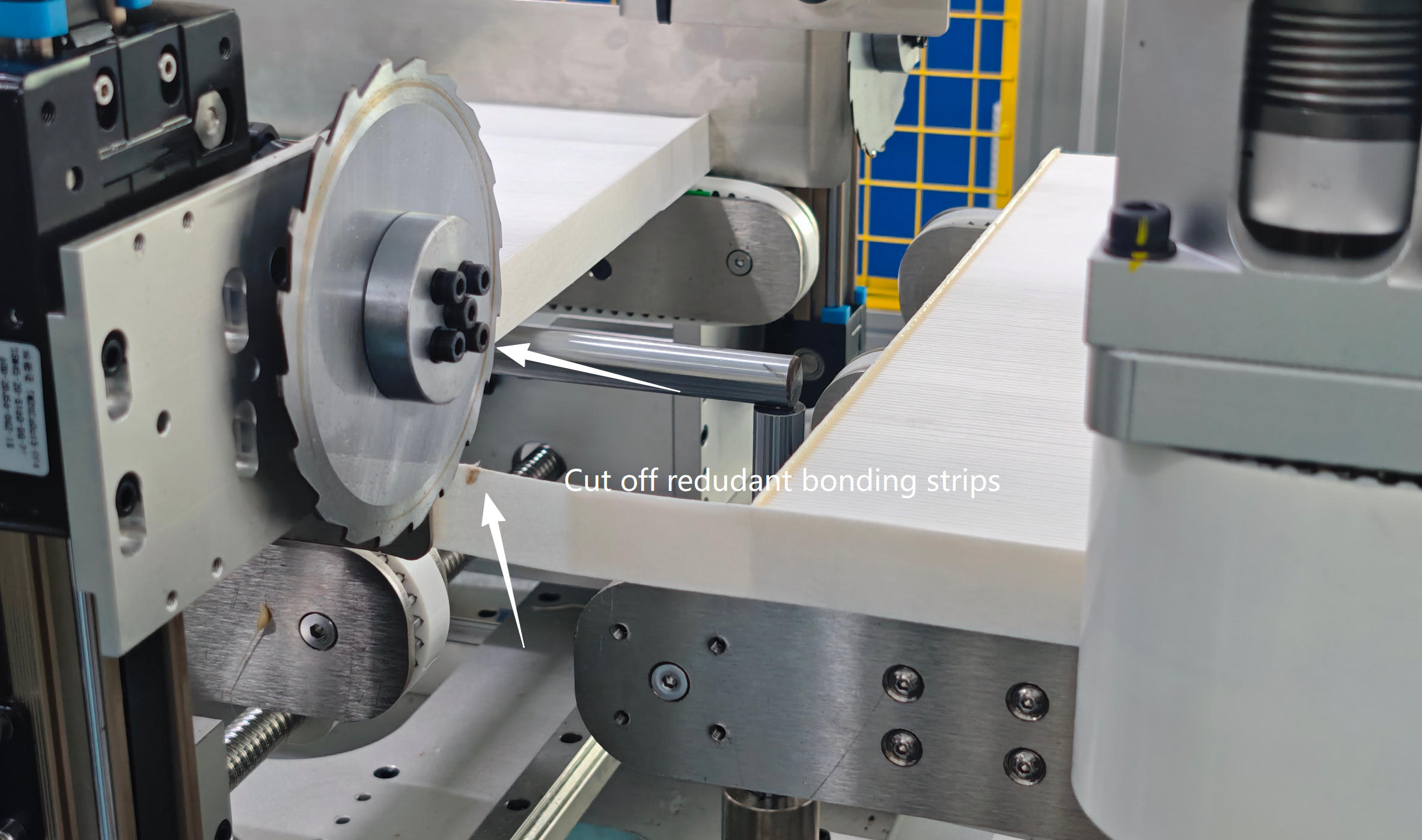

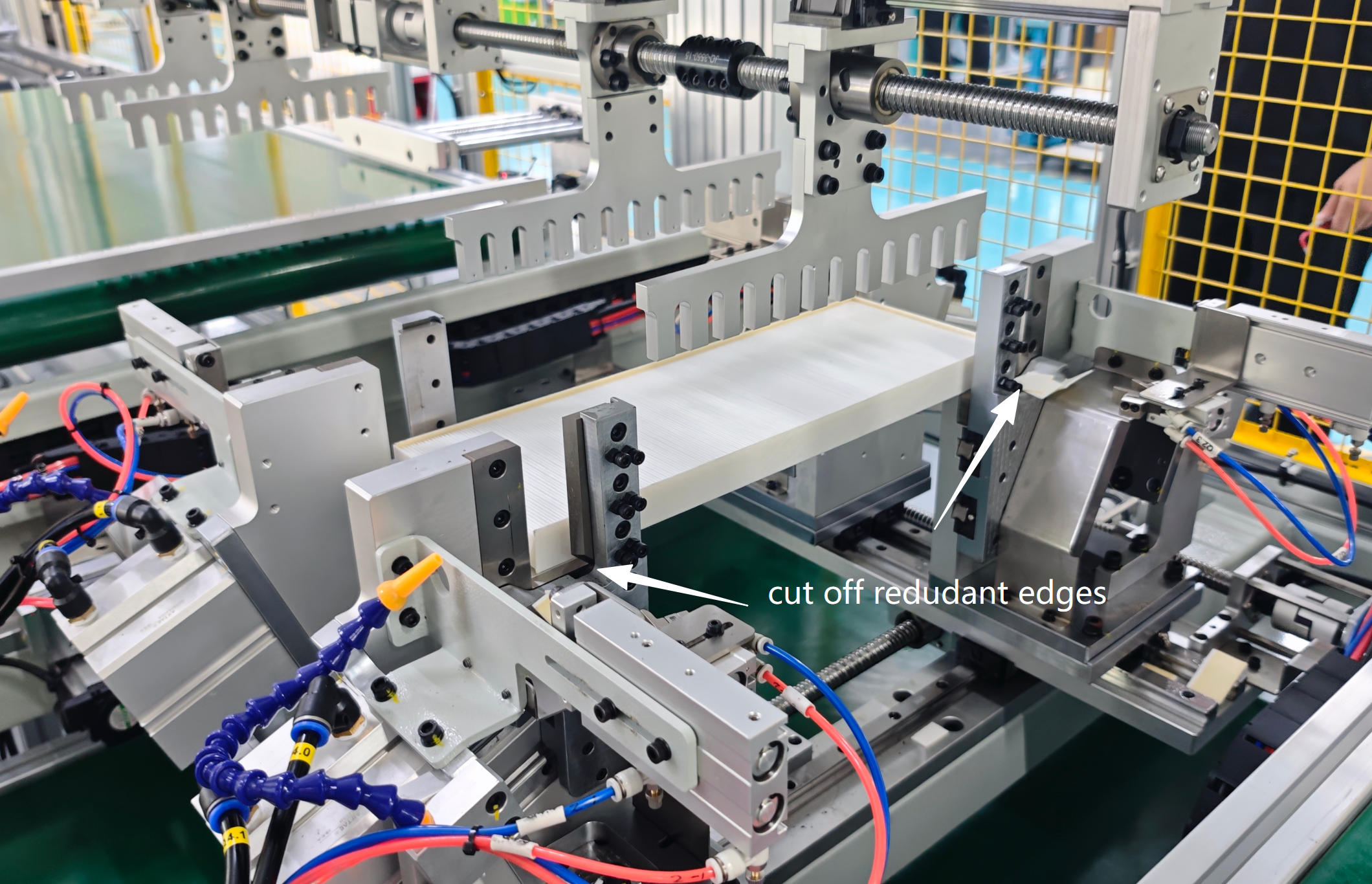

2.6 Dual Trimming Process to Remove Excess Material

First rotary knife cuts redundant adhesive strips; secondary trimming polishes all edges for neat appearance, meeting vehicle assembly standards of OEM cabin air filter full production line.

3. Main Benefits Compared With Traditional Semi-Automatic Filter Making Machines

3.1 Labor Cost Reduction: Only 1 operator is required for the whole fully automatic automotive cabin air filter production line, vs 6-8 workers for separated semi-auto machines.

3.2 Uniform Product Quality: Servo molds, auto bonding and AI inspection eliminate human errors, compliant with OEM and export quality standards of auto cabin filter manufacturing line.

3.3 Higher Production Capacity: Continuous pipeline operation without waiting or manual transfer, greatly improve daily output for bulk orders.

3.4 Flexible Multi-Size Production: Switch molds & PLC parameters quickly to produce cabin filters for passenger cars, EVs and commercial vehicles, this multi-spec automotive cabin filter flexible production line supports diversified orders.

3.5 Lower Material Waste: Precise glue control and online pre-inspection reduce waste of filter paper and adhesive strips on this hot melt bonding car filter making production line.

Conclusion

In the competitive global auto aftermarket, integrated automatic production equipment has become a key advantage for filter factories to win orders. Our 38-meter Fully Automatic Automotive Cabin Air Filter Production Line, also known as auto cabin filter manufacturing line, covers the full manufacturing process from raw paper to finished filters, integrating safety protection, intelligent segmented control, precision forming and online quality inspection. This full automatic car air filter pleating bonding line supports both mass standardized production and flexible multi-size manufacturing, the ideal equipment choice for auto filter manufacturers.

FAQ

Q1: What sizes of cabin air filters can this fully automatic automotive cabin air filter production line produce?

A: It supports all rectangular flat cabin filters for passenger cars, EVs and commercial vehicles. You can switch filter sizes quickly by replacing pleating molds and adjusting PLC parameters on this multi-spec automotive cabin filter flexible production line.

Q2: How many workers are needed to run the full auto cabin filter manufacturing line?

A: 5-6 operator are enough for raw material loading and finished product collection. All pleating, bonding, cutting and inspection steps of this unmanned car cabin filter assembly line are fully automatic.

Q3: Does this vision inspection cabin filter automated production line meet industrial safety standards?

A: Full yellow safety mesh guard + dual mechanical-electrical safety interlock locks. The whole line stops once any door opens, passing domestic safety audit and overseas CE certification as high safety auto air filter fabrication line.

Q4: Can we customize the line length or processing stations of this auto filter mass production equipment?

A: The standard fully automatic automotive cabin air filter production line is 38 meters. We support non-standard customization: add or remove pleating, trimming or vision inspection stations based on your workshop space and capacity demand.

Q5: Is the hot melt bonding car filter making production line easy to maintain?

A: Each station has independent PLC to display fault codes directly. Key transmission, cutting and hot melt parts adopt standard spare parts. We provide on-site installation, commissioning and operation training for after-sales service.
