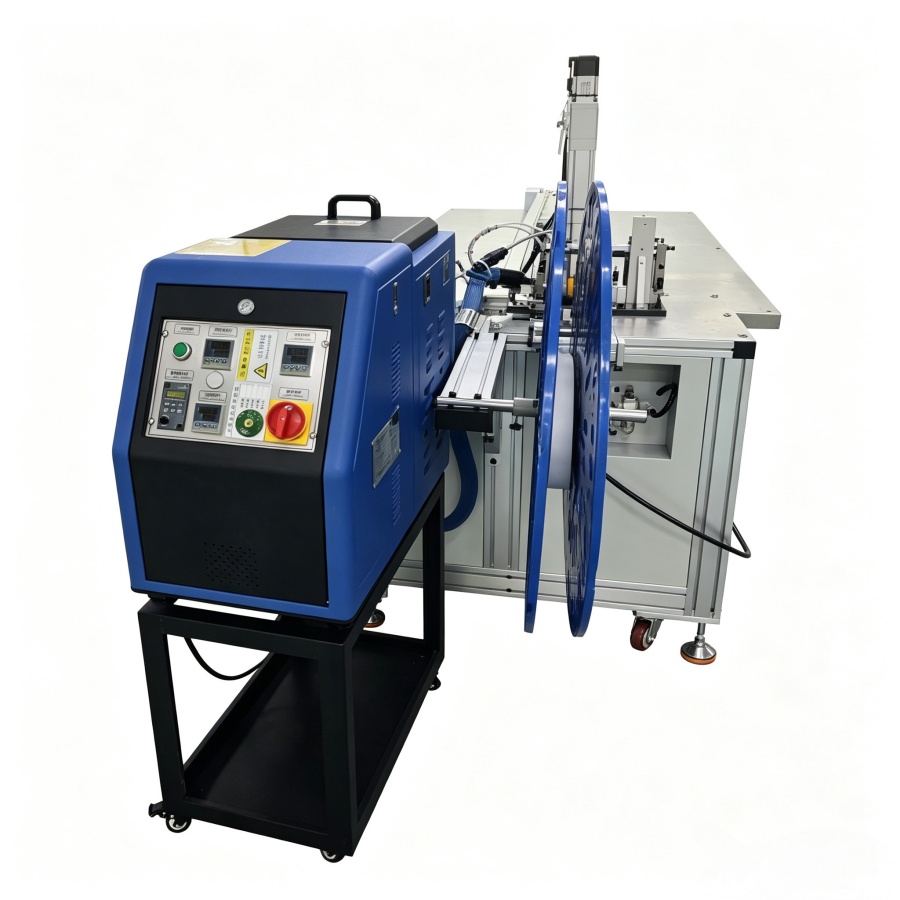

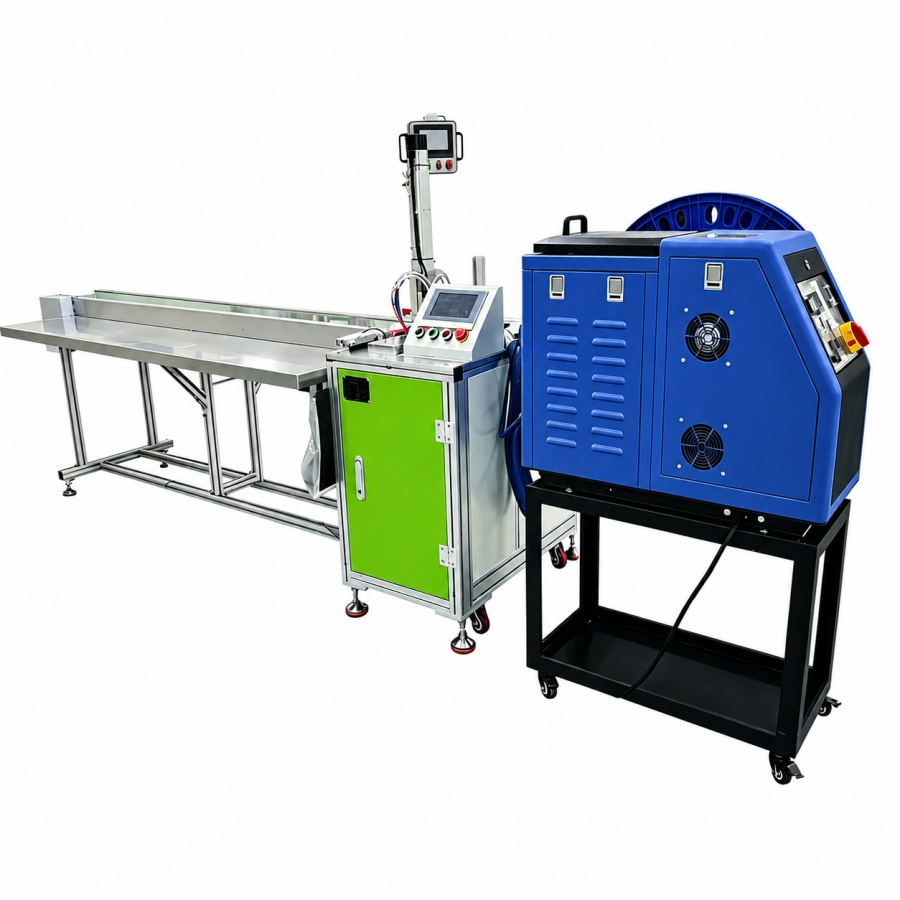

Auto Air Filter Semi-Automatic Strip Glue Scraping & Cutting Machine MY-LW-10

Auto Air Filter Semi-Automatic Strip Glue Scraping & Cutting Machine

(MY-LW-10)

Product Description

The Auto Air Filter Semi-automatic Strip Glue Scraping & Cutting Machine (MY-LW-10) is professionally developed for the production of automotive cabin air filters. It realizes automatic feeding of filter edge strips, uniform hot melt adhesive coating, precise fixed-length cutting, and finished glued strip collection via a discharge conveyor system, completing full-process automatic processing for filter bonding accessories.

Compared with traditional manual gluing and cutting processes, the Auto Air Filter Semi-automatic  strip Glue Scraping & Cutting Machine greatly boosts production efficiency. It delivers consistent gluing quality, high cutting dimensional accuracy, reduced material waste, and lower labor input. It is highly applicable for manufacturers engaged in automotive cabin air filter production and other products requiring glued bonding strips.

Youtube Working video

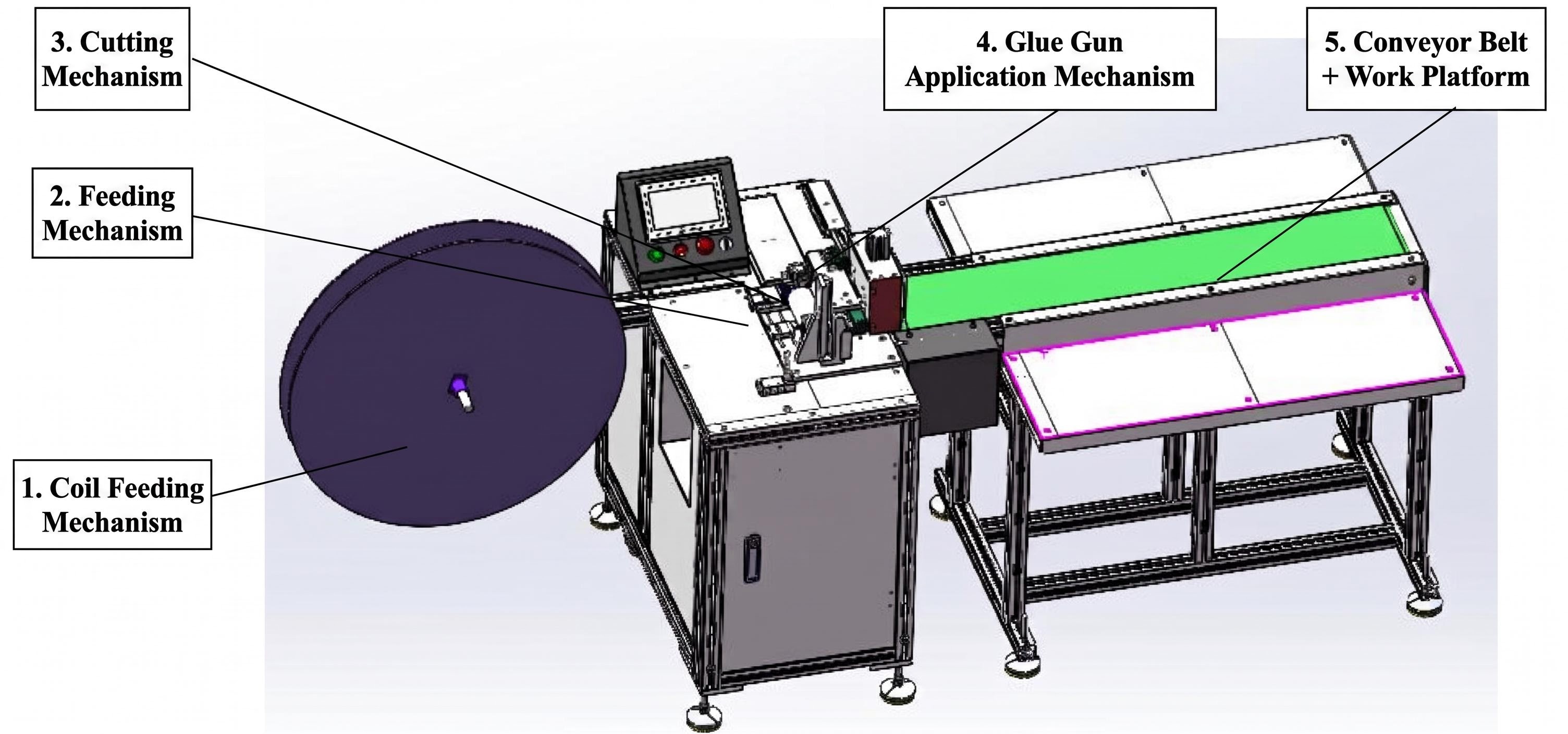

The machine integrates a touch screen control system, automatic feeding mechanism, hot melt gluing unit, precision cutting mechanism and conveyor collection system. Operators can flexibly adjust core parameters including feeding speed, cutting length, overall operating speed, glue output and glue temperature.

Featuring a compact structure, stable operation and user-friendly control, the Auto Air Filter Semi-automatic Glue Scraping & Cutting Machine provides an efficient, reliable and cost-effective automatic solution for the preparation of glued filter bonding strips. This Semi-auto Filter Edge Strip Gluing & Cutting Machine is tailor-made for standardized filter strip processing and mass production.

This  Auto Air Filter Semi-automatic Glue Scraping & Cutting Machine is an ideal choice for automotive cabin air filter manufacturers, specifically for the pre-processing of glued sealing strips and bonding accessories for filter assembly. As a high-precision Automotive Cabin Filter Glue Coating Cutting Machine, it enables enterprises to achieve higher production speed, more uniform adhesive coating quality and improved overall product yield.

Product Parameters

Product Name: Auto Air Filter Semi-Automatic Strip Glue Scraping & Cutting Machine

Model: MY-LW-10

Compatible Edge Strip Dimensions: Length: 100–700 mm; Width: 10–60 mm; Thickness: 0.5–5 mm

Gluing Speed: 60–100 mm/s (2–4 pieces per minute, subject to actual coating length)

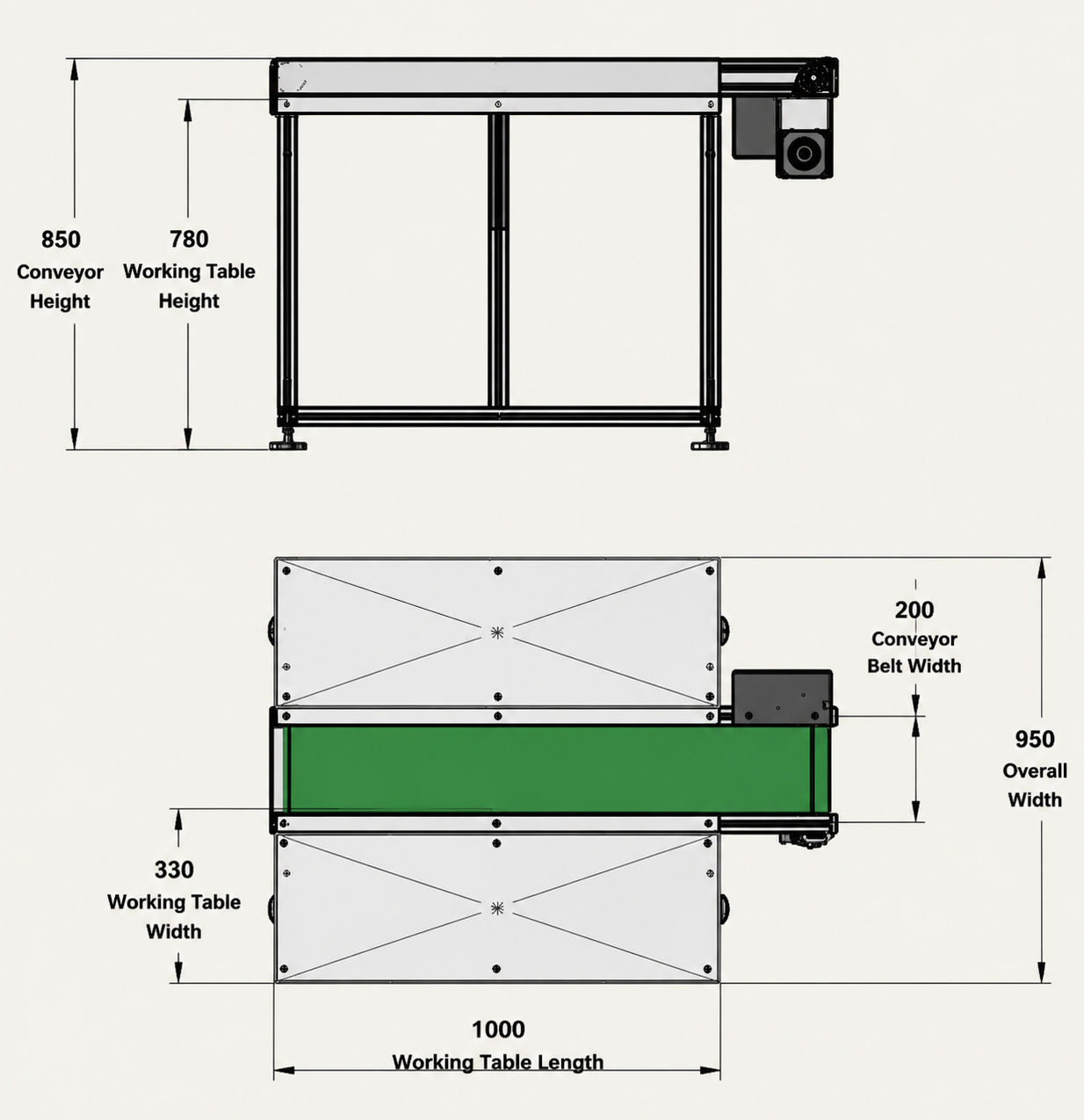

Overall Dimensions: L × W × H = 2600 × 950 × 1200 mm; Worktable Height: 780 mm

Electrical Specifications: Rated Voltage: 220 V, 50–60 Hz

Equipment Power: 1 kW

Gluing System Power (10L): 3 kW

Working Air Pressure: ≥ 0.5 MPa

Equipment Weight: 200 kg

Required Operators: 1–2 persons

Control System: Touch screen + dual foot switches + external emergency stop button

Work Platform Dimensions: Length: 1 m, Width: 0.33 m

Spare Parts Brands: PLC: Hechuan; Motor: Domestic brand; Cylinder: Xingchen; Touchscreen: Fanyi

Product Advantages

1. The Auto Air Filter Semi-automatic Strip Glue Scraping & Cutting Machine realizes automatic hot melt adhesive coating, fixed-length cutting and conveyor automatic collection for filter bonding strips. Reserved operating spaces on both sides of the worktable allow workers to quickly assemble glued strips with cabin air filters, streamlining the overall production process.As a professional Hot Melt Glue Strip Cutting Machine for Air Filter, it perfectly matches hot melt bonding requirements for filter accessories.

2. Ensures uniform hot melt adhesive coating on bonding strips and high-precision fixed-length cutting, effectively stabilizing product quality.

3. Greatly reduces labor dependence and saves production costs compared with traditional manual gluing and cutting operations.

Product Details

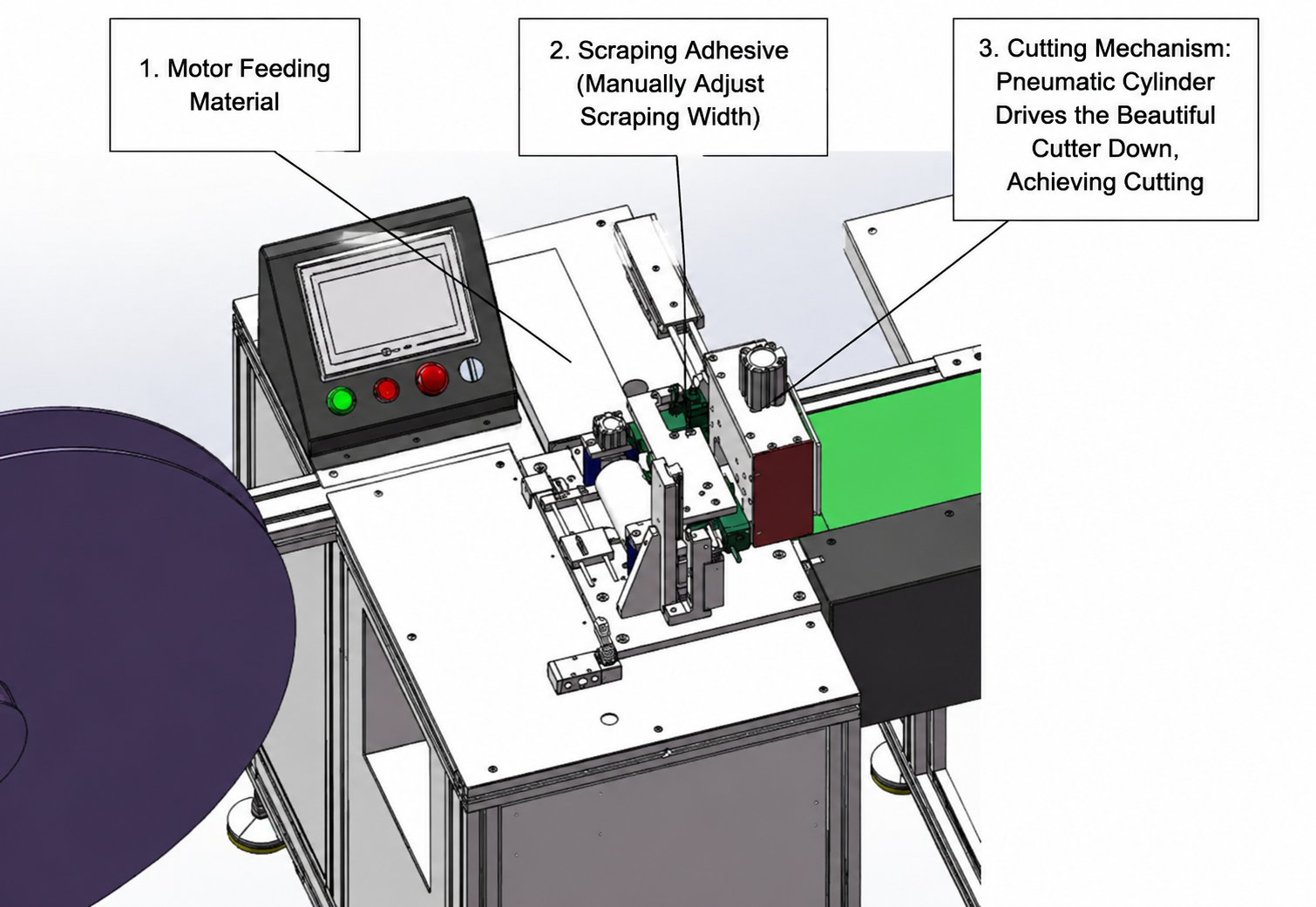

1. The equipment supports automatic feeding of bonding strips. The strips are evenly coated with hot melt adhesive by a scraping knife, cut to preset lengths, and finally collected by the discharge conveyor, realizing streamlined automatic processing.

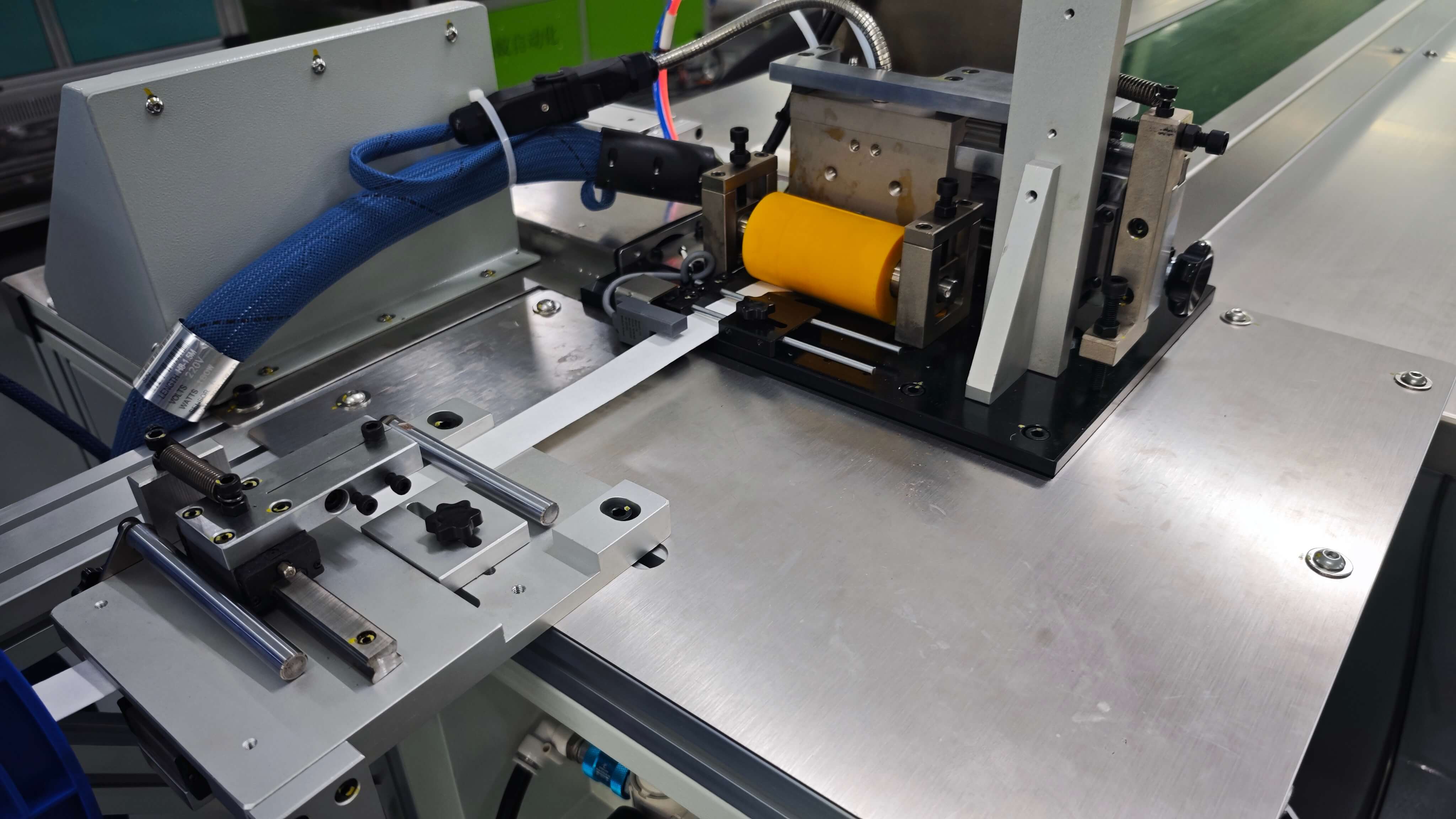

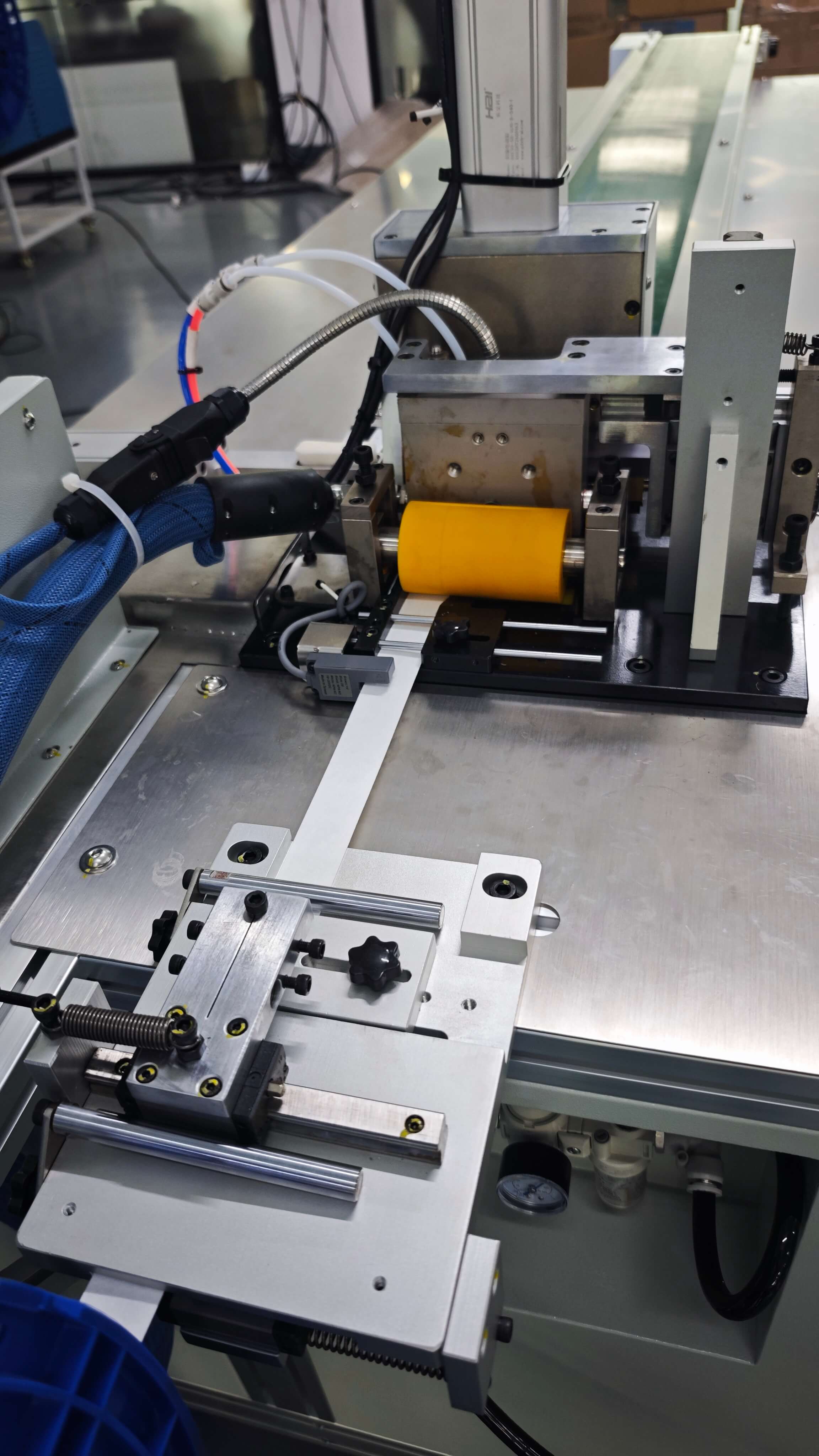

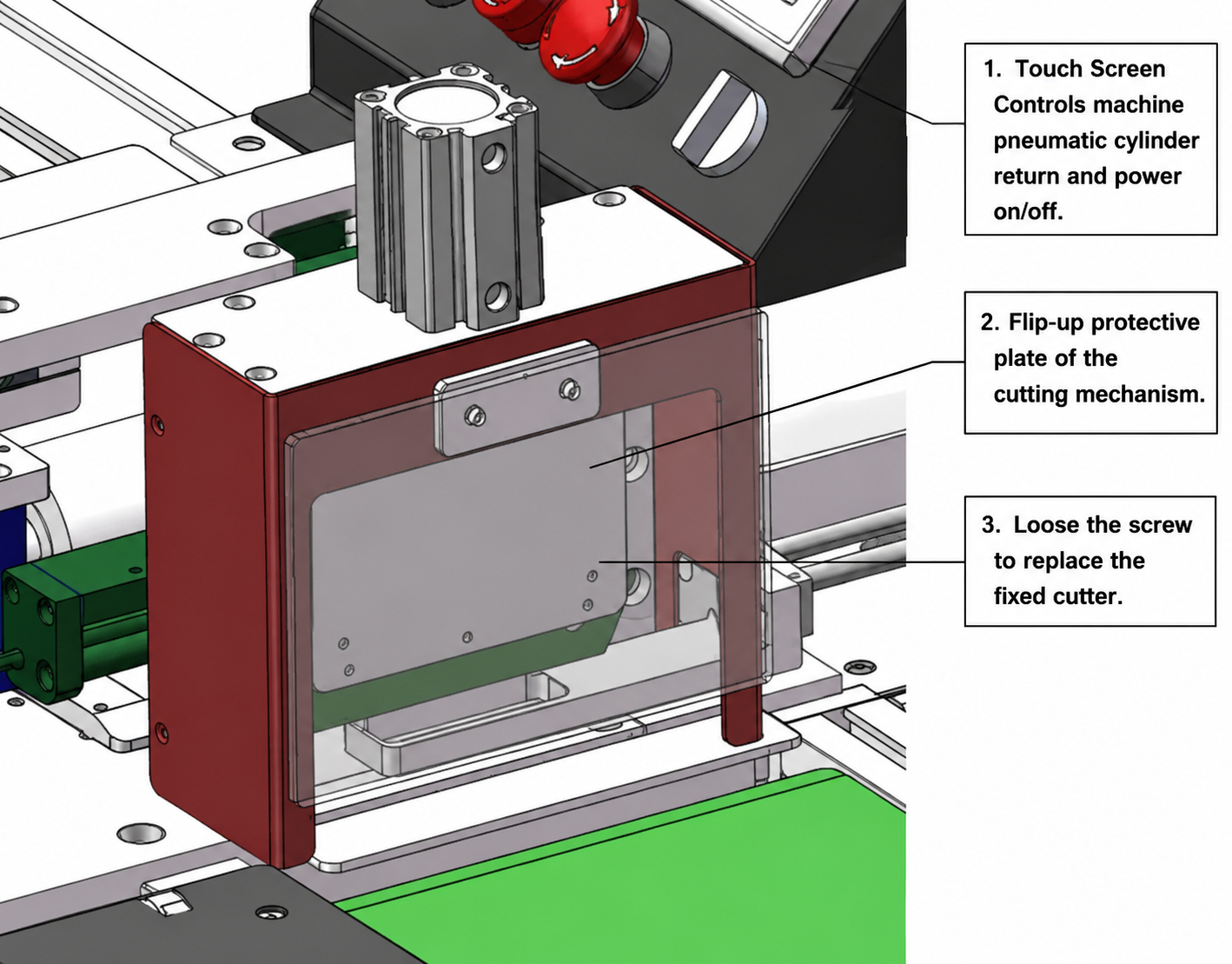

2. Equipped with a flip-type protective plate, the cutting knife can be replaced quickly by loosening the fixing screws, facilitating daily maintenance. A material detection sensor is installed to automatically stop the machine when materials are exhausted, avoiding idle operation and equipment loss.

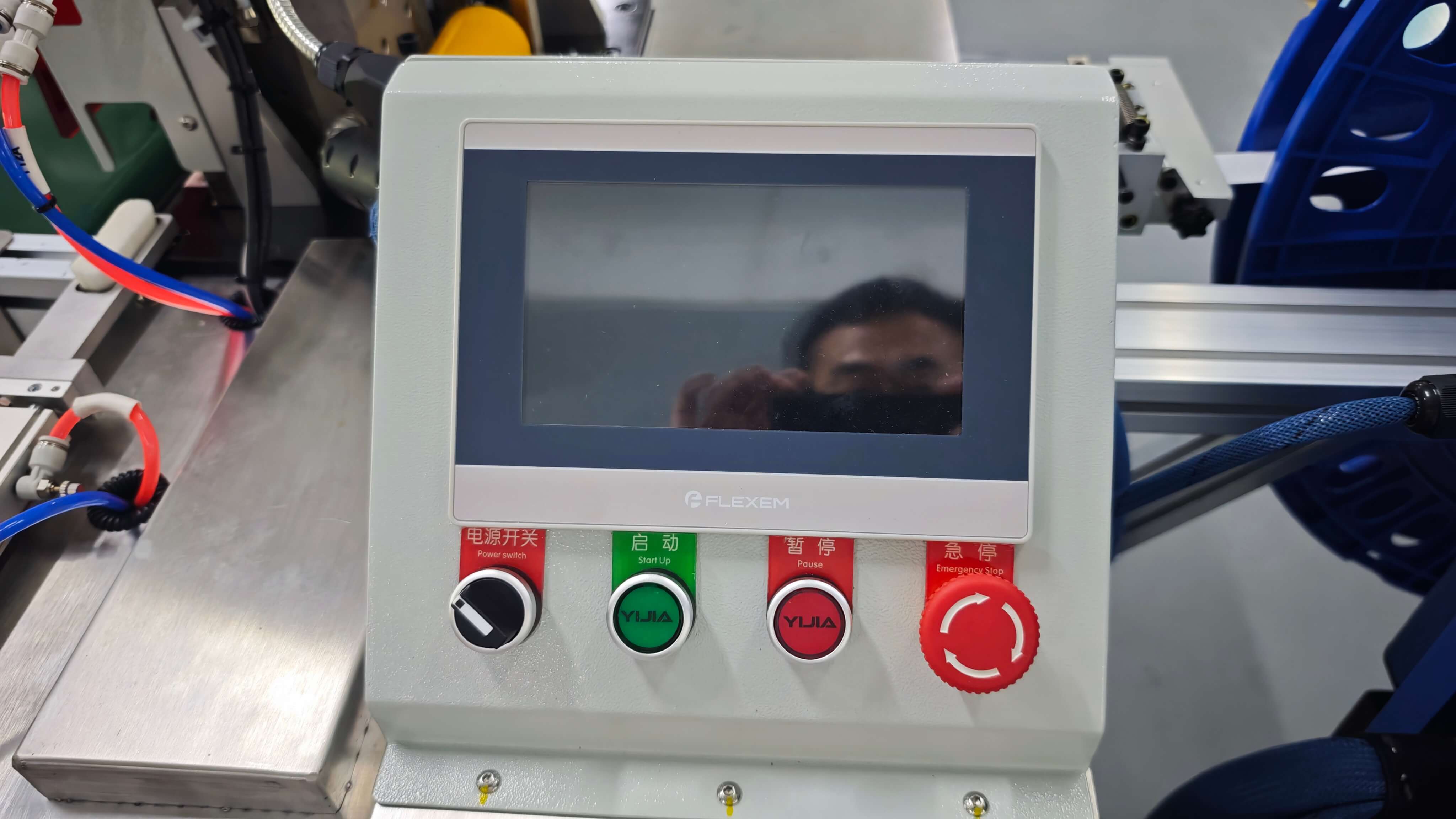

3. Adopts high-end Fanyi PLC touch screen, a top domestic brand. Operators can intuitively set and adjust key parameters such as bonding strip cutting length, feeding speed and overall machine operating speed for flexible production adaptation.

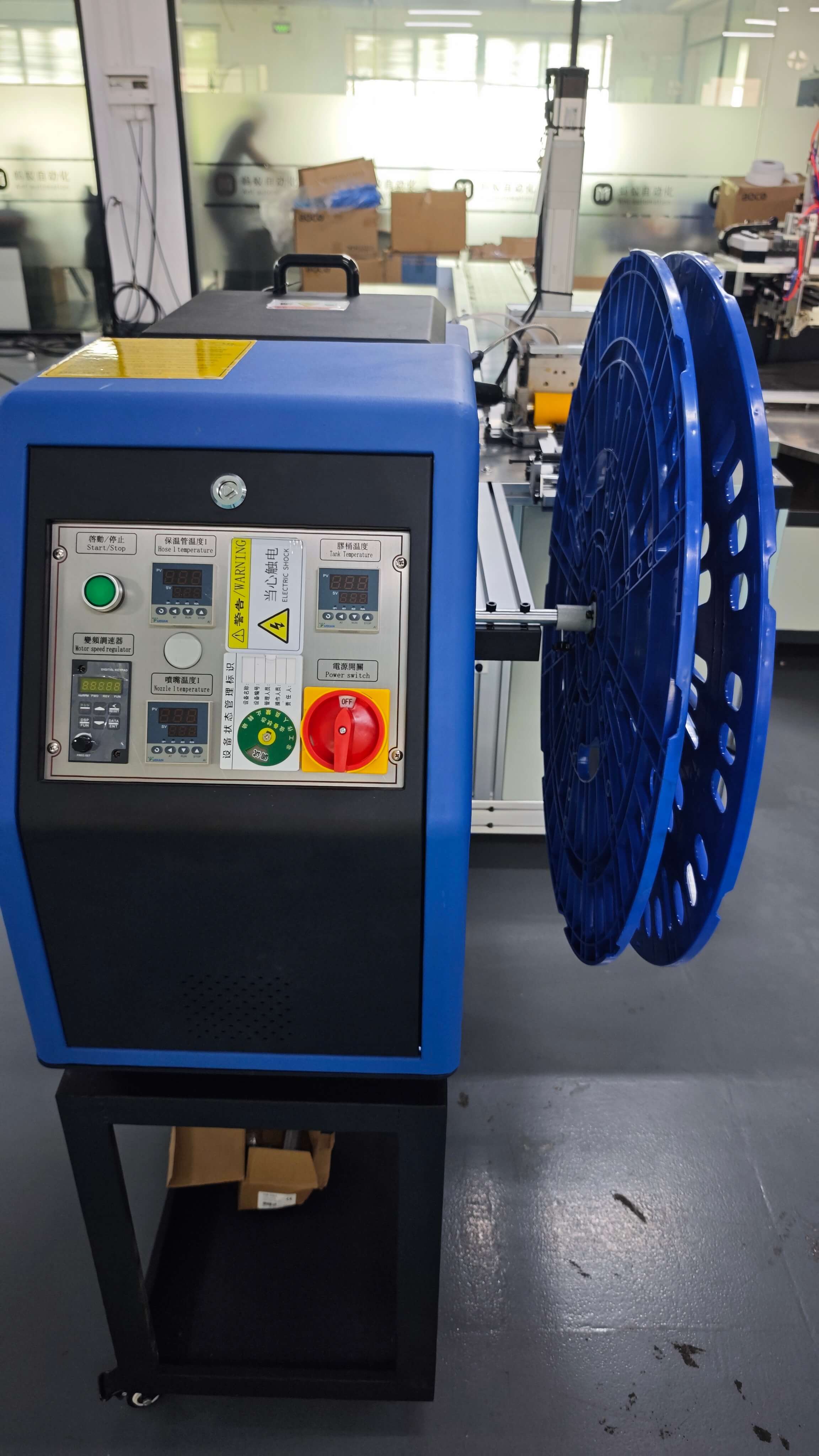

4. Equipped with a high-precision hot melt glue system, this professional Semi-auto Filter Edge Strip Gluing & Cutting Machine supports precise metered glue output control, which ensures uniform adhesive coating on bonding strips and minimizes glue waste. The glue output volume and heating temperature are adjustable with stable and consistent equipment operation performance.

FAQ

Q1: What is the Auto Air Filter Semi-automatic  Strip Glue Scraping & Cutting Machine used for?

A1: The Auto Air Filter Semi-automatic Glue Scraping & Cutting Machine is specially designed for the pre-processing of bonding strips and sealing strips for automotive cabin air filters. It completes automatic gluing, scraping, fixed-length cutting and material collection for filter edge strips. This  Hot Melt Glue Strip Cutting Machine for Air Filter is widely adopted in standardized filter production lines.

Q2: What are the size ranges of the compatible edge strips?

A2: The machine supports edge strips with a length of 100–700 mm, a width of 10–60 mm, and a thickness of 0.5–5 mm, covering most conventional sizes of automotive filter bonding strips.

Q3: What is the production efficiency of this equipment?

A3: The gluing speed is 60–100 mm/s, with an output of 2–4 pieces per minute. The actual production capacity depends on the customized cutting length of the strips, which is far more efficient than manual operation.

Q4: Can the glue output and glue temperature be adjusted freely?

A4: Yes. The high-precision hot melt glue system supports independent adjustment of glue output volume and heating temperature via the touch screen. It realizes quantitative gluing, ensures uniform coating and effectively reduces adhesive waste.

Q5: Is the machine easy to operate for new workers?

A5: Absolutely. It is equipped with a Fanyi brand PLC touch screen for intuitive parameter setting, matched with dual foot switches and an external emergency stop button. Only 1–2 operators are required for daily operation, with simple training required.

Q6: How to replace the cutting blade and maintain the machine?

A6: The cutting mechanism is designed with a flip-up protective plate. Operators can quickly replace the cutter by loosening the fixing screws, which greatly simplifies daily maintenance and blade replacement work.

Q7: Does the machine have automatic protection functions?

A7: Yes. It is equipped with a professional material detection sensor. The machine will automatically stop immediately when raw materials are exhausted, avoiding idle running, equipment wear and invalid energy consumption.

Q8: What are the power and air pressure requirements for equipment operation?

A8: The working voltage is 220 V, 50–60 Hz; the total equipment power is 1 kW, and the 10L gluing system power is 3 kW. The required working air pressure is ≥ 0.5 MPa, adapting to standard factory supporting conditions.

Q9: What are the core advantages compared with traditional manual gluing and cutting?

A9: It features uniform gluing effect and high-precision cutting size, stable product quality, greatly reduced material waste and labor costs, and realizes streamlined automatic production to improve overall yield.

Q10: What is the overall dimension and weight of the equipment?

A10: The overall dimension is 2600 × 950 × 1200 mm, the worktable height is 780 mm, and the equipment net weight is 200 kg. It has a compact structure and occupies less factory space.
